3.4 Keypad Operation
174 YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual

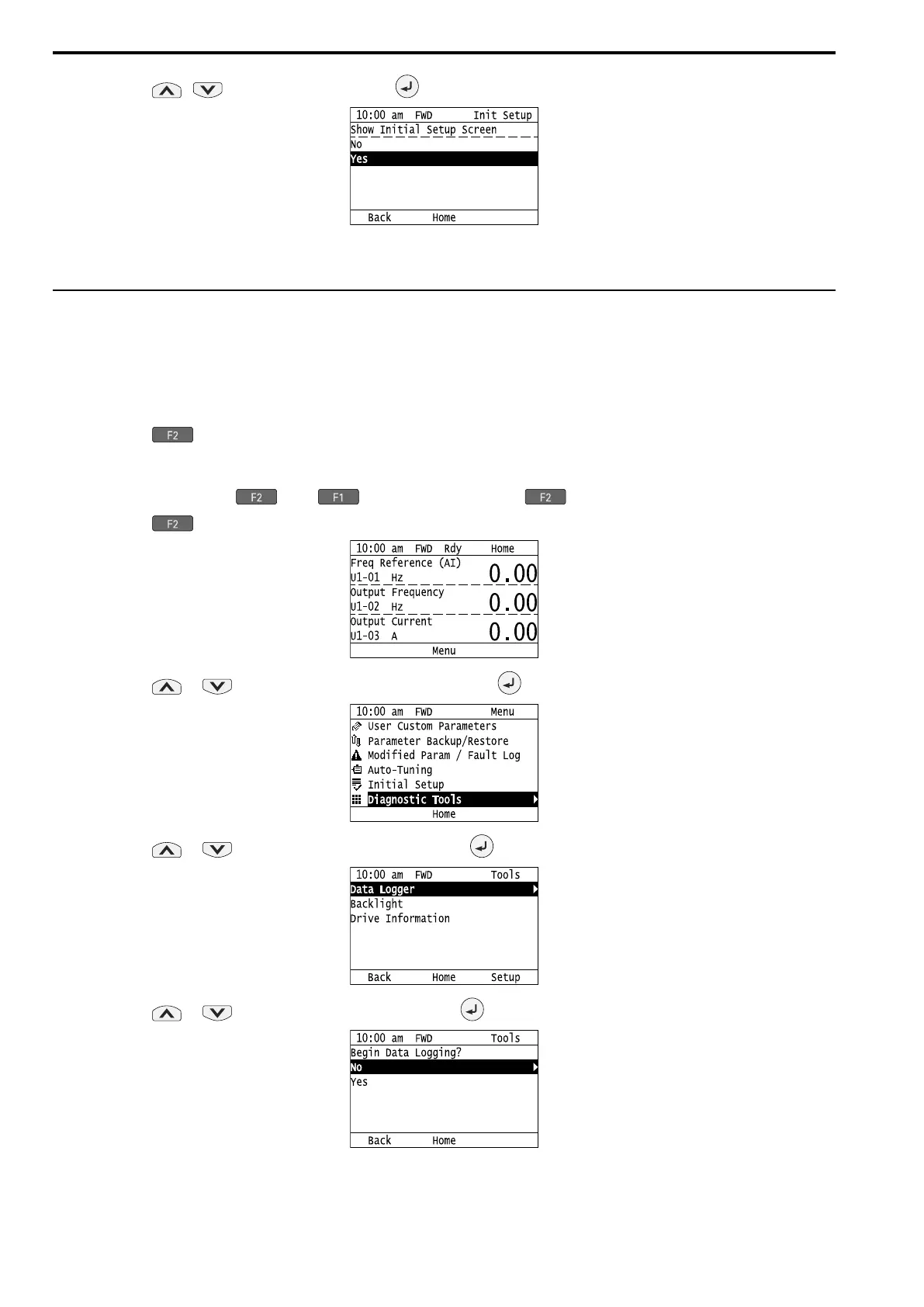

5. Push / to select [No], then push .
• [No]: The keypad will not show the Initial Setup Screen when the drive is energized.
• [Yes]: The keypad will show the Initial Setup Screen when the drive is energized.
◆ Start Data Logging
The data log function saves drive status information. Monitors Ux-xx are the source of log information. The
procedure in this section shows how to start logging data.
You can record a maximum of 10 monitors.
1. Make sure that a microSD card is inserted in the keypad.
2. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If [Home] is not shown on , push (Back) to show [Home] on .
3. Push (Menu).
4. Push or to select [Diagnostic Tools], then push .
5. Push or to select [Data Logger], then push .
6. Push or to select [Yes] or [No], then push .
• [Yes]: Data logging starts.
• [No]: Data logging will not start.
If the drive was logging data when you entered the command, the keypad look like this:
