YASKAWA CR700 Technical Manual

Parameter Details
11
11.8 H: Terminal Functions
YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual 723
A - H2-30
[Comparator 2 On-Delay Time]
B - H2-31
[Comparator 2 Off-Delay Time]

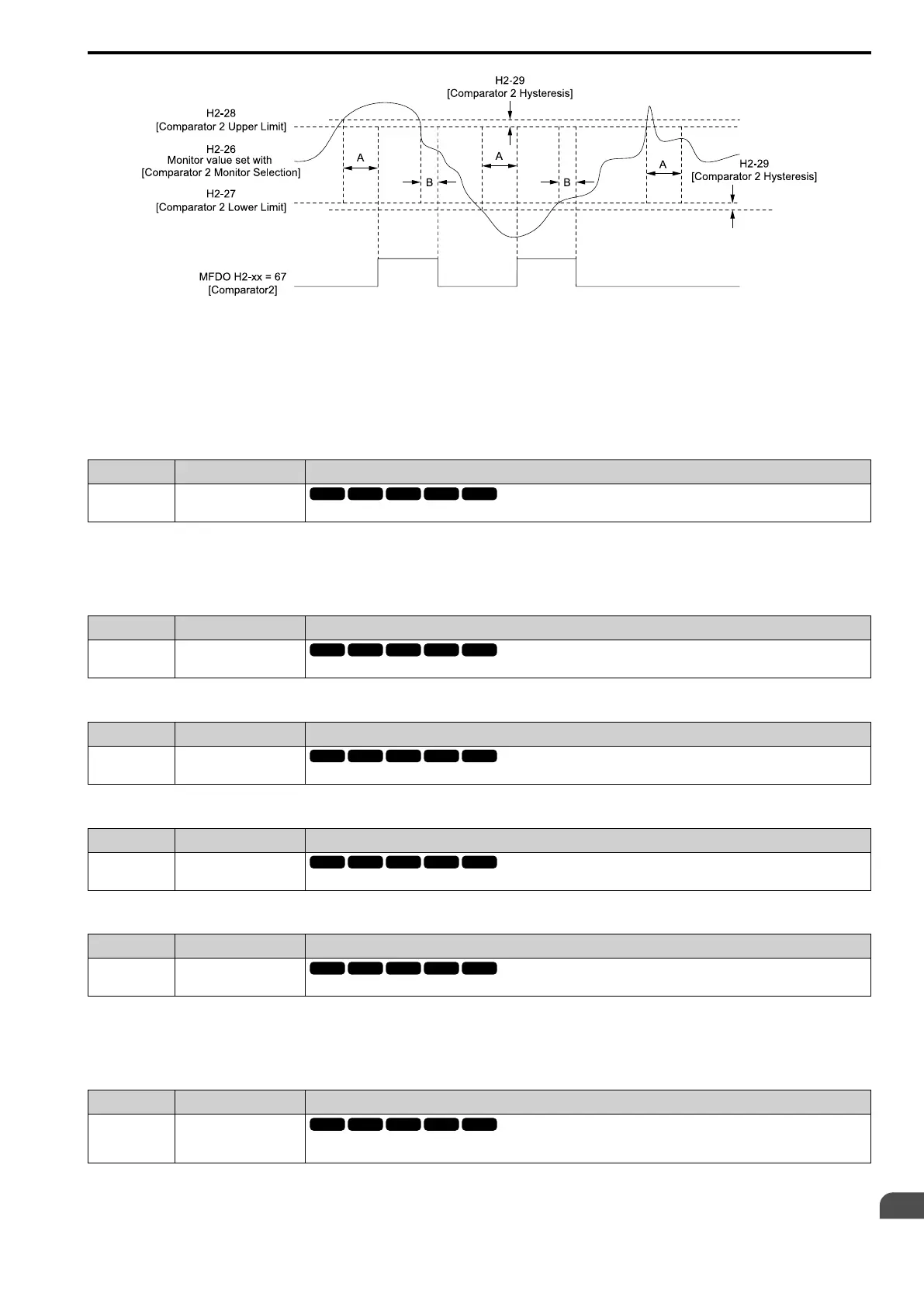

Figure 11.70 Comparator 2 Output Time Chart
Note:
The drive compares the monitors set with H2-26 as absolute values.
■ 69: External Power 24V Supply
Setting Value Function Description
69 External Power 24V Supply
The terminal activates when there is an external 24V power supply between terminals PS-AC.
ON : The external 24V power supply is supplying power.
OFF : The external 24V power supply is not supplying power.
■ 6A: Data Logger Error
Setting Value Function Description
6A Data Logger Error
The terminal activates when the drive detects a LoG [Com Error / Abnormal SD card].
■ B1: DC Injection Braking at Start
Setting Value Function Description
B1 DC Injection Braking at
Start
The terminal activates when the motor is started and during DC Injection Braking.
■ B2: DC Injection Braking at Stop
Setting Value Function Description
B2 DC Injection Braking at
Stop
The terminal activates when the motor is stopped and during DC Injection Braking.
■ B3: Motor 3 Selection
Setting Value Function Description
B3 Motor 3 Selection
The terminal activates when you select motor 3.
ON : Motor 3 Selection
OFF : Motor 1 or Motor 2 Selection
■ 100 to 1FF: Inverse output of 0 to FF
Setting Value Function Description
100 - 1FF Inverse Output of 0 to FF
Causes inverse output of the function for the selected MFDO. Uses the last two digits of 1xx to select which function to
inversely output.
For example, set H2-xx = 10E to generate inverse output of E [Fault].
V/f
CL-V/f
OLV
CLV
AOLV
V/f
CL-V/f
OLV
CLV
AOLV
V/f
CL-V/f
OLV
CLV
AOLV
V/f
CL-V/f
OLV
CLV
AOLV
V/f
CL-V/f
OLV
CLV
AOLV
V/f
CL-V/f
OLV
CLV
AOLV
