YASKAWA NX100 Instructions

8.15 Numeric Key Customize Function
8-93

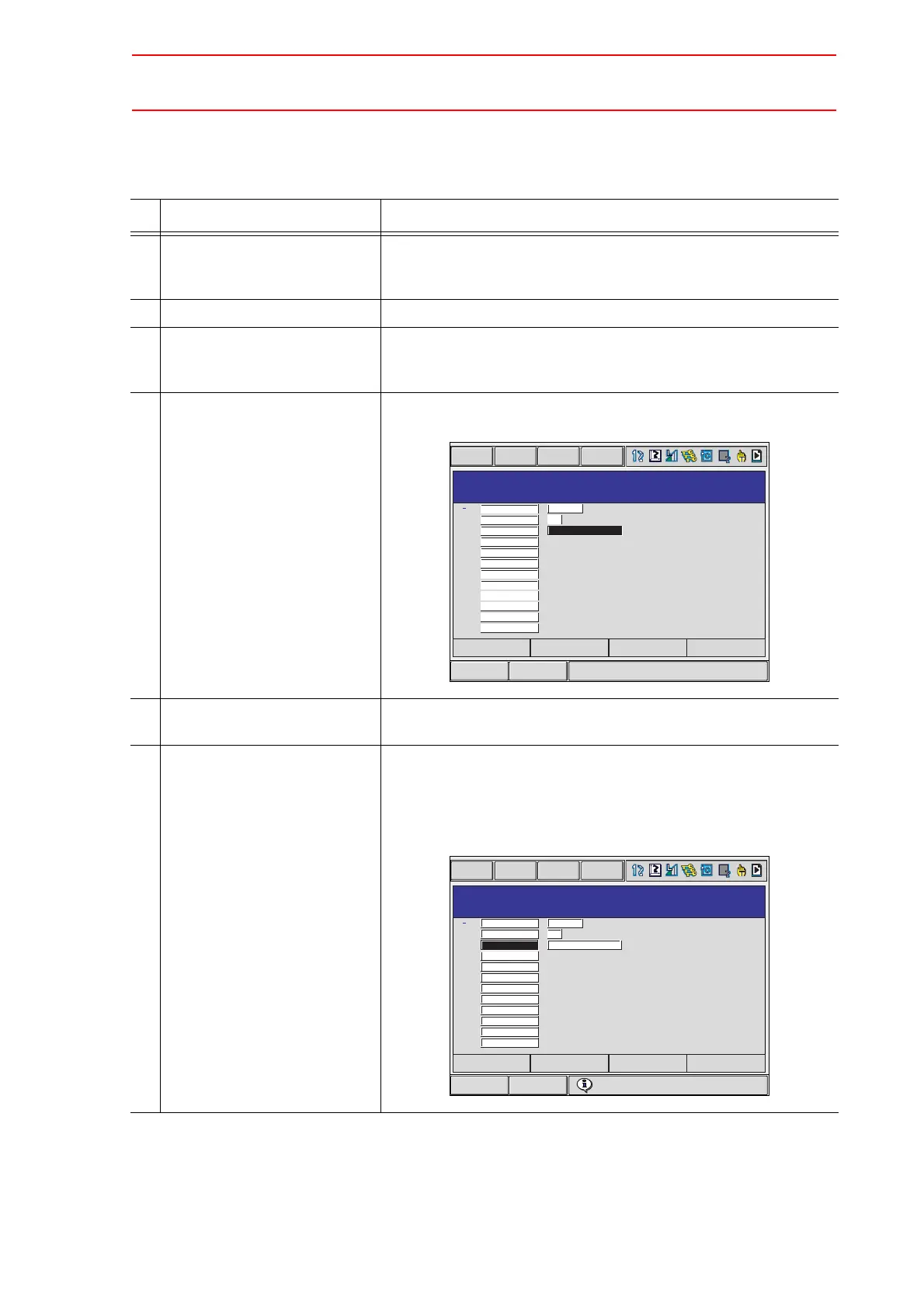

 Window Allocation
Set this function in the KEY ALLOCATION (EACH) window.
Operation Explanation
1 Move the cursor to the “FUNC-
TION” of the key to be allo-
cated and press [SELECT].
A selection list appears.
2 Select “DISPLAY”.
3 Move the cursor to “ALLOCA-
TION CONTENT” and press
[SELECT].
The character input is available.
4 Input the name of the reserved
window and press [ENTER].
The reserved name input to the “ALLOCATION CONTENT” is
shown.
5 Open the window for alloca-
tion.
6 Press [INTERLOCK] and the
allocated key at the same
time.
A message “Reserved display registered” appears, and the win-
dow is registered.
In this case, the CURRENT POSITION window is registered by
pressing [INTERLOCK] + [0] with the CURRENT POSITION win-
dow displayed on the screen.
Short CutMain Menu
KEY ALLOCATION(EACH)
DATA EDIT DISPLAY UTILITY
APPLI. NO. : 1
0
1
2
3
4
5
6
7
8
9
.
KEY FUNCTION ALLOCATION CONTENT
INSTRUCTION
JOB CALL
DISPLAY
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
WAIT
Curren t Positio n
1
PAGE
Short CutMain Menu
KEY ALLOCATION(EACH)
DATA EDIT DISPLAY UTILITY
APPLI. NO. : 1
0
1
2
3
4
5
6
7
8
9
.
KEY FUNCTION ALLOCATION CONTENT
WAIT
Curren t Positio n
1
INSTRUCTION
JOB CALL
DISPLAY
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
Reserved display registered
PAGE
