YASKAWA NX100 Instructions

4.2 Power Supply
4-5

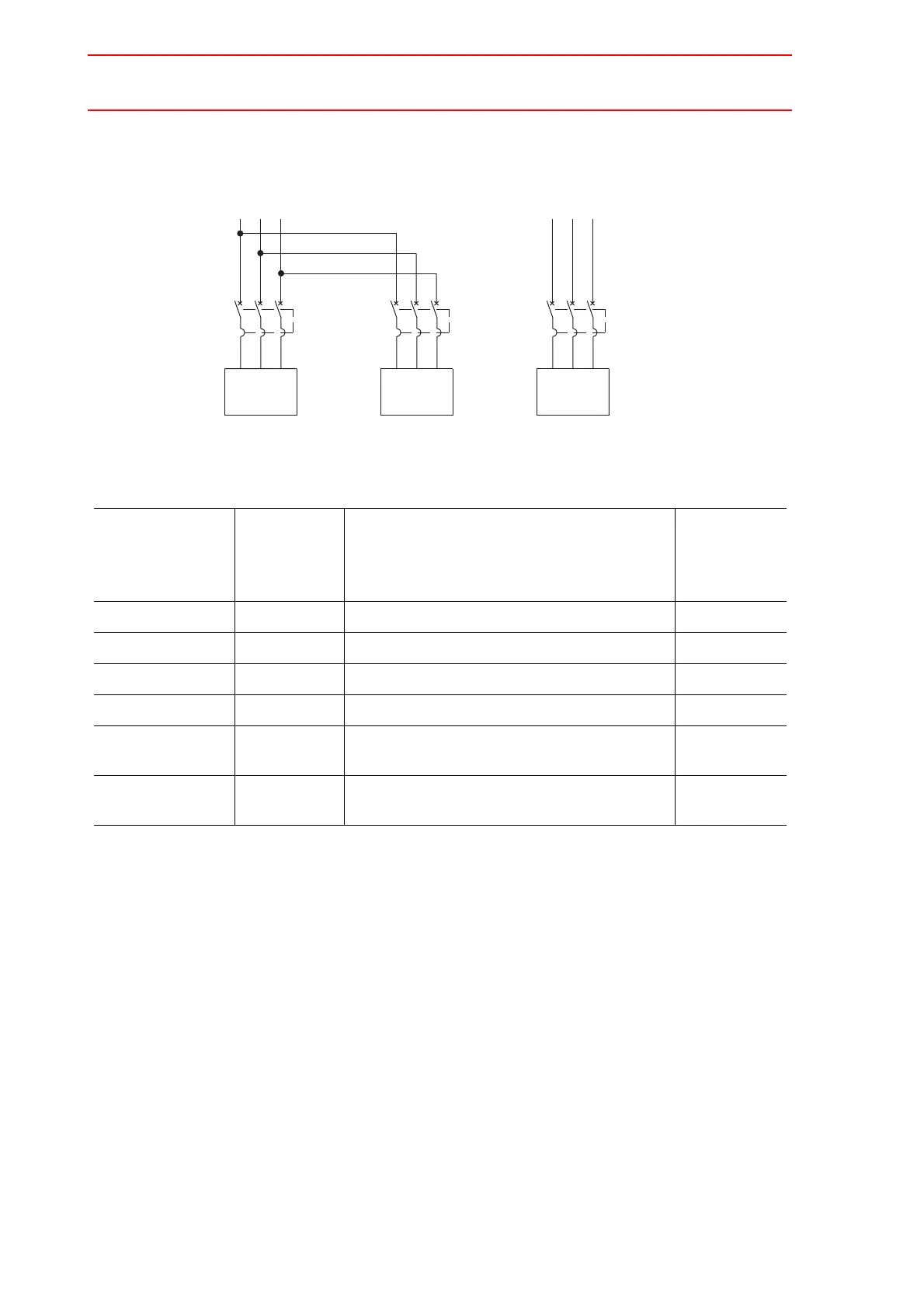

4.2.4 Primary Power Supply Switch Installation
Install the primary power supply switch as shown.
Installation of the Primary Power Supply Switch
The maximum load value (payload, operation speed, and frequency, etc.) is displayed.
However, the power capacity is different depending on work conditions.
Inquire at the nearest branch office listed on the back cover for information when selecting the
transformer.
NX100 Power Capacity, Cable Sizes, and Switch Capacities
Manipulator
Power
capacity
(kVA)
Cable size (size of terminal)
(In case of Cabtyre cable (four wicks))mm
2
Switch
capacity for
NX100
(A)
HP3 1 3.5 (M5) 5
HP6, EA1400N 1.5 3.5 (M5) 10
HP20, EA1900N 2.8 3.5 (M5) 15
UP20MN, UP50N 5 5.5 (M5) 20
ES200N, HP165,
ES165N
7.5 5.5(M5) 30
ES165RN,
ES200RN
8.5 5.5 (M5) 30
Breake
r
Breaker
Controller
for Positioner
Breaker
NX100
Power
Source

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
