7.1 Protection Through Security Mode Settings
7-6
 Changing the Security Mode

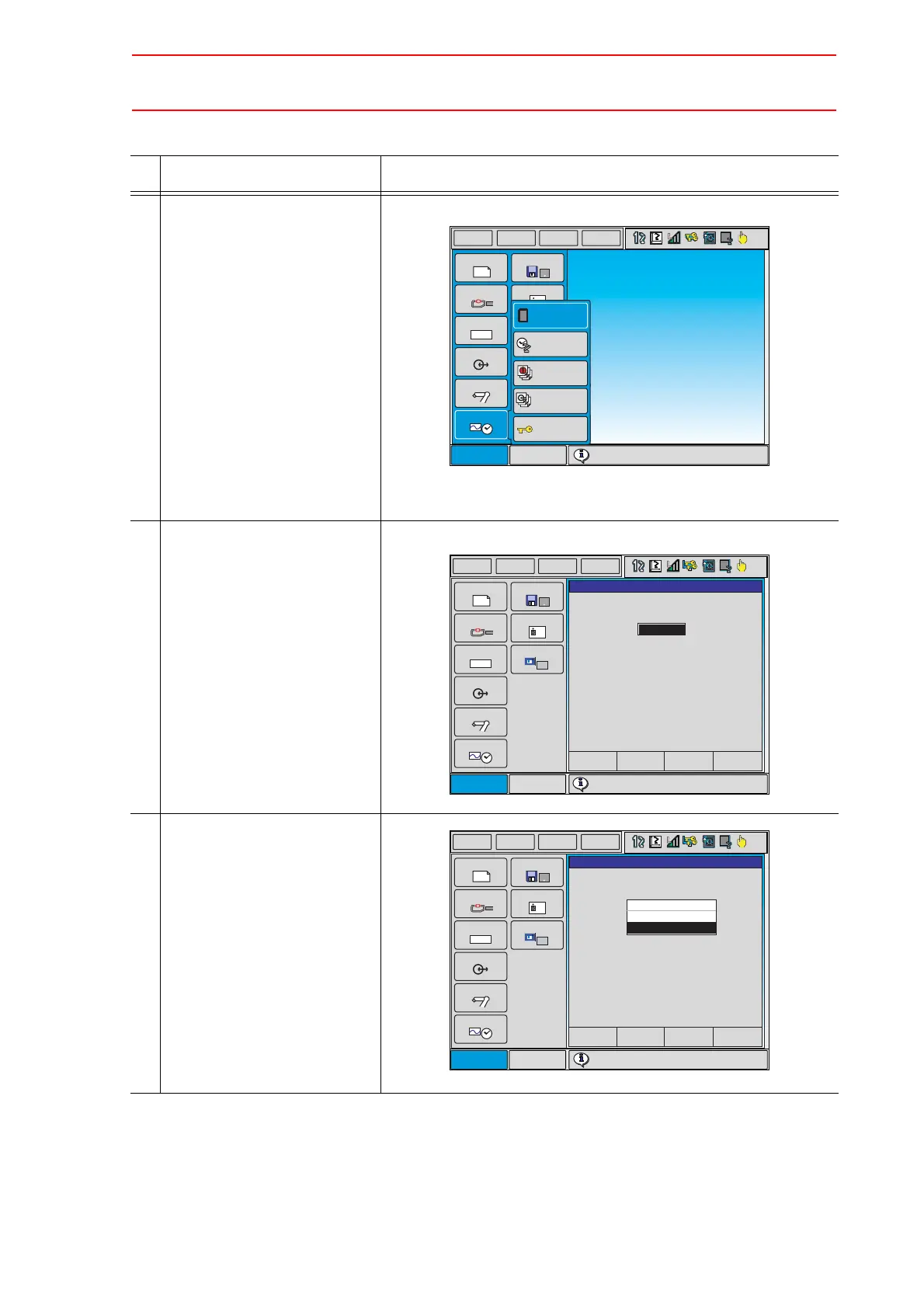

Operation Explanation
1 Select {SYSTEM INFO} under
the main menu.
The sub menu appears.
Note: Icons for the main menu such as arc welding system differ
depending on the system being used.
2 Select {SECURITY}. The selection window of security mode appears.
3 Press [SELECT] and select
"SECURITY MODE".
Main Menu
Short Cut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
CF
FD/CF
Turn on servo power
SETUP
MONITORING TIME
ALARM HISTORY
I/O MSG HISTORY
VERSION
SECURITY
T
Main Menu Short Cut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
CF
FD/CF
Turn on servo power
SETUP
SECURITY
MODE
EDITING MODE
T
DATA
EDIT
DISPLAY
UTILITY
DISPLAY SETUP
Aa
Main Menu Short Cut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM NFO
ARC WELDING
VARIABLE
B001
ROBOT
CF
FD/CF
Turn on servo power
SETUP
SECURITY
MODE
T
DATA
EDIT
DISPLAY
UTILITY
DISPLAY SETUP
Aa
OPERATING MODE
EDITING MODE
MANAGEMENT MODE
