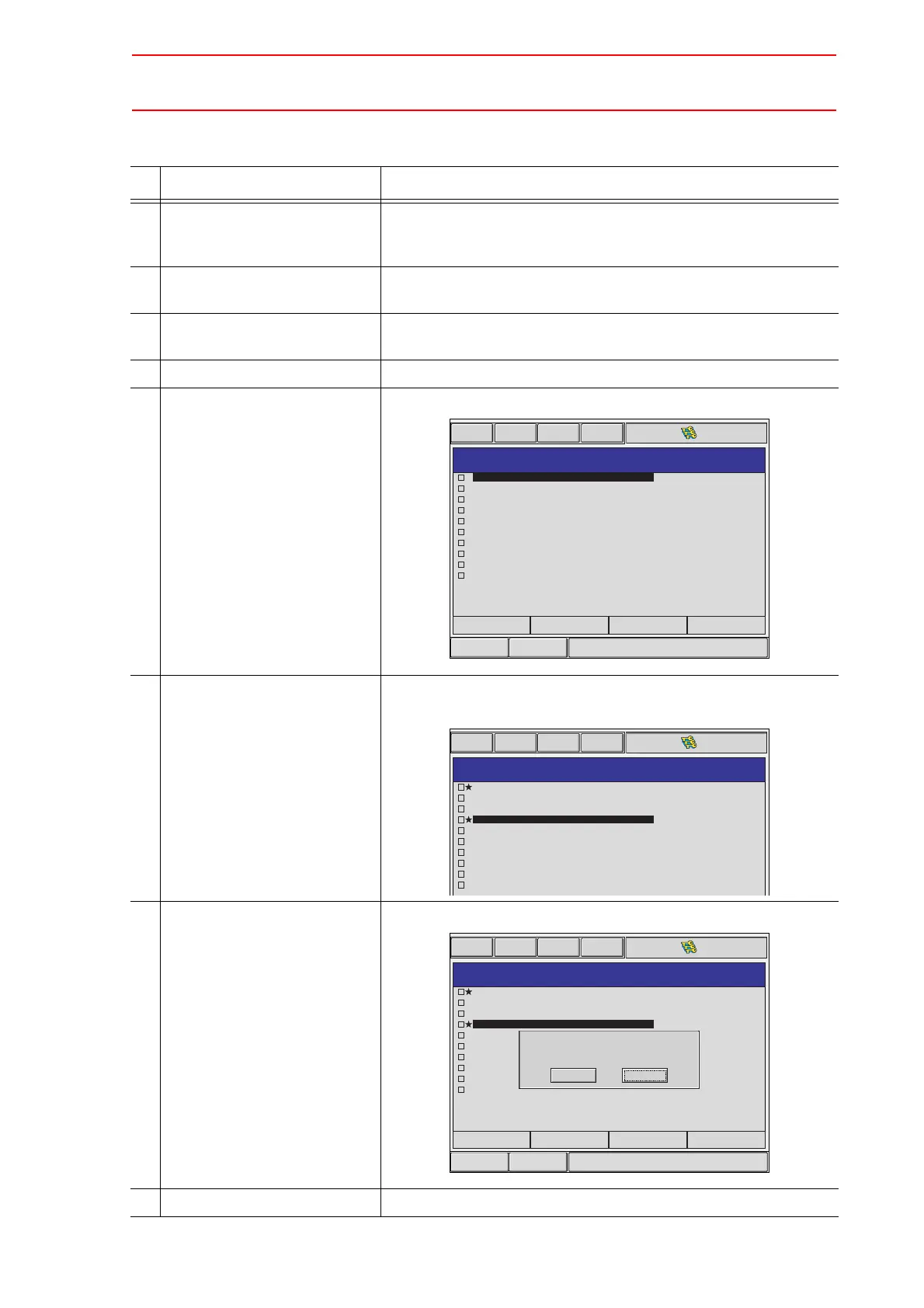

YASKAWA NX100 Instructions

8.18 File Initialize
8-105
8.18.2 Initialize Data File
Operation Explanation
1 Turn ON the power supply
again while pressing [MAIN
MENU] simultaneously.
2 Change the security mode to
the management mode.
3 Select {FILE} under the main
menu.
4 Select {INITIALIZE}.
5 Select {FILE/GENERAL
DATA}.
The INITIALIZE window appears.
6 Select the data file to be initial-
ized.
The selected data file/general data are marked with ““.
The parameters marked with "
" cannot be selected.
7 Press [ENTER]. A confirmation dialog box appears.
8 Select {YES}. The selected data file/general data are initialized.
Short CutMain Menu Maintenance mode
INITIALIZE
TOOL DATA
WEAVING
DATA
USER
COORDINATE DATA
VARIABLE
DATA
ARC
START COND DATA
ARC
END COND DATA
ARC
AUXILIARY COND DATA
POWER
SOURCE COND. DATA
USR
DEF WELDER COND DATA
SHOCK
DETECTION LEVEL
TOOL
WEAV
UFRAME
VAR
ARCSRT
ARCEND
ARCSUP
WELDER
WELDUDEF
SHOCKLVL
.
CND
.
CND
.
CND
.
DAT
. CND
.
CND
.
DAT
. DAT
. DAT
. CND
INITIALIZE
TOOL DATA
WEAVING
DATA
USER
COORDINATE DATA
VARIABLE
DATA
ARC
START COND DATA
ARC
END COND DATA
ARC
AUXILIARY COND DATA
POWER
SOURCE COND. DATA
USR
DEF WELDER COND DATA
SHOCK
DETECTION LEVEL
TOOL
WEAV
UFRAME
VAR
ARCSRT
ARCEND
ARCSUP
WELDER
WELDUDEF
SHOCKLVL
.
CND
.
CND
.
CND
.
DAT
. CND
.
CND
.
DAT
. DAT
. DAT
. CND
Short CutMain Menu Maintenance mode
INITIALIZE
TOOL DATA
WEAVING
DATA
USER
COORDINATE DATA
VARIABLE
DATA
ARC
START COND DATA
ARC
END COND DATA
ARC
AUXILIARY COND DATA
POWER
SOURCE COND. DATA
USR
DEF WELDER COND DATA
SHOCK
DETECTION LEVEL
TOOL
WEAV
UFRAME
VAR
ARCSRT
ARCEND
ARCSUP
WELDER
WELDUDEF
SHOCKLVL
.
CND
.
CND
.
CND
.
DAT
. CND
.
CND
.
DAT
. DAT
. DAT
. CND
Initialize?
NO
YES
