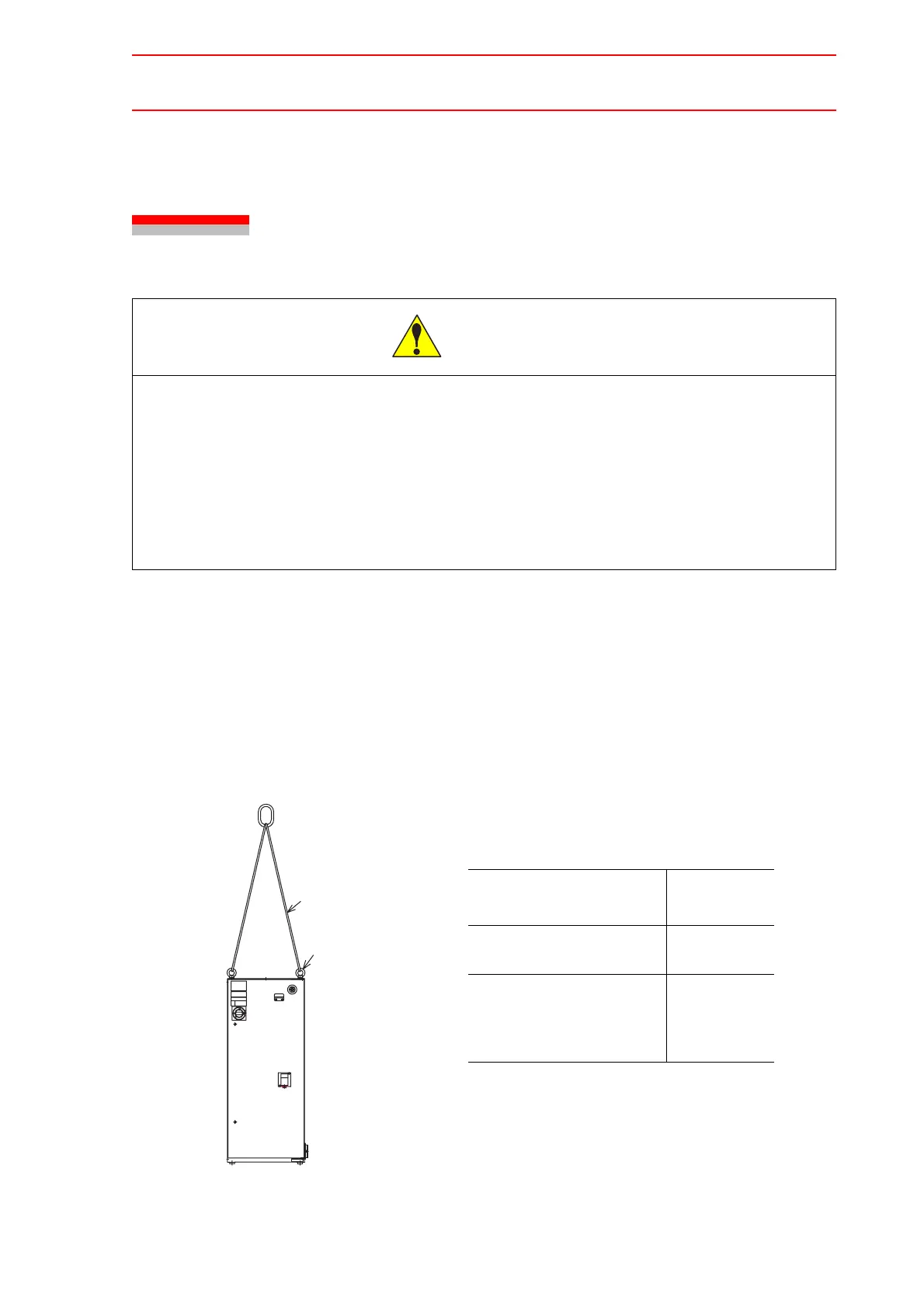

3.1 Handling Procedure
3-1
3 Installation
3.1 Handling Procedure
3.1.1 Using a Crane to Move the Controller
Check the following before handling the NX100:
• Confirm the weight of the controller before handling, and use a wire rope with a rating that
is greater than the weight of the controller.
• Install eyebolts for handling and confirm they are securely fastened before hoisting.
• Crane, sling, and forklift operations must be performed only by autho-
rized personnel.
Failure to observe this caution may result in injury or damage.
• Avoid jarring, dropping, or hitting the controller during handling.
Excessive vibration or impacting the NX100 may adversely affect the performance of the
NX100.
CAUTION
WIRE ROPE
M16 EYE BOLT
NX100
Approx. Weight of NX100
Models Available for
NX100
Approx.
Weight (kg)
HP3, HP6, EA1400N,
HP20, EA1900N
100
UP20MN, UP50N,
ES165N, HP165,
ES200N, ES165RN,
ES200RN
150

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
