YASKAWA NX100 Instructions

4.2 Power Supply
4-3
NX100 Cable Junction Diagram
4.2 Power Supply
4.2.1 Three-Phase Power Supply
The three-phase power supply consists of 200/220VAC at 60Hz and 200VAC at 50Hz.
The power failure processing circuit operates when there is a black out or drop in voltage, and
the servo power turns OFF.
Connect the power supply to a stable power source that is not prone to power fluctuations.

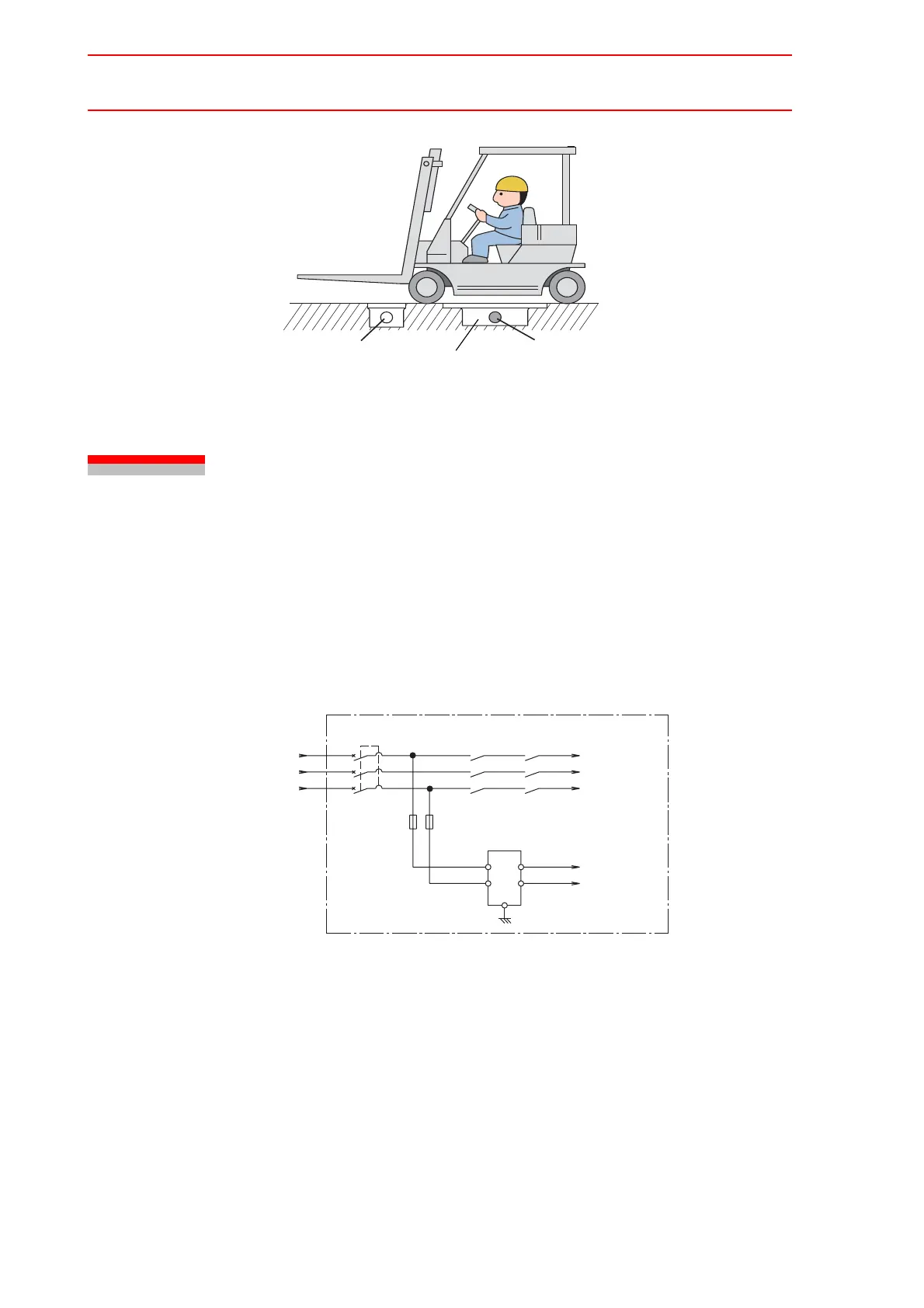

Input Power Supply Connection
SAFETY
FIRST
PIPING
LEAD
cable channel
SERVOPACK
1KM
2KM
Contactor
To control
power supply
unit
Noise Filter
Breaker
NX100
Fuse
3-phase
200/220VAC at 60Hz
or
200VAC 50Hz

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
