YASKAWA NX100 Instructions

8.1 Home Position Calibration
8-8
 Clearing Absolute Data

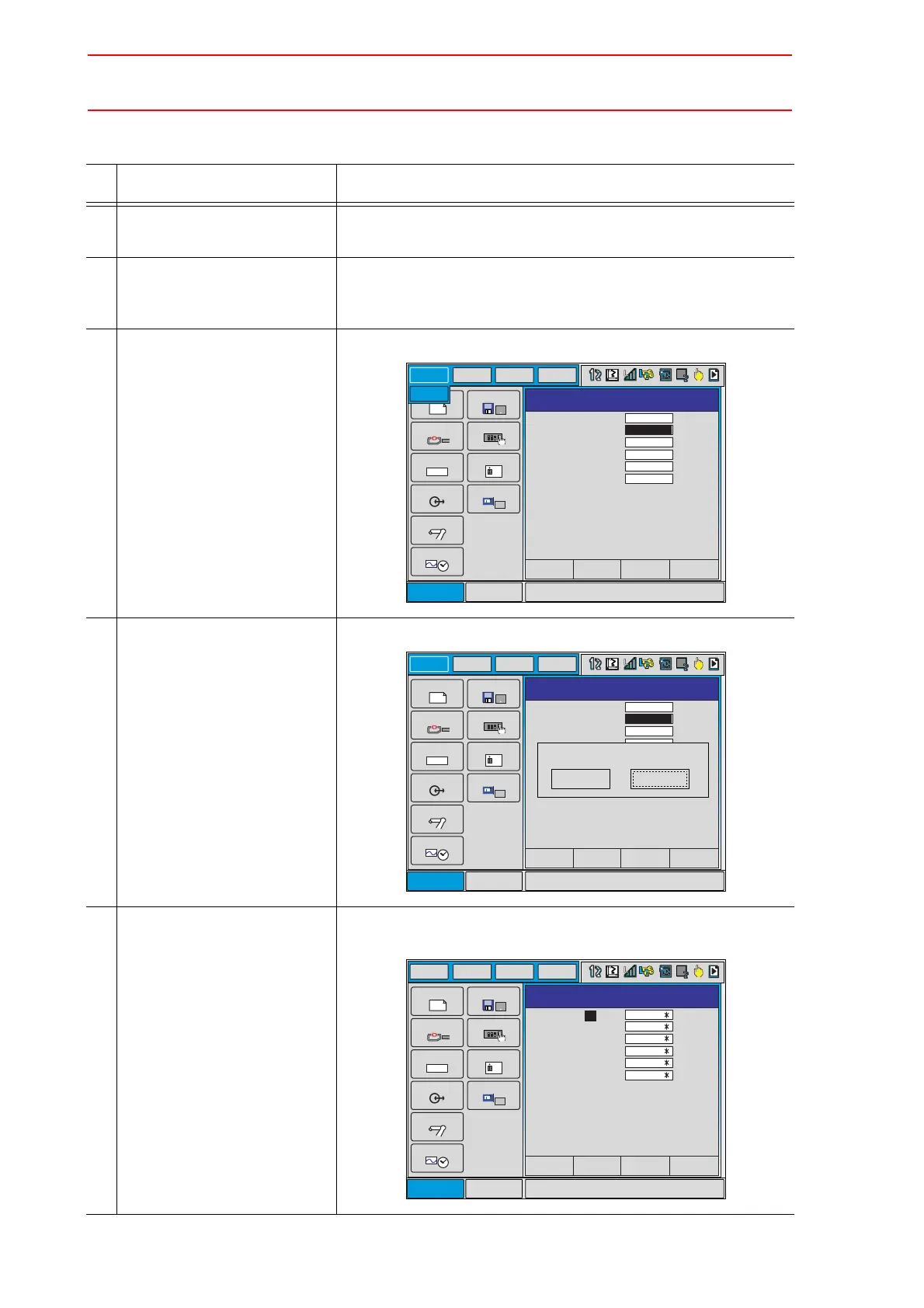

Operation Explanation
1 Select {ROBOT} under the
main menu.
2 Select {HOME POSITION}. Perform steps 2, 3, and 4 which have been described in "Regis-
tering All Axes at One Time" to display the HOME POSITION-
ING window and select the desired control group.
3 Select {DATA} under the
menu.
The pull-down menu appears.
4 Select {CLEAR ALL DATA}. The confirmation dialog box appears.
5 Select {YES}. The all absolute data are cleared.
When {NO} is selected, the operation will be canceled.
