8.19 Display Setting Function
8-109

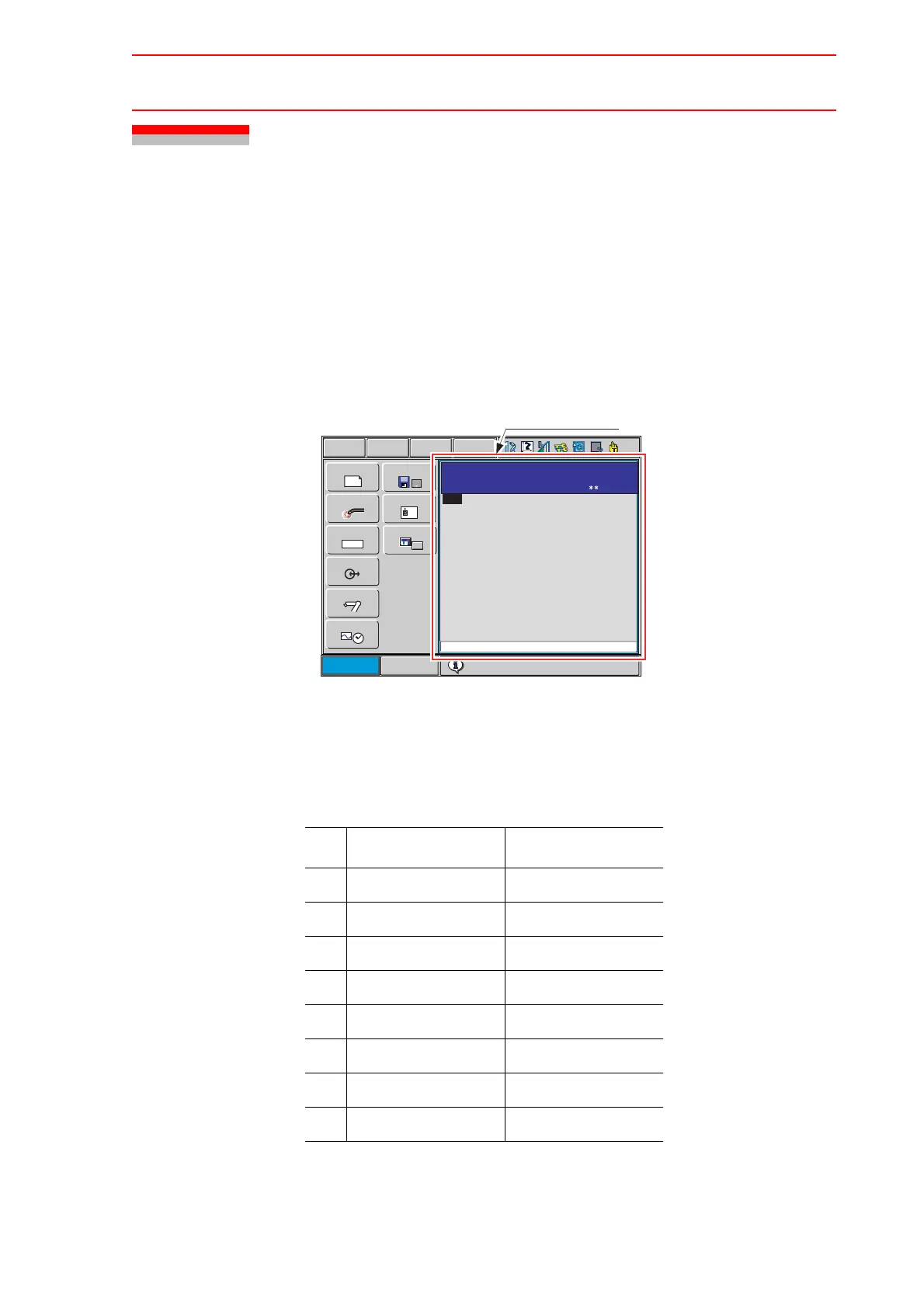

8.19 Display Setting Function
8.19.1 Font Size Setting
NX100 enables changing the font size displayed on the screen.
The fonts displayed on the screen can be selected from eight patterns of fonts in the font size
setting dialog box.
 Applicable Range for the Font Size Change
Changing the font size is allowed in the general display area indicated in the following figure:
 Settable Font Size
The following eight patterns of fonts are available in setting the size of fonts displayed on the
screen.
Font Size Font Style
1 Small Regular
2 Small Bold
3 Regular Regular
4 Regular Bold
5 Large Regular
6 Large Bold
7 Extra large Regular
8 Extra large Bold
Short CutMain Menu
SETUP
CF
FD/CF
DOUT
MOVE
END
JOB
ARC WELDING
B001
VARIABLE
In Out
IN/OUT
ROBOT
SYSTEM INFO
DISPLAY SETUP
A
a
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
JOB
EDIT DISPLAY UTILITY
=> MOVJ VJ=0.78
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
STEP NO: 000
TOOL:
Turn on servo power
General display area
