YASKAWA NX100 Instructions

8.6 Interference Area
8-52
5 Select “CONTROL GROUP”. A selection box appears. Select the desired control group.
6 Select “REF COORDINATES”. A selection box appears. Select the desired coordinate.
If the user coordinates are selected, the number input line is dis-
played. Input the user coordinate number and press [ENTER].
7 Select “CHECK MEASURE.” Each time [SELECT] is pressed, “COMMAND POSITION” and
“FEEDBACK POSITION” are displayed alternately.

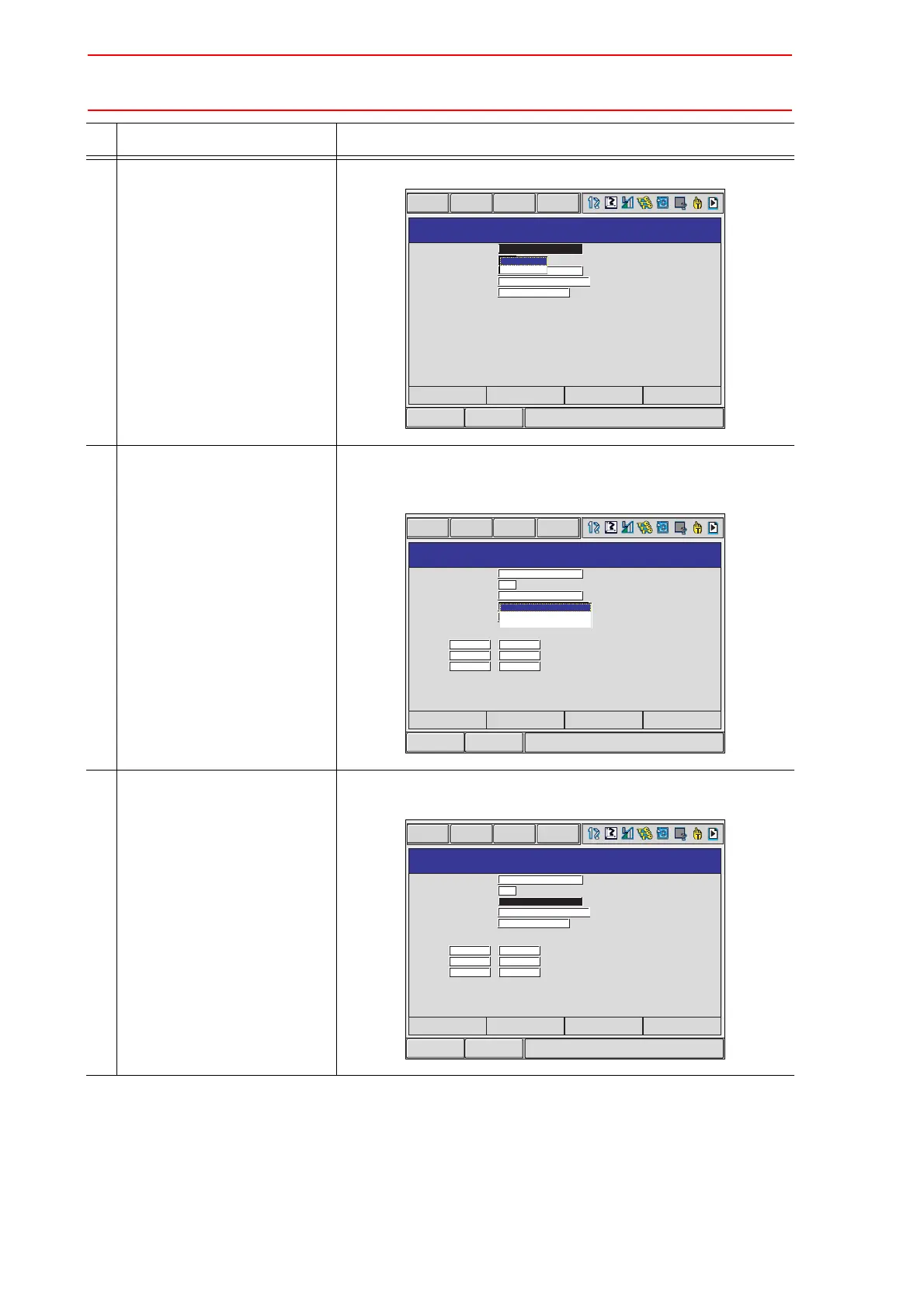

Operation Explanation
Short CutMain Menu
INTERFERENCE AREA
INTERFERENCE SIGNAL : 1 / 32
DATA EDIT DISPLAY UTILITY
METHOD
CONTROL GROUP
CHECK MEASURE
REF COORDINATE
TEACHING METHOD
CUBIC INTERFERENCE
COMMAND POSITION
BASE
MAX / MIN
R1
R2
:ROBOT1
:ROBOT2
PAGE
Short CutMain Menu
INTERFERENCE AREA
INTERFERENCE SIGNAL : 1 / 32
DATA EDIT DISPLAY UTILITY
METHOD
CONTROL GROUP
CHECK MEASURE
REF COORDINATE
TEACHING METHOD
X
Y
Z
<MAX> <MIN>
0.000
0.000
0.000
0.000
0.000
0.000
R1
CUBIC INTERFERENCE
COMMAND POSITION
BASE
MAX / MIN
BASE
ROBOT
USER
PAGE
Short CutMain Menu
INTERFERENCE AREA
INTERFERENCE SIGNAL : 1 / 32
DATA EDIT DISPLAY UTILITY
METHOD
CONTROL GROUP
CHECK MEASURE
REF COORDINATE
TEACHING METHOD
X
Y
Z
<MAX> <MIN>
0.000
0.000
0.000
0.000
0.000
0.000
R1
CUBIC INTERFERENCE
COMMAND POSITION
BASE
MAX / MIN
COMMAND POSITION
PAGE

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
