YASKAWA NX100 Instructions

5.1 Turning ON the Main Power Supply
5-2
5.1.1 Initial Diagnosis
The initial diagnosis are performed in the NX100 when main power is turned ON, and the star-
tup window is shown on the programming pendant screen.

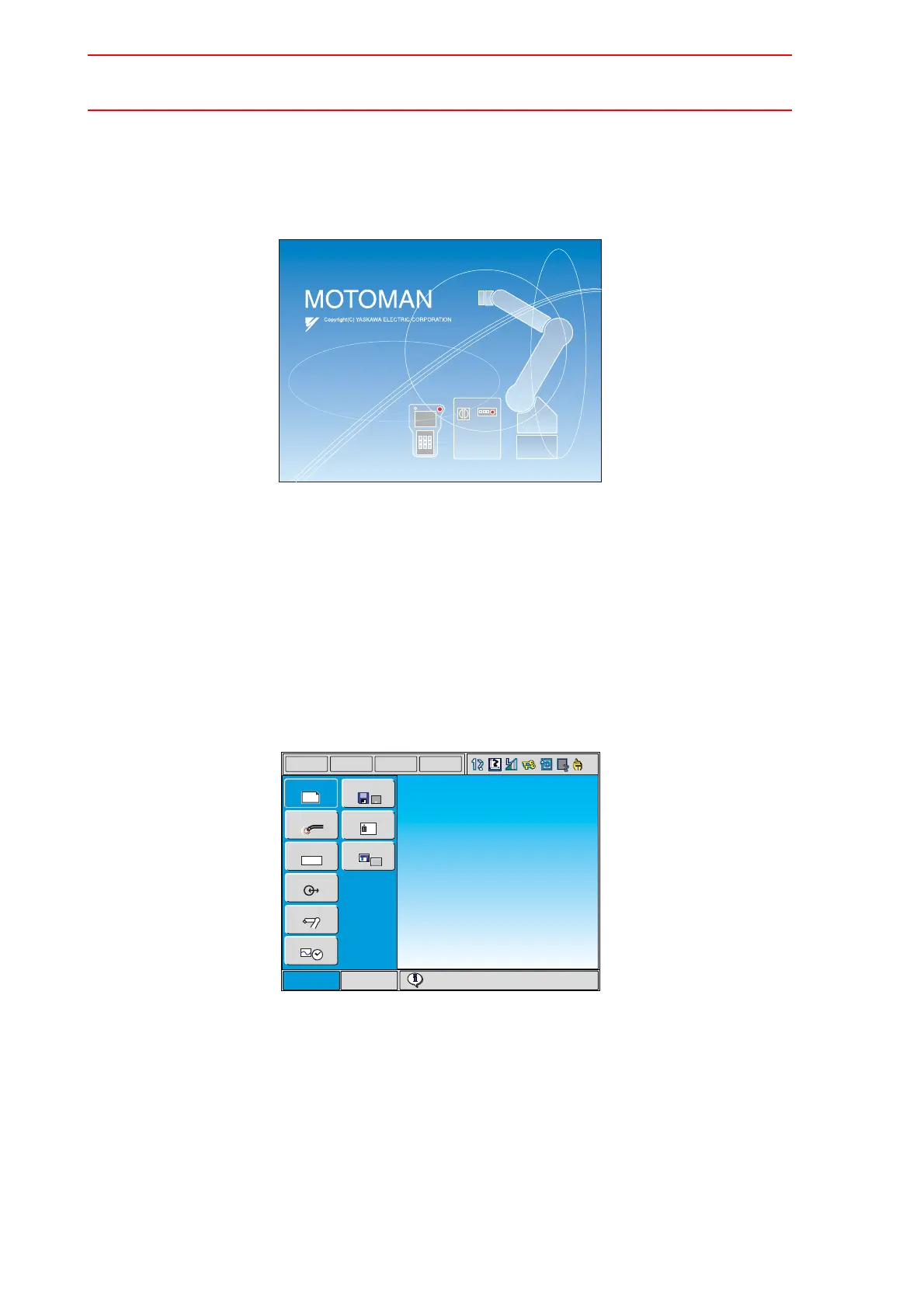

Startup Window
5.1.2 When Initial Diagnosis are Complete
When the power supply is turned OFF, the NX100 saves all condition data, including:
• Mode of operation
• Called job (active job if the NX100 is in the play mode; edit job if the NX100 is in the teach
mode) and the cursor position in the job.
Initial Window
Short Cut
GETTOOL P000 TL#(0)
=>
Main Menu
SETUP
CF
FD/CF
ARC WELDING
B001
VARIABLE
In Out
IN/OUT
ROBOT
SYSTEM INFO
JOB
DOUT
MOVE
END
Turn on servo power
DISPLAY SETUP
A
a

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
