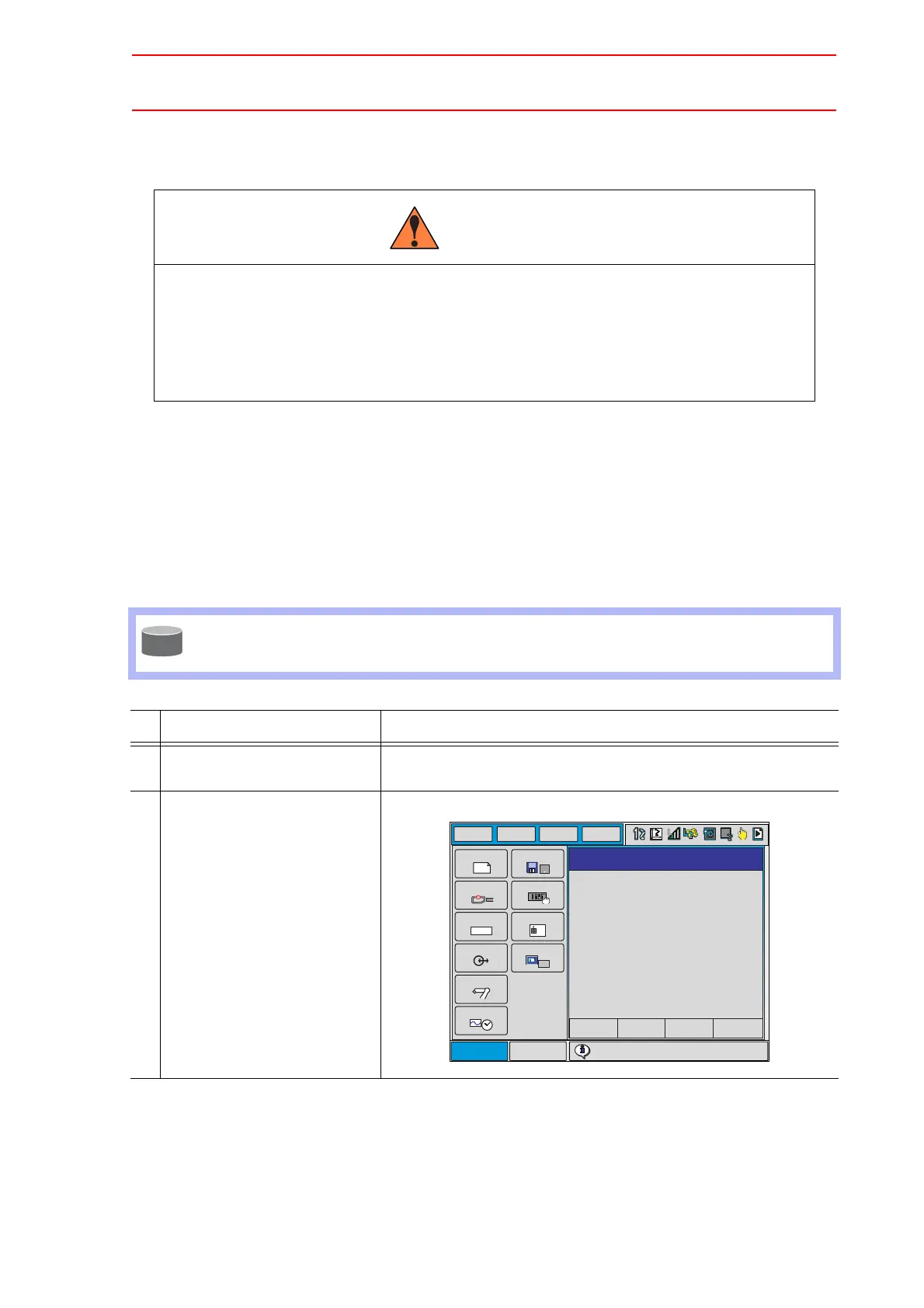

8.2 Setting the Second Home Position (Check Point)
8-15
8.2.3 Procedure after the Alarm
If the "OUT OF RANGE (ABSO DATA)" alarm occurs:
• Reset the alarm;
• Turn ON the servo power;
then confirm the second home position. After the confirmation, if the PG system is found to be
the cause of the alarm, perform the necessary operation, such as replacing the PG, etc.
The robot current position data when turning main power supply OFF and ON can be con-
firmed in “POWER ON/OFF POS" window.
• Be aware of safety hazards when performing the position confirma-
tion of the specified point.
Abnormality of the PG system may be the cause of the alarm. The manipulator may
operate in an unexpected manner, and there is a risk of damage to equipment or
injury to personnel.
For details on the “POWER ON/OFF POS" window, refer to " 7.7 Position Data When
Power is Turned ON/OFF " in NX100 MAINTENANCE MANUAL.
Operation Explanation
1 Select {ROBOT} under the
main menu.
2 Select {SECOND HOME
POS}.
The SECOND HOME POS window appears.
WARNING
SUPPLE
-MENT
Main Menu
Short Cut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
CF
FD/CF
SETUP
PARAMETER
DISPLAY SETUP
Aa
DATA
EDIT
DISPLAY
UTILITY
T
PAGE
R1:S
L
U
R
B
T
000
000
000
000
000
000
SECOND HOME POS
SPECIFIED
CURRENT
DIFFERENCE
Available to move to and modify specified point
