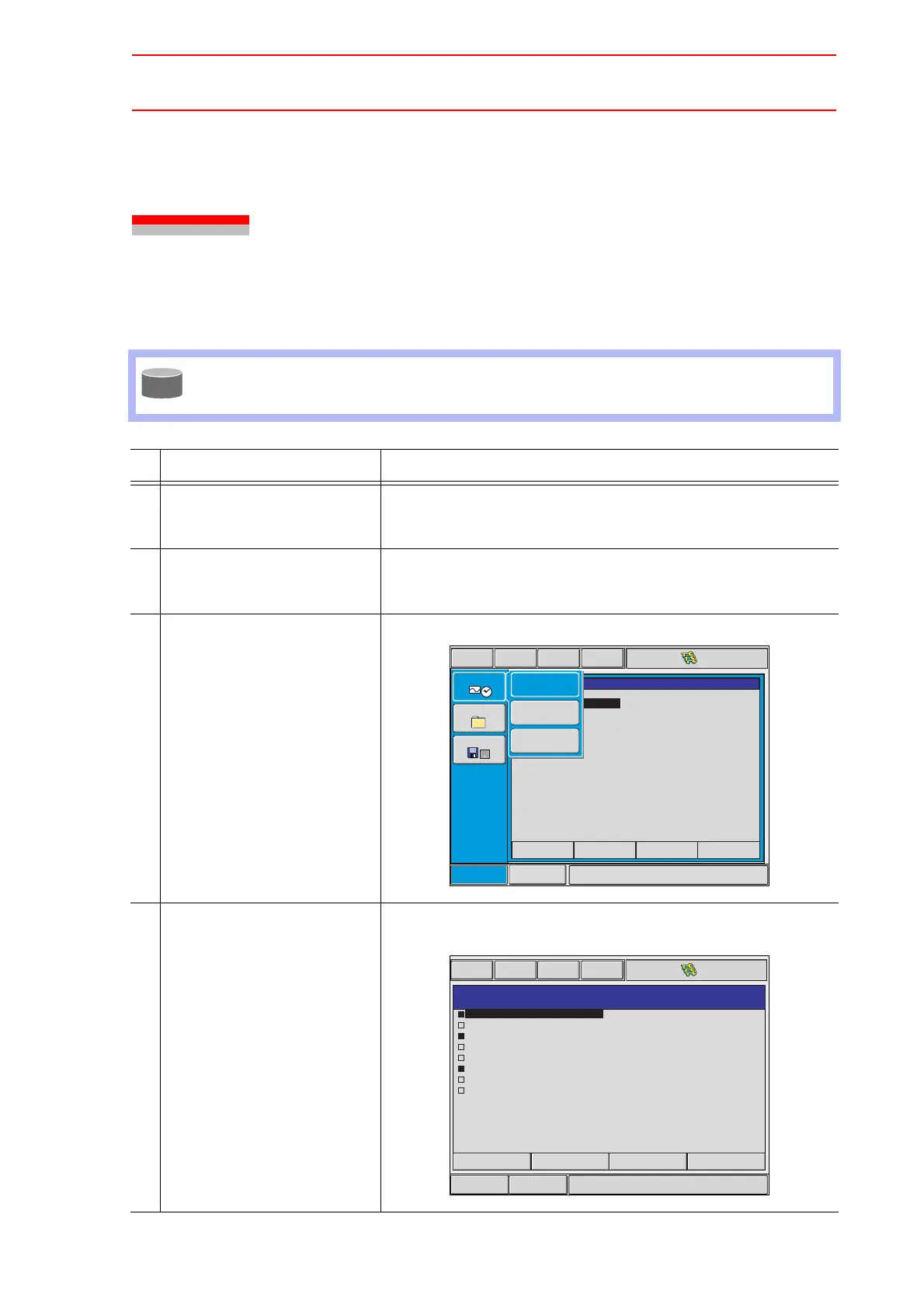

YASKAWA NX100 Instructions

11.1 Addition of I/O Modules
11-1
11 Modification of System Configuration
11.1 Addition of I/O Modules
To add I/O modules, turn OFF the power supply.
Addition operation must be performed in the management mode.
In the operation mode or editing mode, only reference of status setting is possible.
Operation Explanation
1 Turn ON the power supply
again while pressing [MAIN
MENU] simultaneously.
2 Change the "SECURITY
MODE" to the "MANAGE-
MENT MODE".
3 Select {SYSTEM} under the
main menu.
The system window appears.
4 Select {SETUP}. The SETUP window appears.
The items marked with "
" cannot be selected.
SUPPLE
-MENT
CF
Short Cut
SYSTEM
TOOL
FILE
Main Menu Maintenance mode
MANAGEMENT MODE
SETUP
VERSION
SECURITY
Short CutMain Menu Maintenance mode
SETUP
LANGUAGE
CONTROL GROUP
APPLICATION
OPTION BOARD
IO MODULE
CMOS MEMORY
DATE/TIME
OPTION FUNCTION
