YASKAWA NX100 Instructions

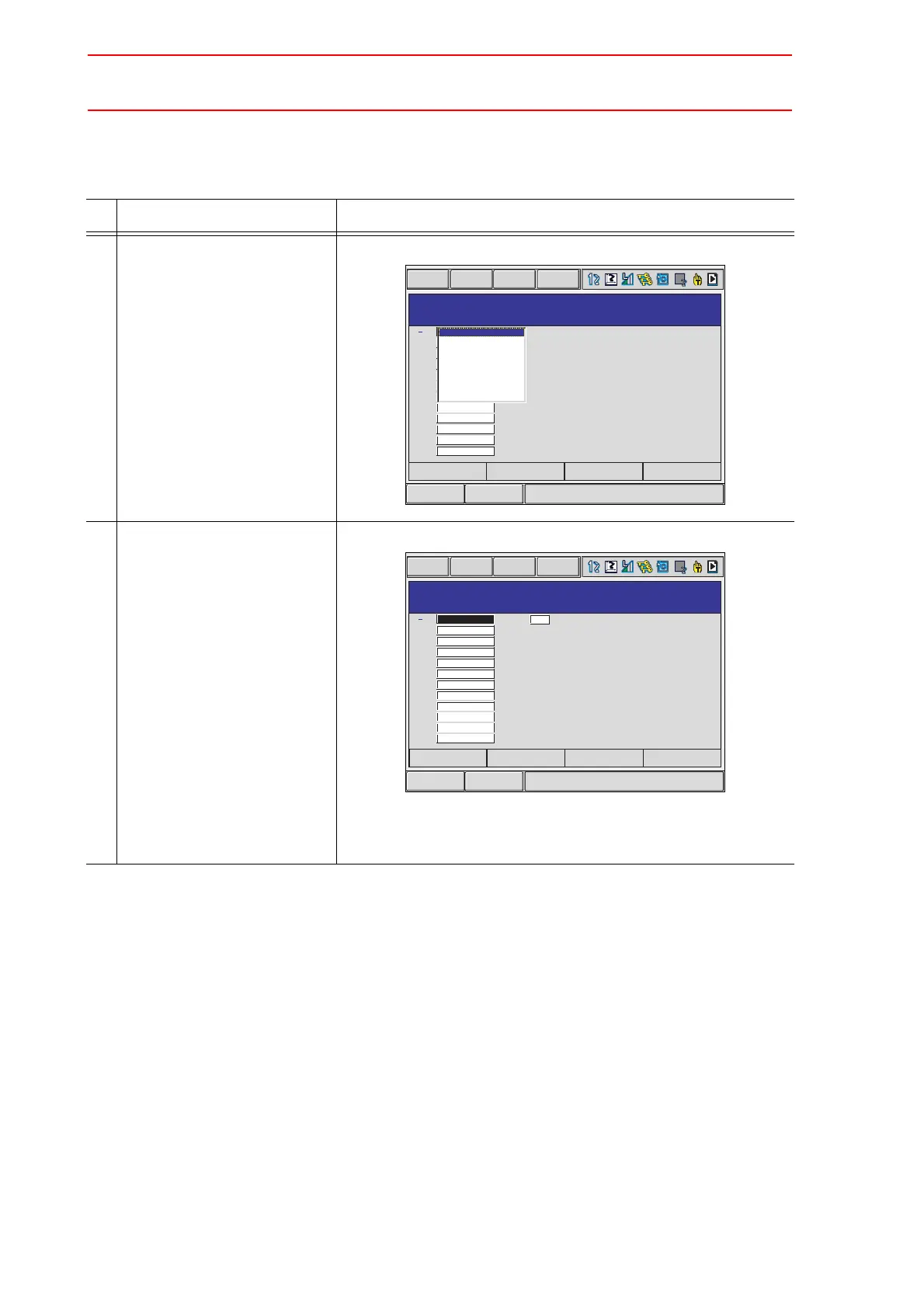

8.15 Numeric Key Customize Function
8-94
 Alternate Output Allocation
Set this function in the KEY ALLOCATION (SIM) window.
Operation Explanation
1 Move the cursor to the “FUNC-
TION” of the key to be allo-
cated and press [SELECT].
A selection list appears.
2 Select “ALTERNATE OUT-
PUT”.
The output No. is displayed in the “ALLOCATION CONTENT”.
To change the output No., move the cursor to the No. and press
[SELECT]. Numeric values can now be entered. Input the num-
ber to be changed, and press [ENTER].
Short CutMain Menu
KEY ALLOCATION(SIM)
DATA EDIT DISPLAY UTILITY
APPLI. NO. : 2
0
1
2
3
4
5
6
7
8
9
.
KEY FUNCTION ALLOCATION CONTENT
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
ALTERNATE
OUTPUT
MOMENTARY
OUTPUT
PULSE
OUTPUT
4
BIT OUTPUT
8
BIT OUTPUT
ANALOG
OUTPUT
ANALOG
INC OUTPUT
DISPLAY
PAGE
Short CutMain Menu
KEY ALLOCATION(SIM)
DATA EDIT DISPLAY UTILITY
APPLI. NO. : 2
ALTERNATE
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
MAKER
0
1
2
3
4
5
6
7
8
9
.
KEY FUNCTION ALLOCATION CONTENT
PAGE
NO. 1
