YASKAWA NX100 Instructions

8.17 Changing the Parameter Setting
8-103

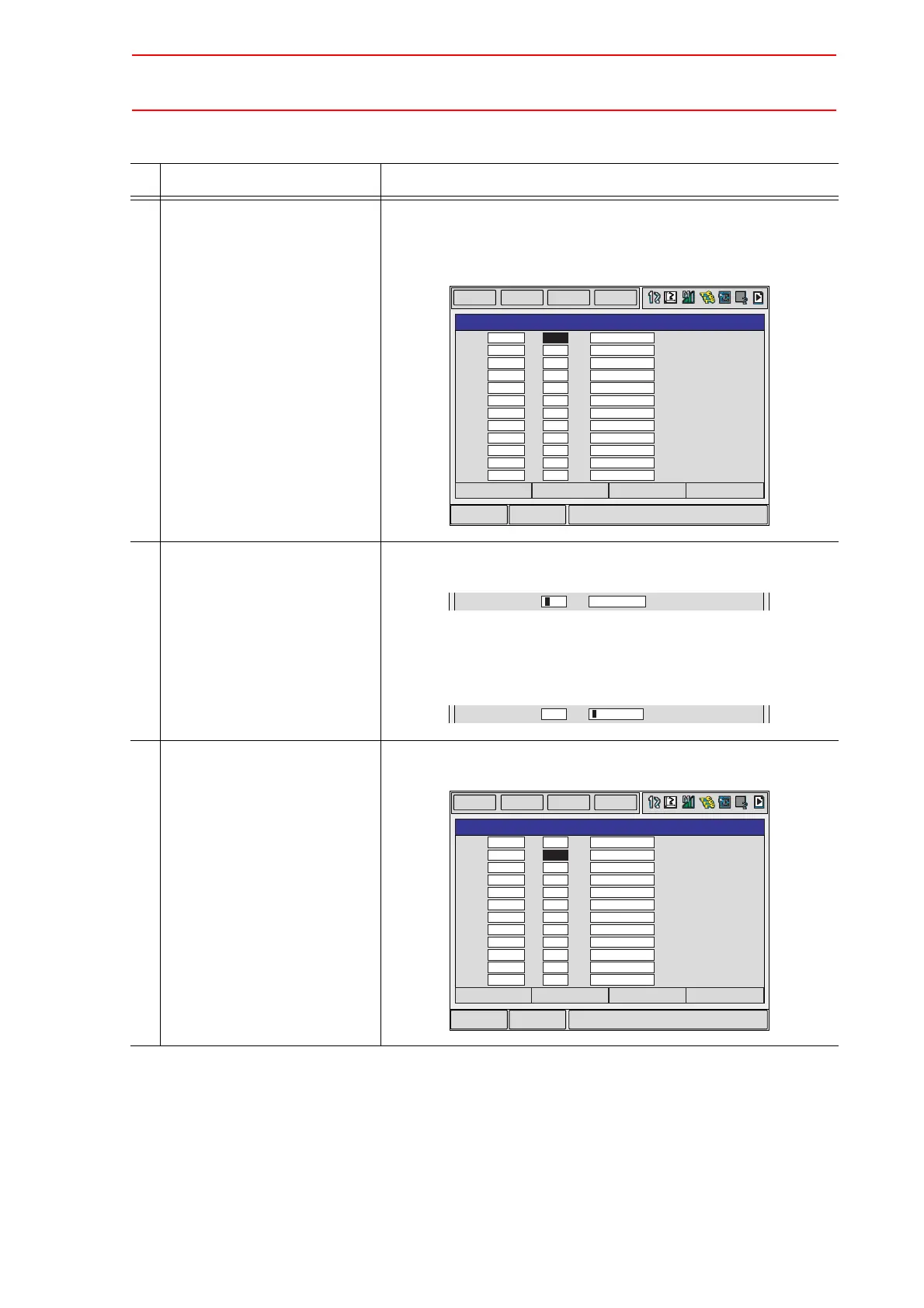

Set the parameters in the following manner.
Operation Explanation
1 Select the parameter data to
be set.
Move the cursor to the parameter number data (decimal or
binary) in the PARAMETER window, and press [SELECT].
- To enter a decimal setting, select the decimal figure.
- To enter a binary setting, select the binary figure.
2 Enter the value. If a decimal figure is selected, enter a decimal value with the
numeric keys.
If a binary figure is selected, move the cursor to the binary figure
data in the input buffer line, and press [SELECT]. Each time
[SELECT] is pressed, “0” and “1” alternate in the window. “0” or
“1” can also be entered with the numeric keys.
3 Press [ENTER]. The new setting appears in the position where the cursor is
located.
