YASKAWA NX100 Instructions

8.19 Display Setting Function
8-111

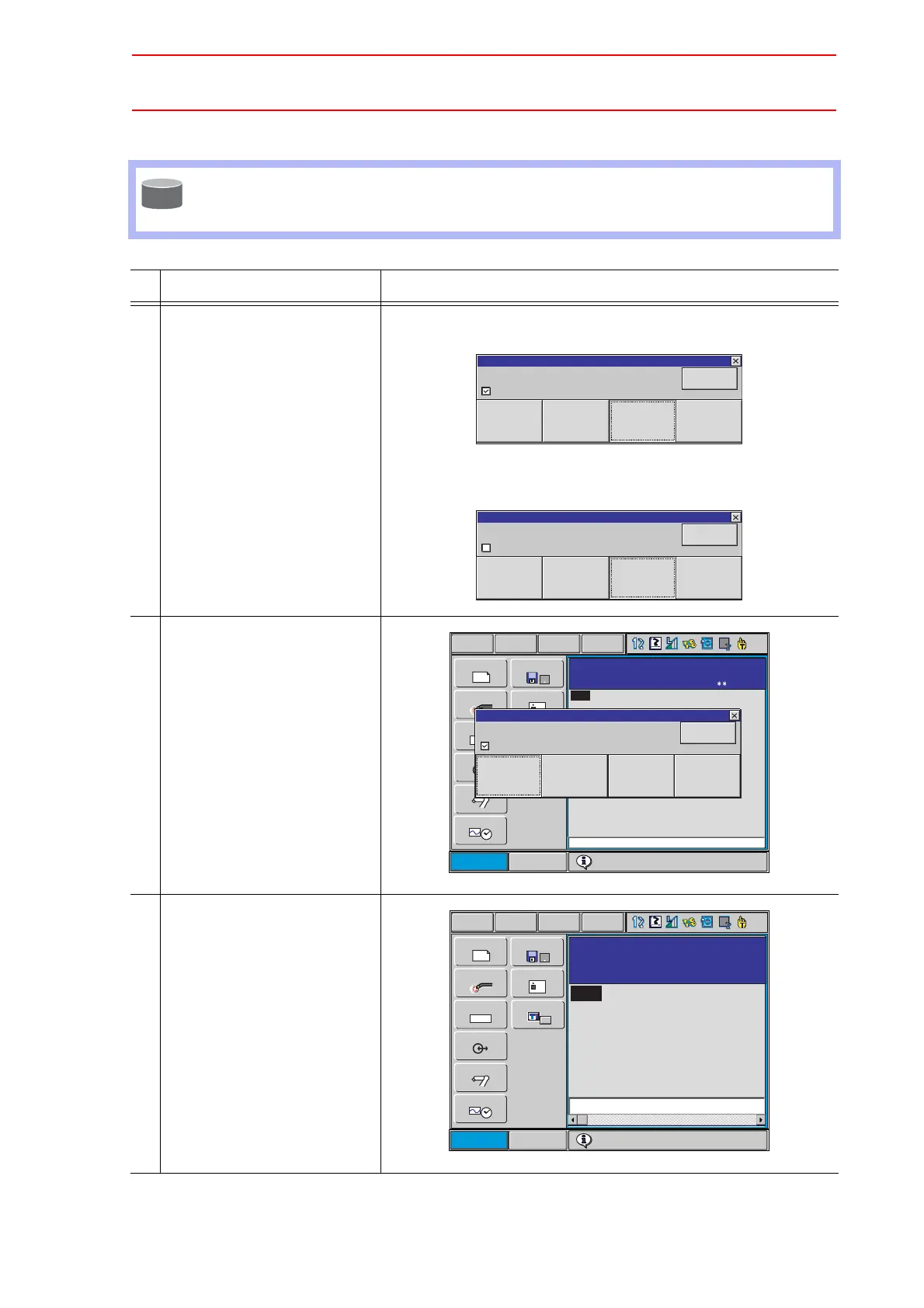

To set the font size in the font size setting dialog box, follow the procedure below.
In the explanation of the operation procedure, the expression "Select ..." means that the
cursor is moved to the object item and the SELECT key is pressed, or that the item is
directly selected by touching the screen.
Operation Explanation
1 Specify the font style.
The {Bold Type} check box
can be checked or unchecked
alternately each time the
check box is selected.
Check the {Bold Type} check box as follows to set the font to the
bold style.
Clear the {Bold Type} check box as follows to set the font to the
regular style.
2 Specify the font size.
Select a button from the four
buttons in the dialog box.
3 The font size setting dialog
box is closed, and the screen
displays the font specified in
the dialog box.
SUPPLE
-MENT
NxPp
ABCDE
ABCDE
ABCDE
ABCDE
Please select font size.
Bold Type
Cancel
NxPp
ABCDE
ABCDE
ABCDE
ABCDE
Please select font size.
Bold Type
Cancel
Short CutMain Menu
SETUP
CF
FD/CF
DOUT
MOVE
END
JOB
ARC WELDING
B001
VARIABLE
In Out
IN/OUT
ROBOT
SYSTEM INFO
DISPLAY SETUP
A
a
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
JOB
EDIT DISPLAY UTILITY
=> MOVJ VJ=0.78
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
STEP NO: 000
TOOL:
Turn on servo power
NxPp
ABCDE
ABCDE
ABCDE
ABCDE
Please select font size.
Bold Type
Cancel
Short CutMain Menu
SETUP
CF
FD/CF
DOUT
MOVE
END
JOB
ARC WELDING
B001
VARIABLE
In Out
IN/OUT
ROBOT
SYSTEM INFO
DISPLAY SETUP
A
a
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
JOB
EDIT DISPLAY UTILITY
=> MOVJ VJ=0.78
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
STEP NO: 000
TOOL:
Turn on servo power
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
=> MOVJ VJ=0.78
