YASKAWA NX100 Instructions

13.3 CPU Unit
13-14
 Connection wire with Robot User I/O Connector (CN07, 08, 09, 10)

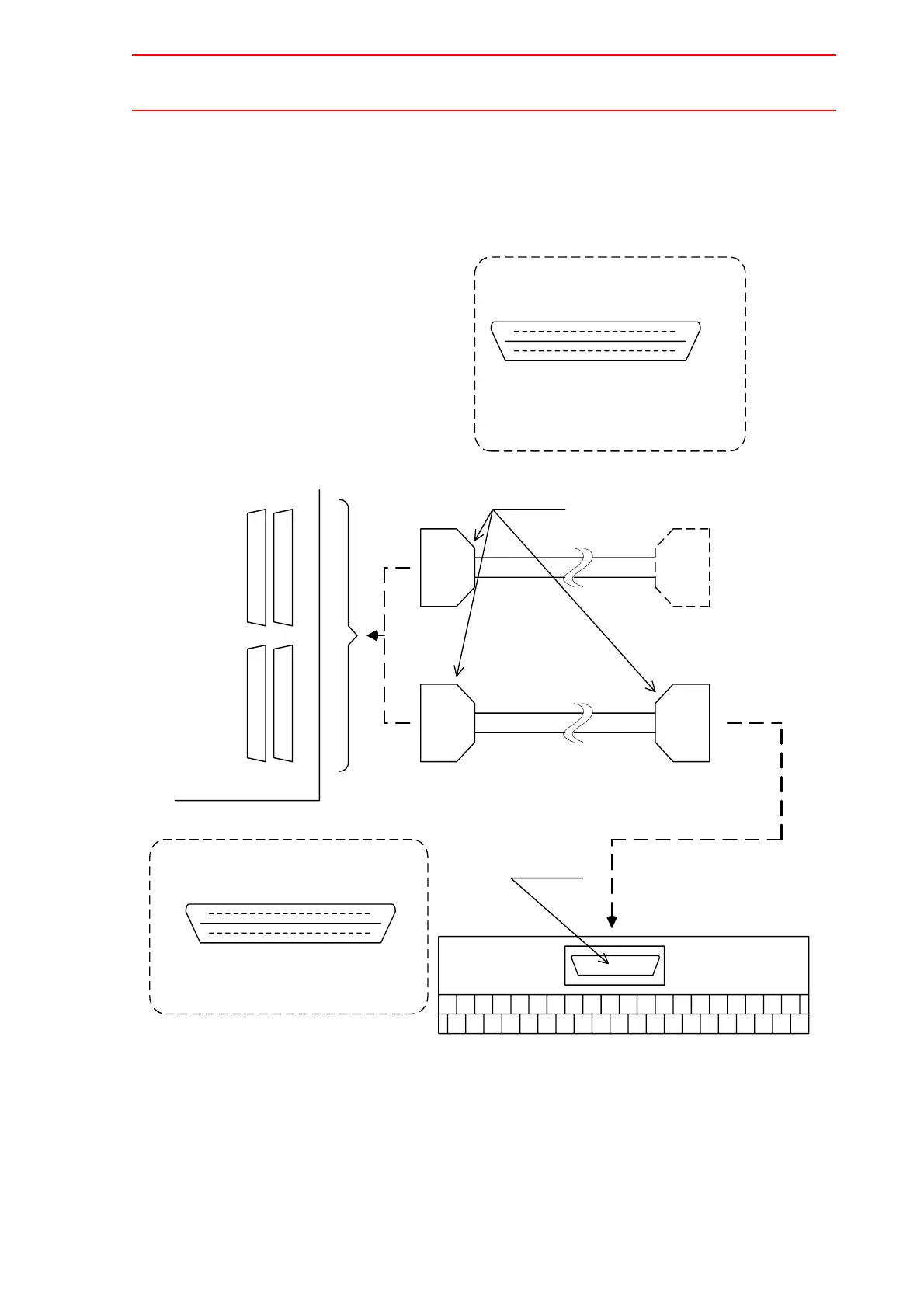

Please refer to the figure below when you manufacture the cable connecting with robot user
I/O connector (CN07, 08, 09, 10) of robot I/F unit (JZNC-NIF01). Unshielded twisted pair
cable must be used.(The cable side connector and the I/O terminal block are the options)
Connector A detailed (Cable side)
(JZNC-NIF01□)
CN08 CN07
CN10 CN09
Connector Type: FCN-361J040-AU (Fujitsu)
(Soldering pin type)
Food Type: FCN-360C040-B (Fujitsu)
Connector A
CN07,CN08,CN09,CN10, Connector B detailed
Connector Type: FCN-365P040-AU (Fujitsu)
39373533312927252321191715131197531
403836343230282624222018161412108642
I/O Terminal block (Terminal size: M3)
Type: PX7DS-40V6-R (Yoshida
Denki)
Connector B
I/O Cable (form NIF
to Peripheral Device)
I/O Cable (from NIF to
Terminal block)
Robot I/F unit
B20
A20
B1
A1
B20
A20
B1
A1

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
