13.3 CPU Unit
13-18
 Robot System Input Terminal Block (MXT)
The robot system input termial block (MXT) is equipped on the bottom face of the inside
NX100 as shown below. The input termilnal block (MXT) is used for the input of robot system
signals.
For connections, refer to connection diagrams for each corresponding items.
(MXT)
MXT
(MXT)

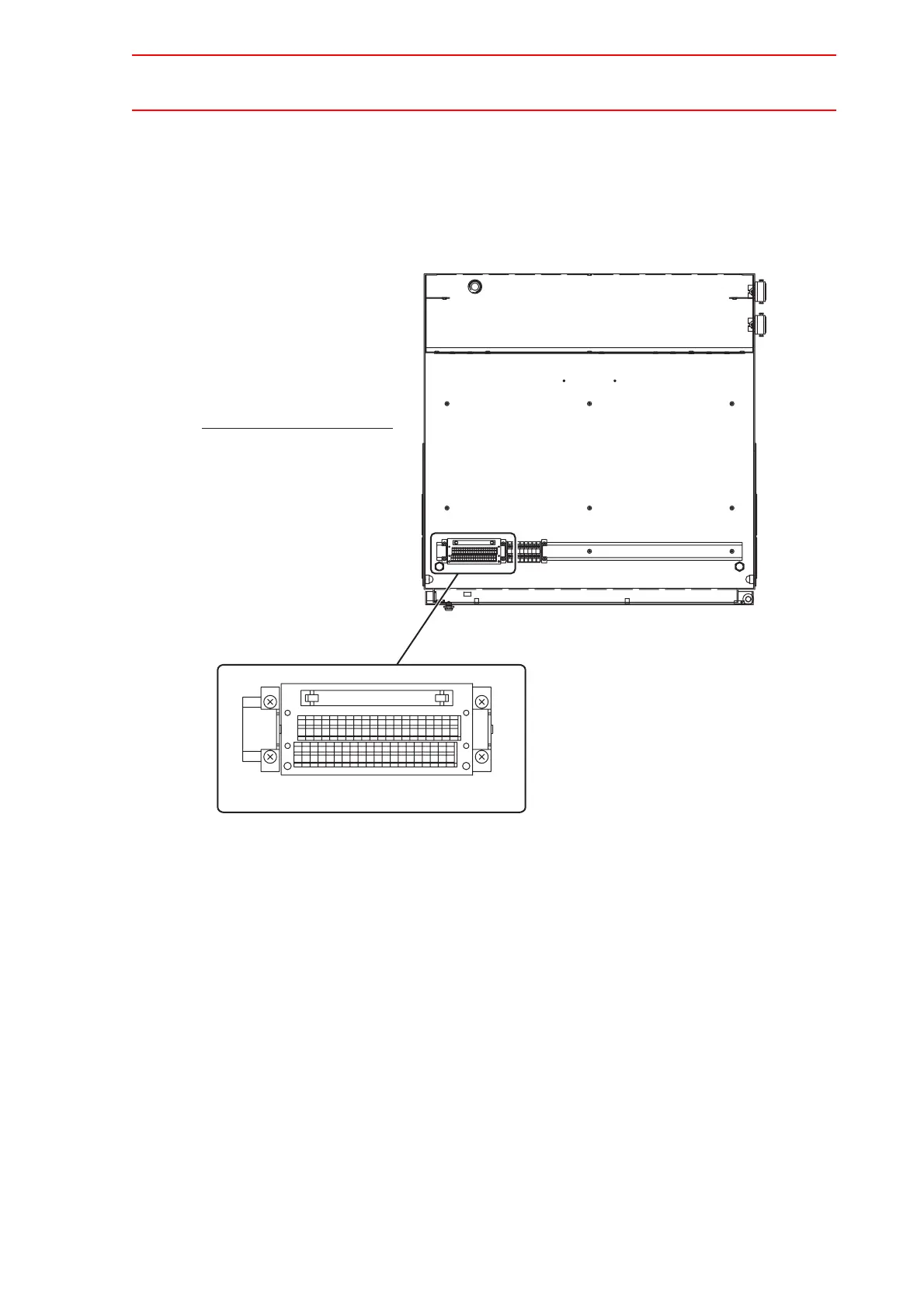

NX100 Inside Bottom Face
(The figure shows the bottom face
of the NX100 inside viewed from
the angle looking down from the
top.)

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
