YASKAWA NX100 Instructions

13.5 SERVOPACK
13-36

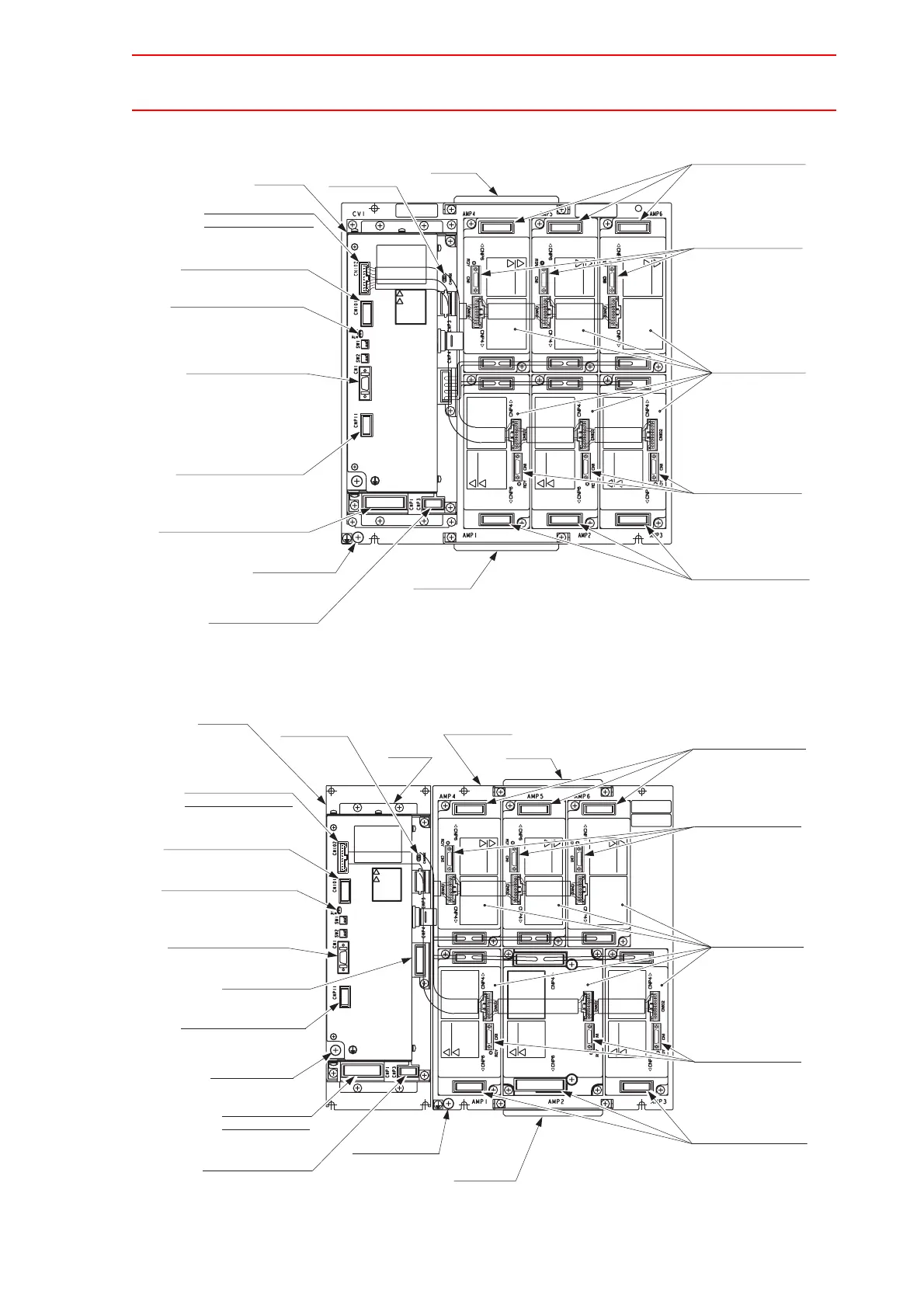

SERVOPACK Configuration for HP3, HP6 and EA1400N
SERVOPACK Configuration for HP20 and EA1900N
Charge Lamp
Converter
Top Grip
Monitor Alarm Display LED
(CN1)
Converter Control Signal
(CN101)
DC Control Power Supply
(CNP1)
Three-phase AC Power Supply
(CNP3)
Regenerative Resistor
Ground Terminal
Bottom Grip
(CNP11)
AC Control Power Supply
(AMP4 to AMP6-CNP6)
Motor Power Output
(AMP4 to AMP6-CN1)
PWM Signal
(AMP1 to AMP3-CN1)
PWM Signal
(AMP1 to AMP3-CNP6)
Motor Power Output
PWM Amplifier X6
(CN102)
PWM Amplifier
Control Power Supply
PWM Amplifier X6
SERVOPACK
(CNP4)
PN Power Supply
Monitor Alarm Display LED
(CN1)
Converter Control Signal
(CN101)
DC Control Power Supply
(CN102)
PWM Amplifier
Control Power Supply
Ground Terminal
(CNP3)
Regenerative Resistor
(CNP1)
Three-phase
AC Power Supply
(CNP11)
AC Control Power Supply
(AMP1 to AMP3-CN1)
PWM Signal
(AMP1 to AMP3-CNP6)
Motor Power Output
(AMP4 to AMP6-CN1)
PWM Signal
(AMP4 to AMP6-CNP6)
Motor Power Output
Charge Lamp
Converter
Top Grip
Top Grip
Ground Terminal
Bottom Grip

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
