YASKAWA NX100 Instructions

4.3 Connection Methods
4-10
4.3.2 Connecting the Manipulator Cable
1. Remove the package, and take out the manipulator cable. Connect the cable to the
connectors on each side of NX100.

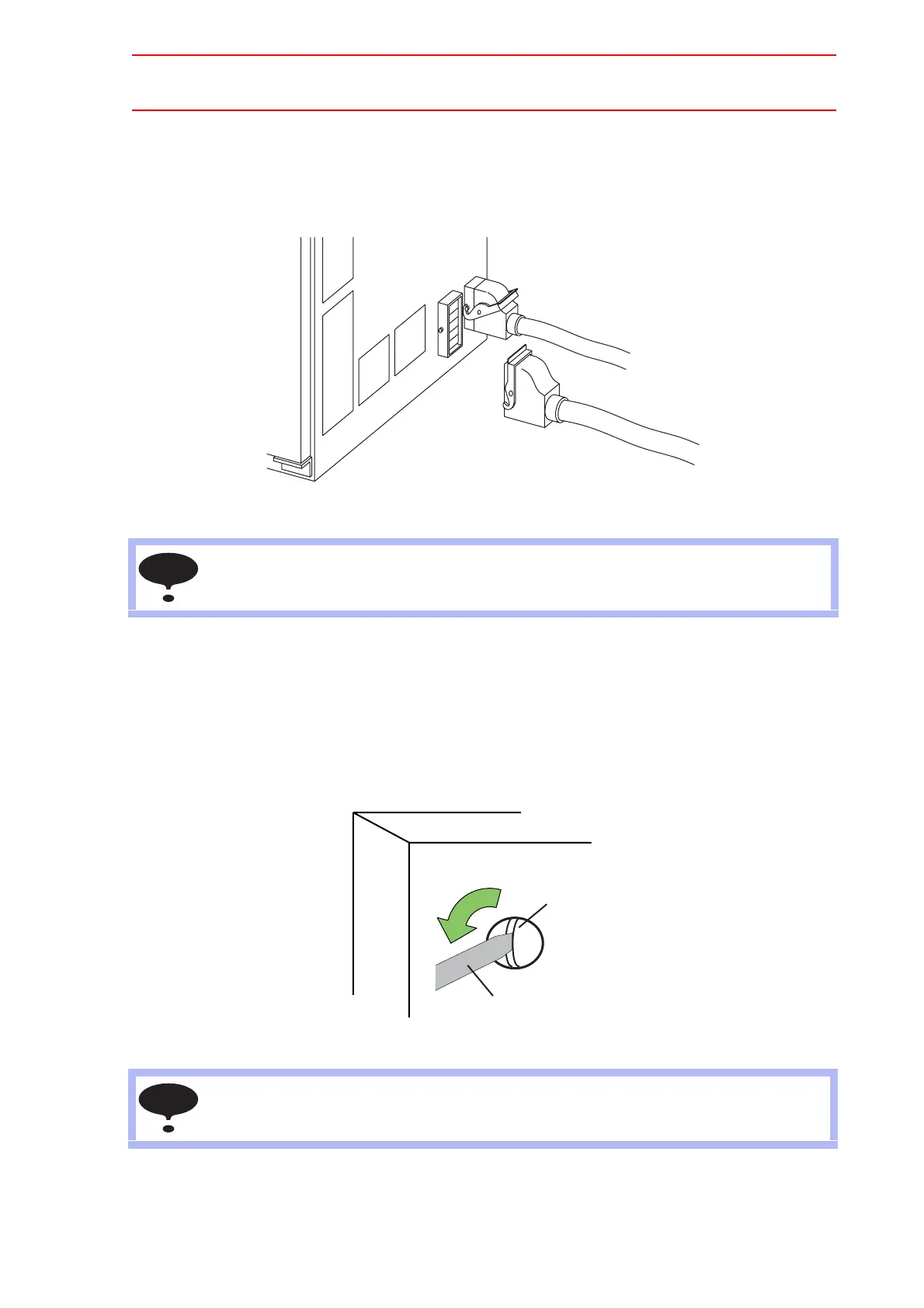

Connection of the Manipulator Cable
2. Connect the manipulator to the NX100.
Confirm the shape and size of the cable connector, the key fitting, and the position of
the pins of the manipulator. Push the cable connector into the manipulator side con-
nector firmly, and tighten securely.
3. Close the NX100 door.
(1) Close the door gently.
(2) Rotate the door lock counterclockwise 90 degrees.
Rotating the Door Lock Counterclockwise
For more information on connecting the manipulator cable, please refer to the Instruction
Manual which corresponds to the particular NX100 model.
Close the door of the controller (NX100) securely to prevent dust from entering.
NOTE
counterclockwise 90
(-)screwdriver
door lock
NOTE

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
