YASKAWA NX100 Instructions

8.1 Home Position Calibration
8-5

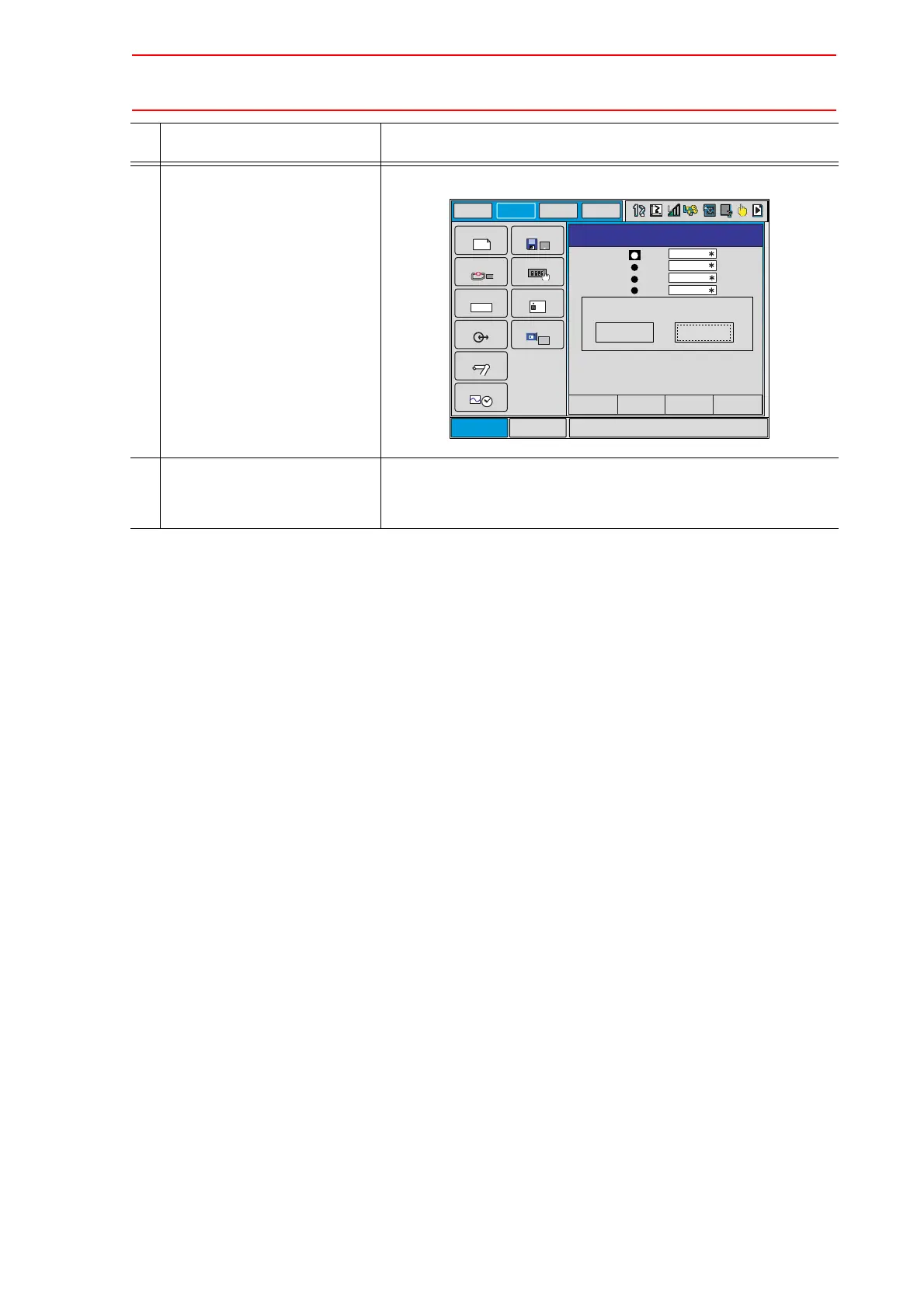

6 Select {SELECT ALL AXES}. The confirmation dialog box appears.
7 Select {YES}. Displayed position data of all axes are registered as home posi-
tion.
When {NO} is selected, the registration will be canceled.
Operation Explanation
Main Menu
Short Cut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
CF
FD/CF
SETUP
PARAMETER
DISPLAY SETUP
Aa
DATA
EDIT
DISPLAY
UTILITY
T
PAGE
HOME POSITIONING
SELECT
ABSOLUTE DATA
R1:S
L
U
R
B
T
¡
¡
YES
NO
Create home position?

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
