YASKAWA NX100 Instructions

8.3 Tool Data Setting
8-31
8 (Continued from the previous
page.)
When all the measurements are completed or when all the
““marks have changed into ““, the measured data appears on
the screen.
9 Select “REGISTER”. The measured data is registered in the tool file, and the coordi-
nate window appears. Select “CANCEL” to call up the TOOL win-
dow without registering the measured data in the tool file.

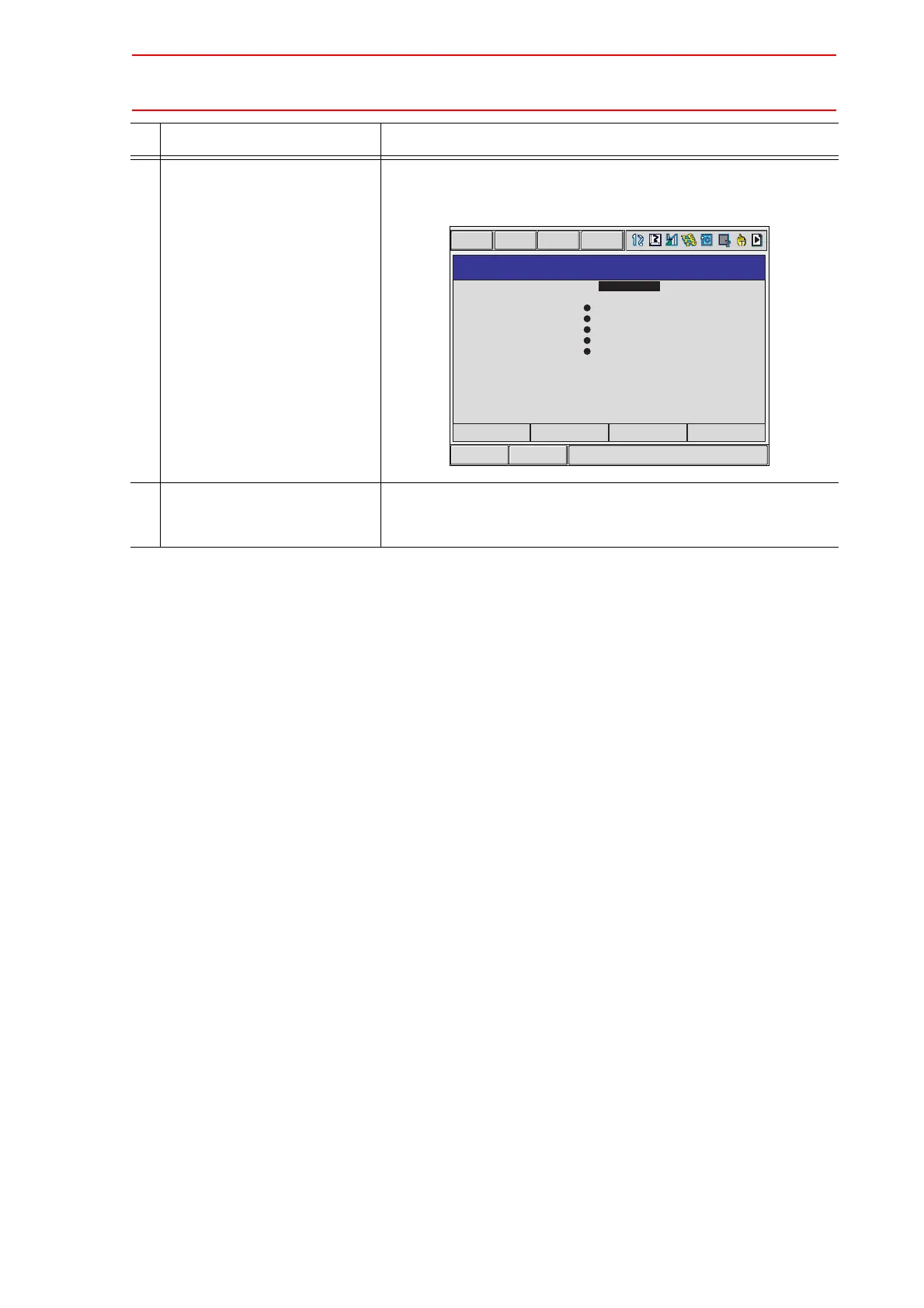

Operation Explanation
Short CutMain Menu
W.GRAV.POS MEASURE
DATA EDIT DISPLAY UTILITY
TOOL NO. : 00
:
:
:
:
:
<STATUS>
HOME
U
B
T(1)
T(2)
W
Xg
Yg
Zg
R2
:
kg
mm
mm
mm
LOAD SETTING ON U-ARM NOT CONSIDER
4.513
10.112
10.435
55.123
CANCELCOMPLETE PAGE

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
