Example: As shown in Figure 68 , ZXR10 GER is interconnected
to non-channelized E1 interfaces of another ZXR10 GER in a
binding manner. PPP serves as the L2 WAN encapsulation
protocol.

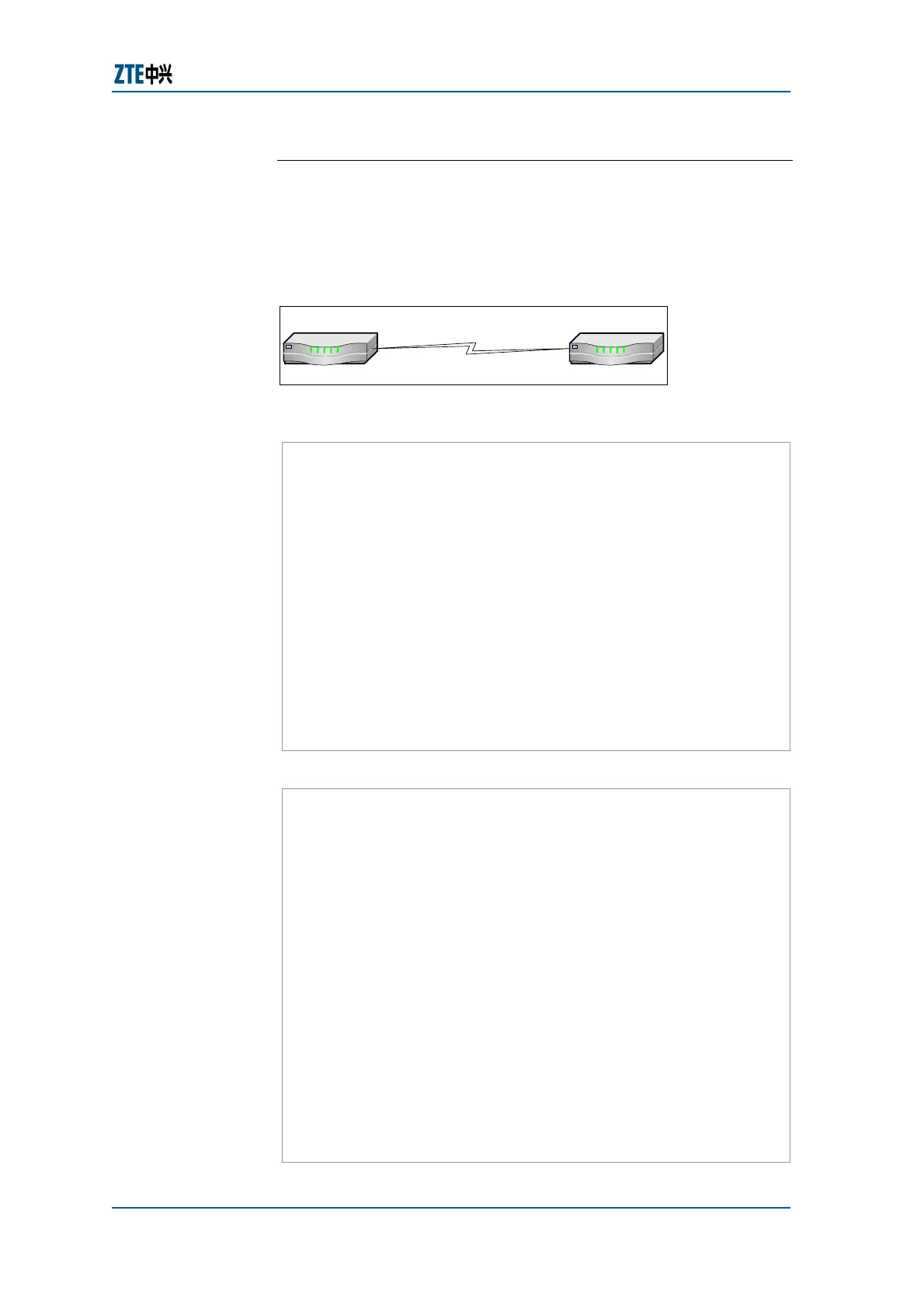

FIGURE 68 MULTILINK CONFIGURATION EXAMPLE
ZXR10
(
1
)
ZXR10
(
2
)
Multi_8/1
192.168.1.1
/
30
192.168.1.2/30
Multi_7/1
Configuration of ZXR10 GER (A):
ZXR10(1)(config)#interface multilink1
ZXR10(1) (config-if)#ip address 192.168.1.1 255.255.255.252
ZXR10(1) (config)# controller ce1_8/1
ZXR10(1) (config-control)#framing unframe
ZXR10(1) (config)#interface ce1_8/1.1
ZXR10(1) (config-if)#multilink-group multi_8/1
ZXR10(1) (config)#controller ce1_8/2
ZXR10(1) (config-control)#framing unframe
ZXR10(1) (config)#interface ce1_8/2.1
ZXR10 (1) (config-if) #multilink-group multi_8/1......
ZXR10(1) (config)#controller ce1_8/8
ZXR10(1) (config-control)#framing unframe
ZXR10(1) (config)#interface ce1_8/8.1
ZXR10(1) (config-if)#multilink-group multi_8/1
Configuration of ZTE ZXR10 GER (2):
ZXR10(2)(config)#interface multi_7/1
ZXR10(2) (config-if)#ip address 192.168.1.2 255.255.255.252
ZXR10(2) (config)#controller ce1_7/1
ZXR10(2) (config-control)#framing unframe
ZXR10(2) (config)#interface ce1_7/1.1
ZXR10(2) (config-if)#multilink-group multi_7/1
ZXR10(2) (config)#controller ce1_7/2
ZXR10(2) (config-control)#framing unframe
ZXR10(2) (config)#interface ce1_7/2.1
ZXR10(2) (config-if)#multilink-group multi_7/1
......
ZXR10(2) (config)#controller ce1_7/8
ZXR10(2) (config-control)#framing unframe
ZXR10(2) (config)#interface ce1_7/8.1
ZXR10(2) (config-if)#multilink-group multi_7/1
