Chapter 7 V_Switch Configuration
Confidential and Proprietary Information of ZTE CORPORATION 121

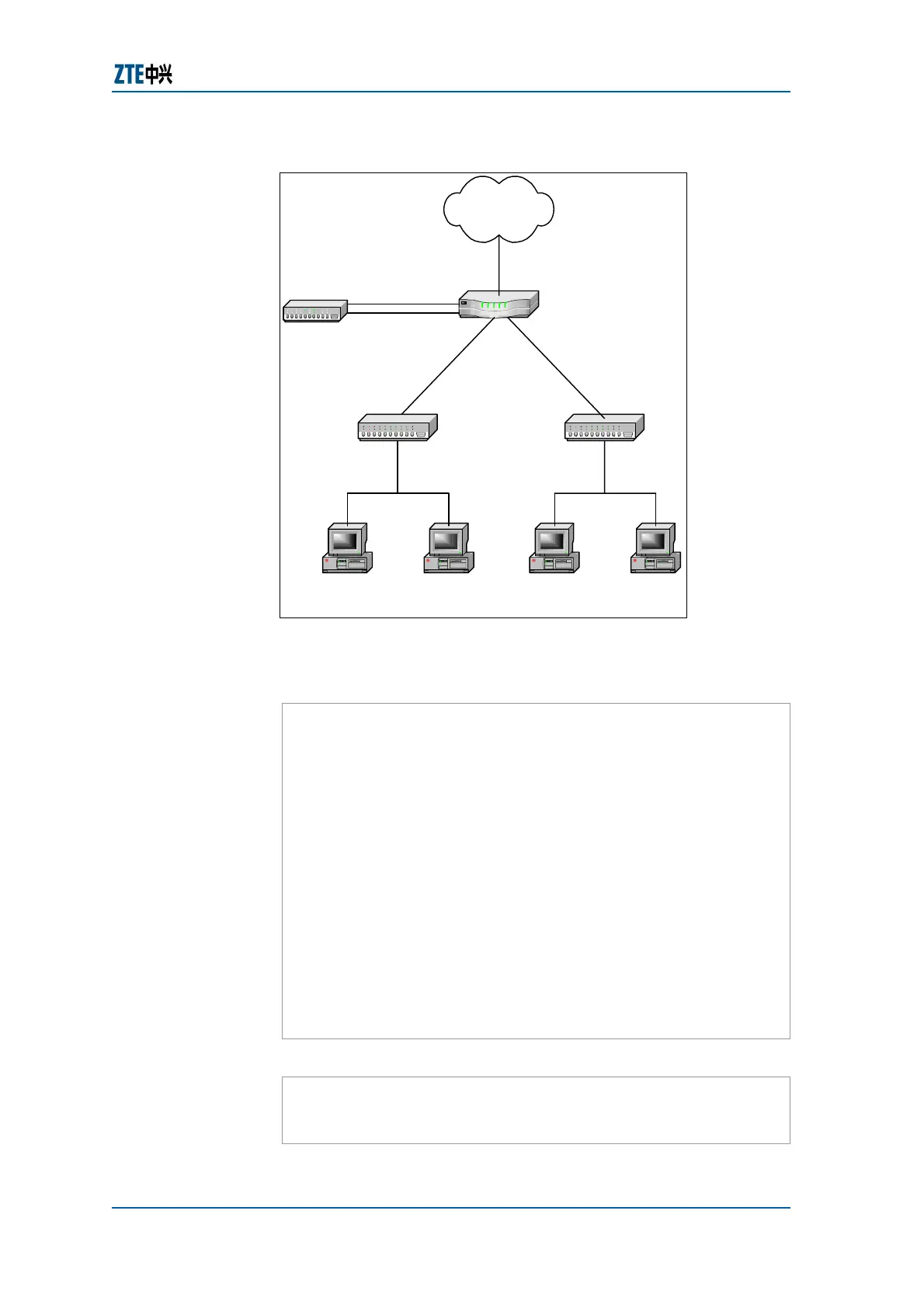

FIGURE 71 V_SWITCH CONFIGURATION EXAMPLE
Dedicated
line user
ZXR10
Internet
PPPoE user PPPoE user
Switch Switch
Fei_1/1
Fei_1/2
Fei_1/3
Fei_1/4
BAS
Dedicated
line user
There are two methods for ZXR10 configuration.
Method 1:
ZXR10(config)#interface fei_1/3
ZXR10(config-if)#ip forwarding-mode vlan-switch
ZXR10(config)#interface fei_1/1
ZXR10(config-if)#ip forwarding-mode vlan-switch
ZXR10(config)# vlan-
f
orwarding ingress fei
_
1/1 10
egress fei_1/3 20 range 10
ZXR10(config)#interface fei_1/4
ZXR10(config-
i
f)#ip address 192.168.1.1
255.255.255.252
ZXR10(config)#interface fei_1/2.30
ZXR10(config-subif)#encapsulation dot1q 30
ZXR10(config-
s
ubif)#ip address 10.1.1.1
255.255.255.192
ZXR10(config)#interface fei_1/2.31
ZXR10(config-subif)#encapsulation dot1q 31
ZXR10(config-
s
ubif)#ip address 10.1.1.65
255.255.255.192
Method 2:
ZXR10(config)#interface fei_1/3
ZXR10(config-if)#ip forwarding-mode vlan-switch
ZXR10(config)#interface fei_1/1
