ZXR10 GER (V2.6.03) General Excellent Router User Manual Volume-I
40 Confidential and Proprietary Information of ZTE CORPORATION
RE-16FE-RJDB44
This is sixteen-port 100M Ethernet electrical interface providing
sixteen 10/100/1000BASE-T Ethernet electrical interfaces of
RJ45 , the cable(H-ETH-008) is special that GER can use it.

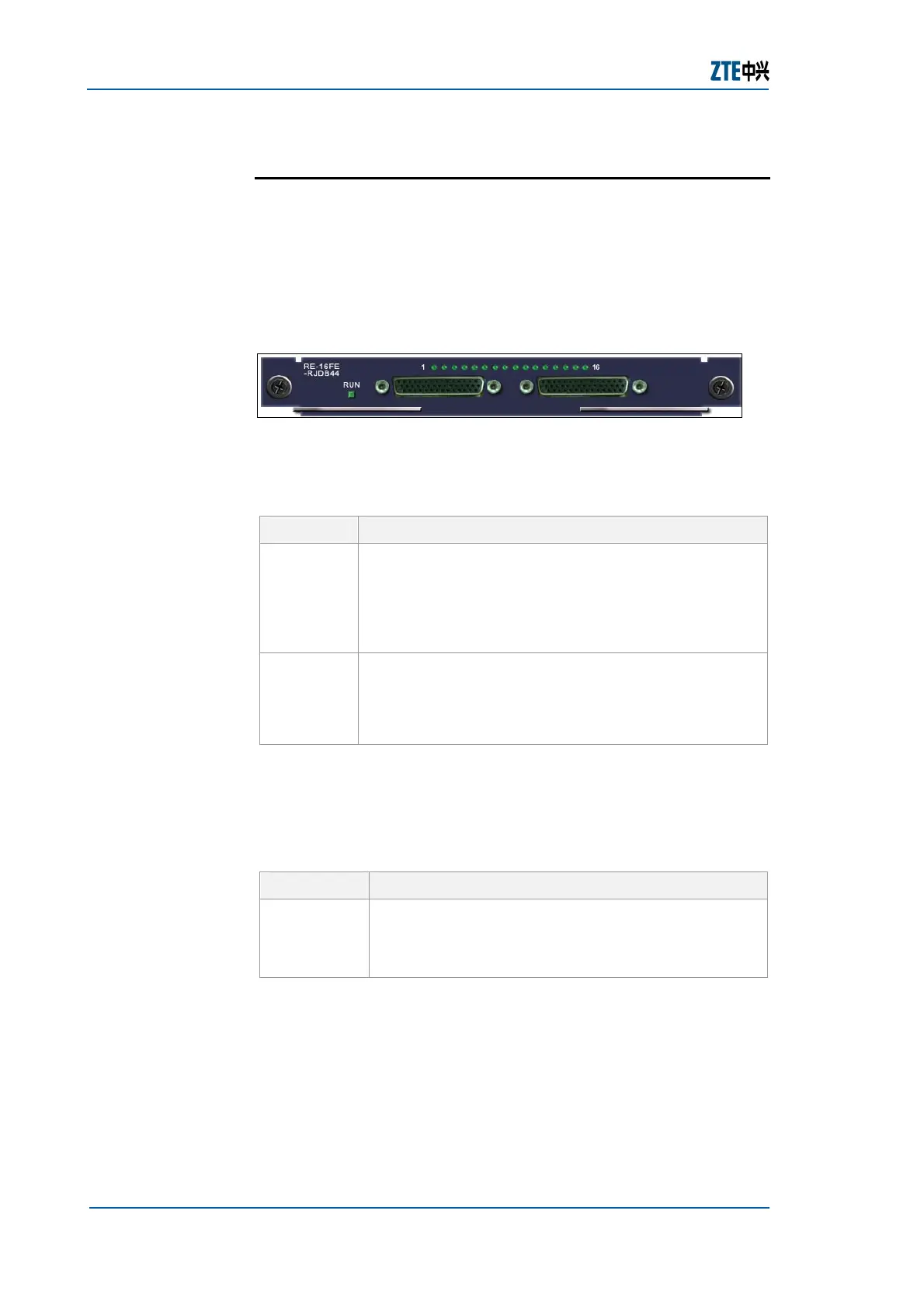

Figure 28 shows RE-16FE-RJDB44 card
FIGURE 28 PANEL VIEW OF THE RE-16FE-RJDB44
Table 43 shows interface features of RE-16FE-RJDB44 card.
TABLE 43 INTERFACE FEATURES OF THE RE-16FE-RJDB44 CARD
Port Type Description
10Base-T
In compliance with IEEE 802.3;
From DB44 to RJ45 connector;
Category-3,4,5 Unshielded Twisted Pairs (UTP) are
used;
Maximum transmission distance: 185m
100Base-T
In compliance with IEEE 802.3u;
From DB44 to RJ45 connector;
Category 5 Unshielded Twisted Pairs (UTP) are used;
Maximum transmission distance: 100m
RE-16FE-RJDB44 card panel has one LED indicators each port,
Table 44 describes their functions.
TABLE 44 DESCRIPTION OF INDICATORS ON THE RE-02GE CARD PANEL
Indicators Function Description
Port
Indicators
Link state indicator: It is on when the link is normal
and there is no data to send or receive. It flashes
when sending or receiving data. It is off when the link
is disconnected.
Power Supply Module
Application requirements for general routers are fully considered
in the design of ZXR10 GER system. To satisfy the strict
requirements on equipment reliability for telecommunications,
Definition
Panel
Interfaces
Indicators
Power Supply
Units
