TABLE 36 RE-08FE-E100RJ CARD INTERFACE FEATURES
Port Type Description
10Base-T
In compliance with IEEE 802.3;
RJ45 connector;
Category-3, 4 and 5 Unshielded Twisted Pairs (UTP)
are used;
Maximum transmission distance: 185m
100Base-TX
In compliance with IEEE 802.3u;
RJ45 connector;
Category-5 Unshielded Twisted Pairs (UTP) are used;
Maximum transmission distance: 100 m
Note: When the10/100Base-TX port is interconnected with a hub,
switch or router, a crossover cable should be used; when it is
interconnected with a host, a straight-through cable should be used.
There are two indicators on the higher part of each interface on
the E-08FE-E100RJ card (one is on the left and the other is on
the right).
Table 37 shows their functions.
TABLE 37 RE-08FE-E100RJ CARD INDICATORS
Indicators Function Description
Upper left
indicator on each
port (yellow)
Indicates the connection status of the current
link. When it is on, it indicates the connection
has been established.
Upper right
indicator on each
port (green)
Indicates the wire speed of the current link.
When it is on, it indicates the wire speed of
100M, when it is off, it indicates the wire speed
of 10M
RE-08FE-SFP
It is an eight-port fast Ethernet optical interface card and
provides eight 100Base-FX optical ports. In addition, it can
select SFX optical modules for its own use.
Figure 25 shows RE-08FE-SFP card.

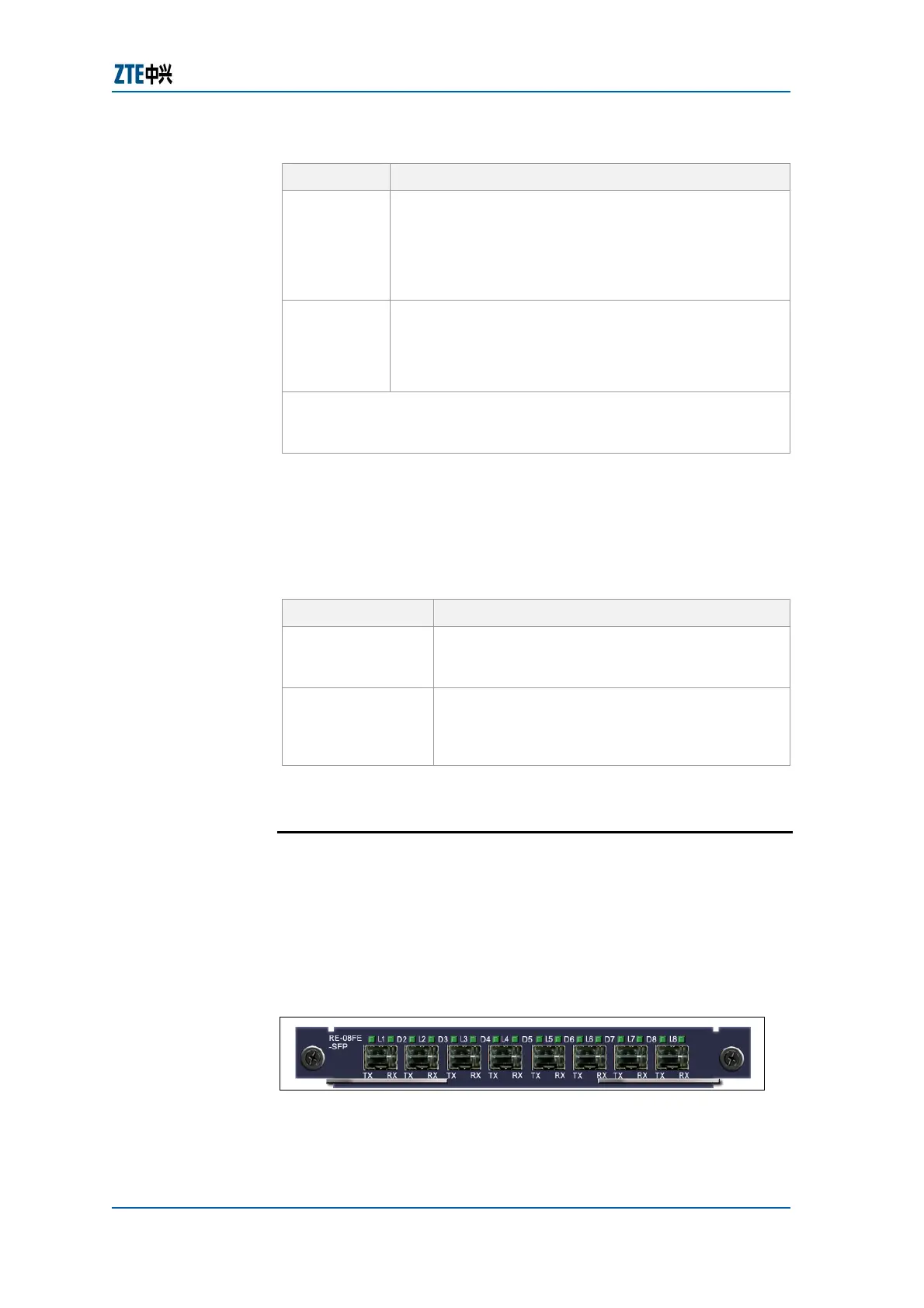

FIGURE 25 RE-08FE-SFP CARD
RE-08FE-SFP card adopts 100Base-FX as its interface.
Indicators
Definition
Panel
Interfaces
