TABLE 34 RE-04P3-SFP CARD INTERFACE FEATURES
Port Type Description
SFP-2KM
LC connector, multi-mode fiber. Wavelength: 1310 nm.
Max. transmission distance: 2km
SFP-15KM
LC connector, single-mode fiber. Wavelength: 1310
nm. Max. transmission distance: 15km
SFP-40KM
LC connector, single-mode fiber. Wavelength: 1310
nm. Max. transmission distance: 40km
SFP-80KM
LC connector, single-mode fiber. Wavelength: 1550
nm. Max. transmission distance: 80 km
There is one RUN indicator on the RE-04P3-SFP card panel. In
addition, each port has two indicators.
Table 35 shows their
functions.
TABLE 35 RE-04P3-SFP CARD INDICATORS
Indicators Function Description
RUN
It is constantly on if the interface card works
normally, and it goes off if the interface card fails.
DATA per
port
Interface data indicator: It is constantly on in the
case of data sending and receiving, and it is off in the
case of no data sending or receiving.
LINK per
port
Link indicator: It is constantly on in the case of
successful PPP link setup, and it is off in the case of
PPP link setup failure.
RE-08FE-E100RJ
It is an eight-port fast Ethernet interface card and provides eight
10/100Base-TX adaptive electrical interfaces.

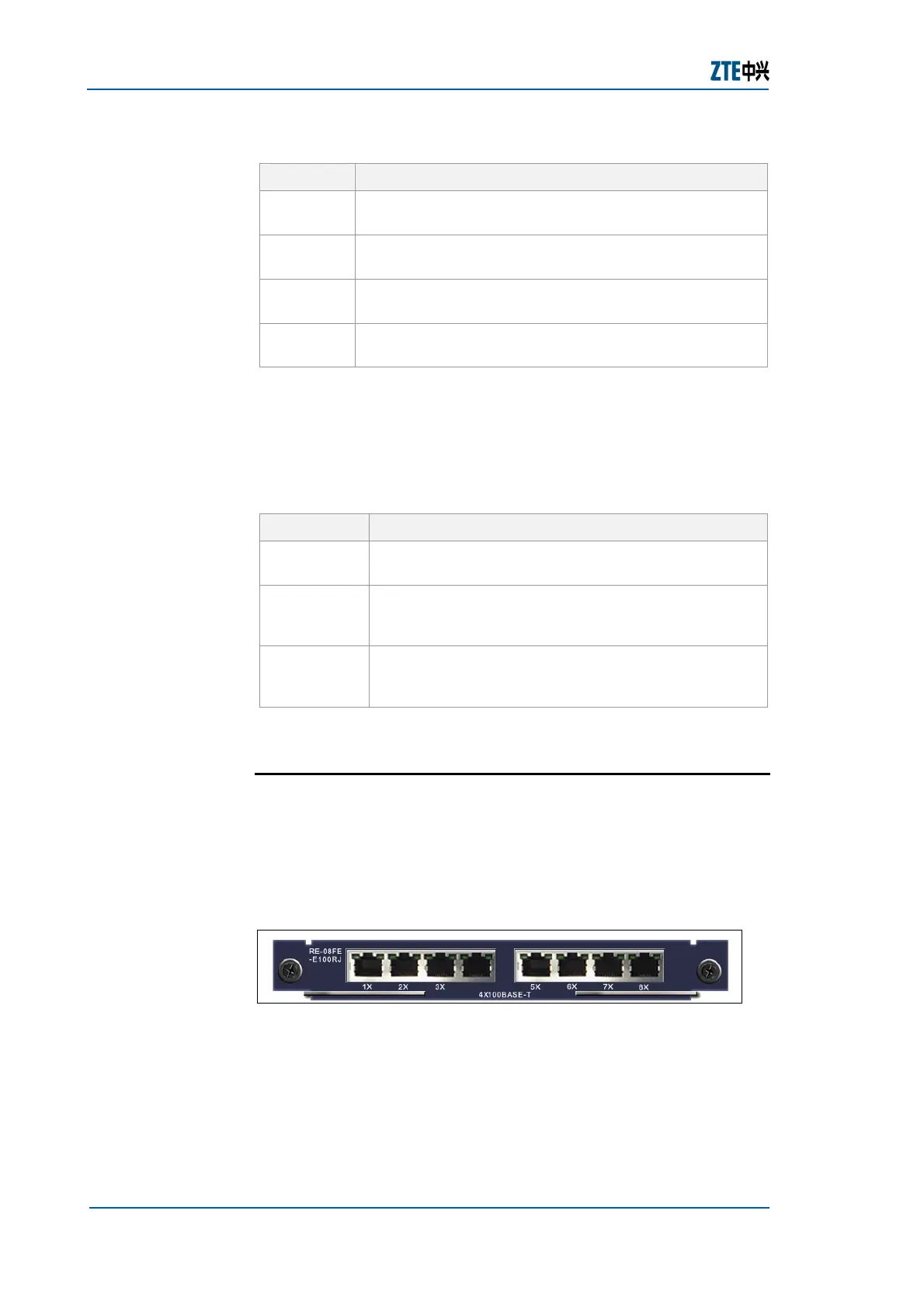

Figure 24 shows RE-08FE-E100RJ card.
FIGURE 24 RE-08FE-E1000RJ CARD
Table 36 shows RE-08FE-E100RJ card interface features.
