Chapter 14 OSPF Configuration
Confidential and Proprietary Information of ZTE CORPORATION 203
Refer to below procedure for configuration of OSPF virtual links.
 Router Command Line Interface has been accessed.
 OSPF is running on a network as described in above basic
OSPF configuration.
1. For virtual link configuration, use area <area-id> virtual-
link <router-id> [hello-interval <seconds>] [retransmit-
interval <seconds>] [transmit-delay <seconds>] [dead-
interval <seconds>] [authentication-key <key>] [message-
digest-key <keyid> md5 <cryptkey> [delay <time>]]
command in OSPF route mode as shown in
Table 248.
TABLE 248 VIRTUAL LINK COMMAND
Command Format
Command
Mode
Command
Function
area <area-id> virtual-link
<router-id> [hello-interval
<seconds>] [retransmit-
interval <seconds>]
[transmit-delay <seconds>]
[dead-interval <seconds>]
[authentication-key <key>]
[message-digest-key
<keyid> md5 <cryptkey>
[delay <time>]]
OSPF Route
This defines an
OSPF virtual link
(if designated
area does not
exist, an area
will be created
automatically)
Result: This established a virtual link.
E
ND OF STEPS

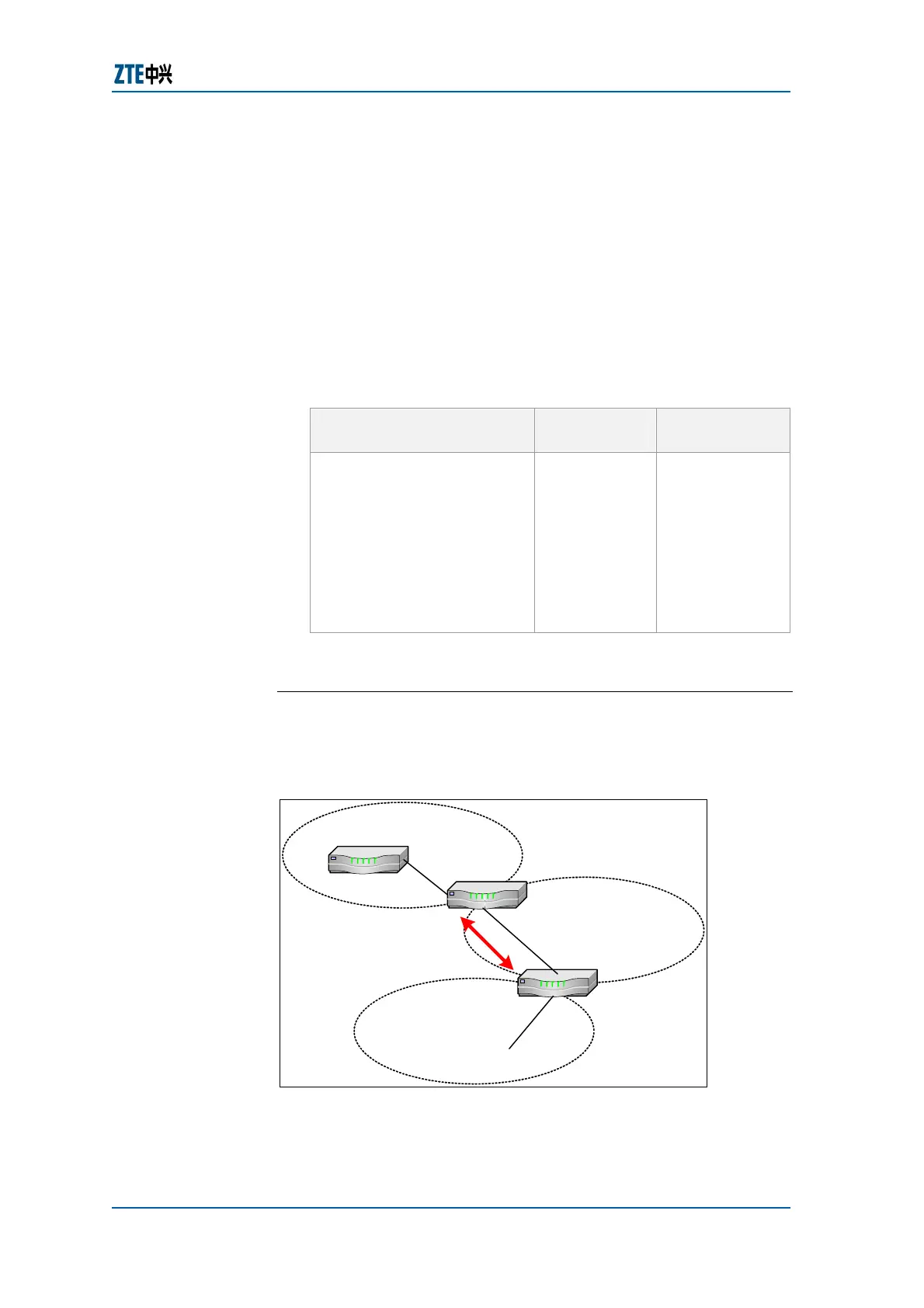

Example: Figure 90 shows an example of OSPF virtual link
configuration.
FIGURE 90 OSPF VIRTUAL LINK CONFIGURATION
R1
R2
R3
Area 0
Area 1
Area 2
10.0.0.1/24
10.0.0.2/24
10.0.1.1/30
10.0.1.2/30
10.0.2.1/24
Virtual link
Detailed configuration of each router is as follows.
Configuration of R1:
