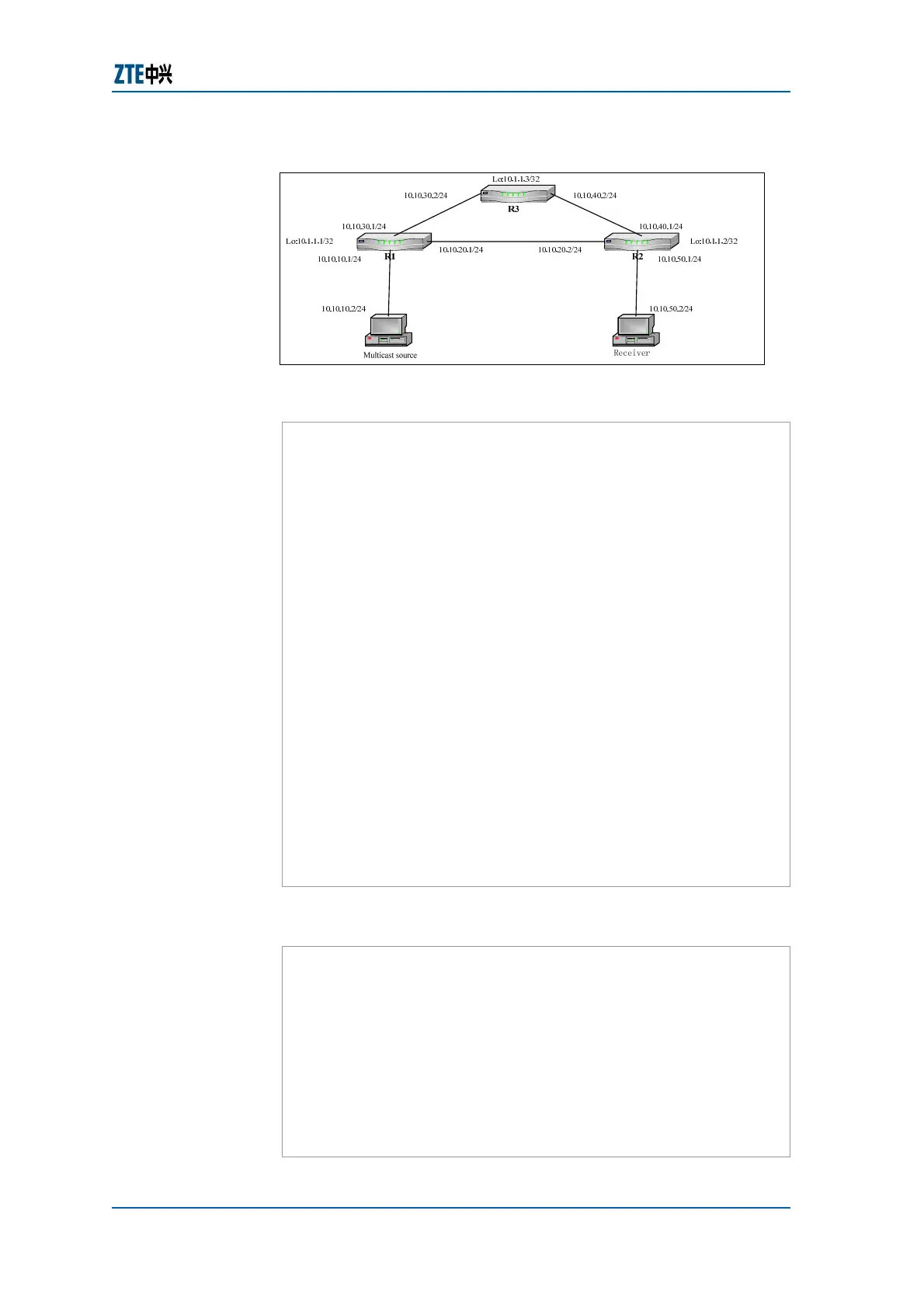

FIGURE 111 MULTICAST CONFIGURATION EXAMPLE
R1 configuration:
ZXR10_R1(config)#interface loopback1
ZXR10_R1(config-if)#ip address 10.1.1.1
255.255.255.255
ZXR10_R1(config)#interface fei_1/1
ZXR10_R1(config-if)#ip address 10.10.10.1
255.255.255.0
ZXR10_R1(config-if)#ip pim sm
ZXR10_R1(config)#interface fei_1/2
ZXR10_R1(config-if)#ip address 10.10.20.1
255.255.255.0
ZXR10_R1(config-if)#ip pim sm
ZXR10_R1(config)#interface fei_1/3
ZXR10_R1(config-if)#ip address 10.10.30.1
255.255.255.0
ZXR10_R1(config-if)#ip pim sm
ZXR10_R1(config)#router ospf 1
ZXR10_R1(config-router)#network 10.0.0.0
255.255.255.0 area 0.0.0.0
ZXR10_R1(config)#ip multicast-routing
ZXR10_R1(config)#router pimsm
ZXR10_R1(config-router)#rp-candidate loopback1
priority 10
ZXR10_R1(config-router)#bsr-candidate loopback1
10 10
R2 configuration:
ZXR10_R2(config)#interface loopback1
ZXR10_R2(config-
i
f)#ip address 10.1.1.2
255.255.255.255
ZXR10_R2(config)#interface fei_1/1
ZXR10_R2(config-
i
f)#ip address 10.10.20.2
255.255.255.0
ZXR10_R2(config-if)#ip pim sm
ZXR10_R2(config)#interface fei_1/2
