Chapter 3 Structure and Principles
Confidential and Proprietary Information of ZTE CORPORATION 35
TABLE 32 RE-02P12-SFP CARD INTERFACE FEATURES
Port Type Description
SFP-2KM
LC connector, multi-mode fiber. Wavelength: 1310
nm. Max. transmission distance: 2km
SFP-15KM
LC connector, single-mode fiber. Wavelength: 1310
nm. Max. transmission distance: 15km
SFP-40KM
LC connector, single-mode fiber. Wavelength: 1310
nm. Max. transmission distance: 40km
There is one RUN indicator on the RE-02P12-SFP card panel. In
addition, each port has two indicators.
Table 33 shows their
functions.
TABLE 33 RE-02P12-SFP CARD INDICATORS
Indicators Function Description
RUN
It is constantly on if the interface card works normally,
and it goes off if the interface card fails.
DATA per
port
Interface data indicator: It is constantly on in the case
of data sending and receiving, and it is off in the case
of no data sending or receiving.
LINK per
port
Link indicator: It is constantly on in the case of
successful PPP link setup, and it is off in the case of
PPP link setup failure.
RE-04P3-SFP
This is a four-port POS3 optical interface card, providing four-
channel standard OC-3c/STM-1c POS optical interface. It mainly
implements optical/electrical signal conversion, clock and data
recovery of the line, and POS Mapper function of the OC-3c.

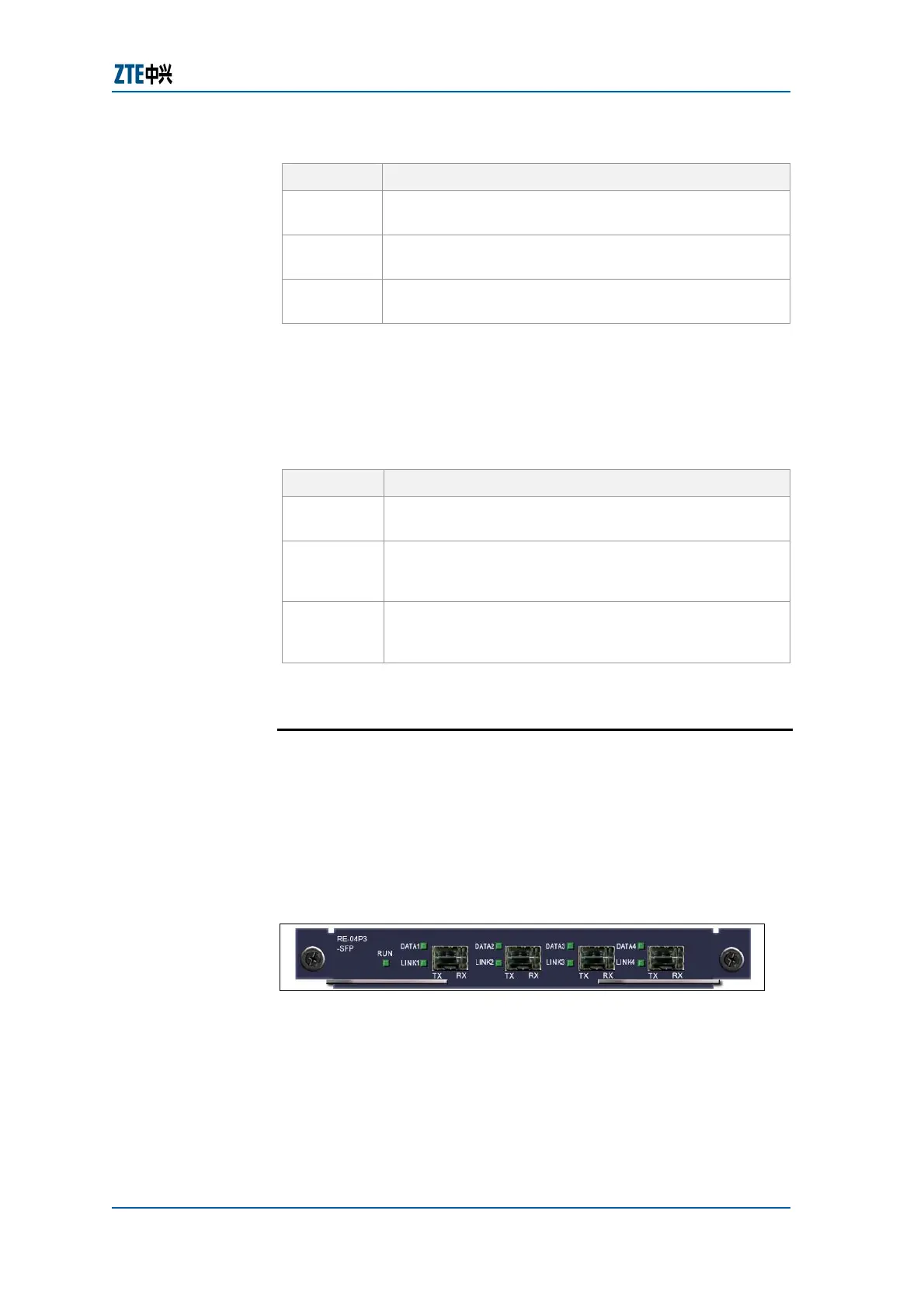

Figure 23 shows RE-04P3-SFP Card.
FIGURE 23 RE-04P3-SFP CARD
RE-04P3-SFP card can provide four-channel optical interface with
different transmission distances by configuring SFP parts of
different specifications. Interface features are shown in
Table 34.
Indicators
Definition
Panel
Interfaces
