must be in the same network section and can interwork with the
100M interface of R3 through bridge encapsulation.

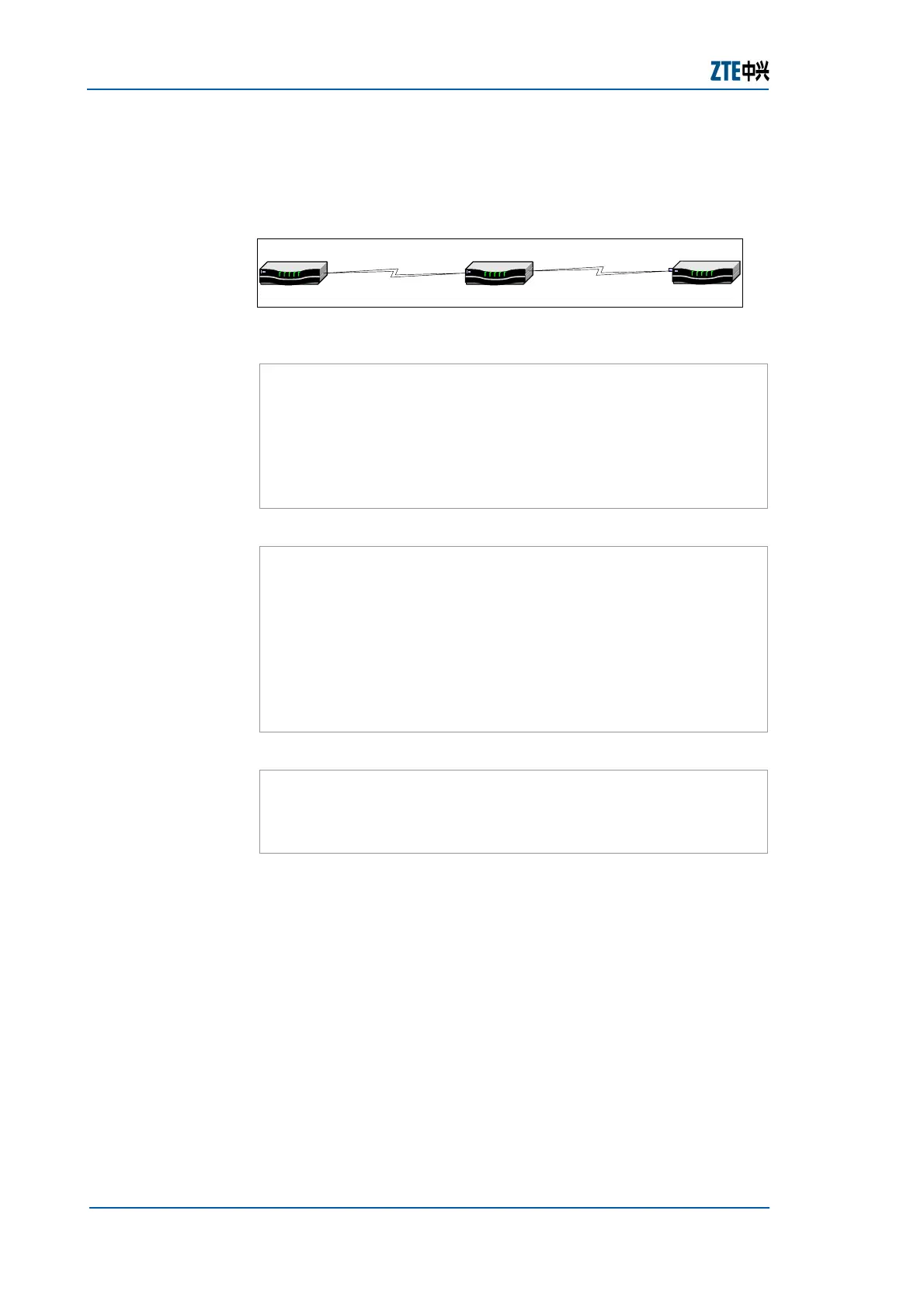

FIGURE 79 ATM INTERFACE BRIDGE CONFIGURATION EXAMPLE
R1 R2
atm155_6/1.1:1
atm155_6/1.1
192.168.1.1/30
R3
fei_1/1.100
fei_1/1.100
192.168.1.2/30
R1 configuration:
ZXR10_R1(config)#interface atm155_6/1.1
ZXR10_R1(config-if)#atm pvc 100 100
ZXR10_R1(config-if)#exit
ZXR10_R1(config)#interface atm155_6/1.1:1
ZXR10_R1(config-subif)#encapsulation dot1Q 1
ZXR10_R1(config-subif)#ip address 192.168.1.1
255.255.255.252
R2 configuration:
ZXR10_R2(config)#interface atm155_6/1.1
ZXR10_R2(config-if)# atm pvc 100 100
ZXR10_R2(config-if)#ip forwarding-mode mix
ZXR10_R2(config-if)#exit
ZXR10_R2(config)#interface fei_1/1
ZXR10_R2(config-if)#ip forwarding-mode mix
ZXR10_R2(config-if)#exit
ZXR10_R2(config)#vlan-forwarding ingress
atm155_6/1.1 1 egress fei_1/1 100
R3 configuration:
ZXR10_R3(config)#interface fei_1/1.100
ZXR10_R3(config-subif)#encapsulation dot1Q 100
ZXR10_R3(config-subif)#ip address 192.168.1.2
255.255.255.252
