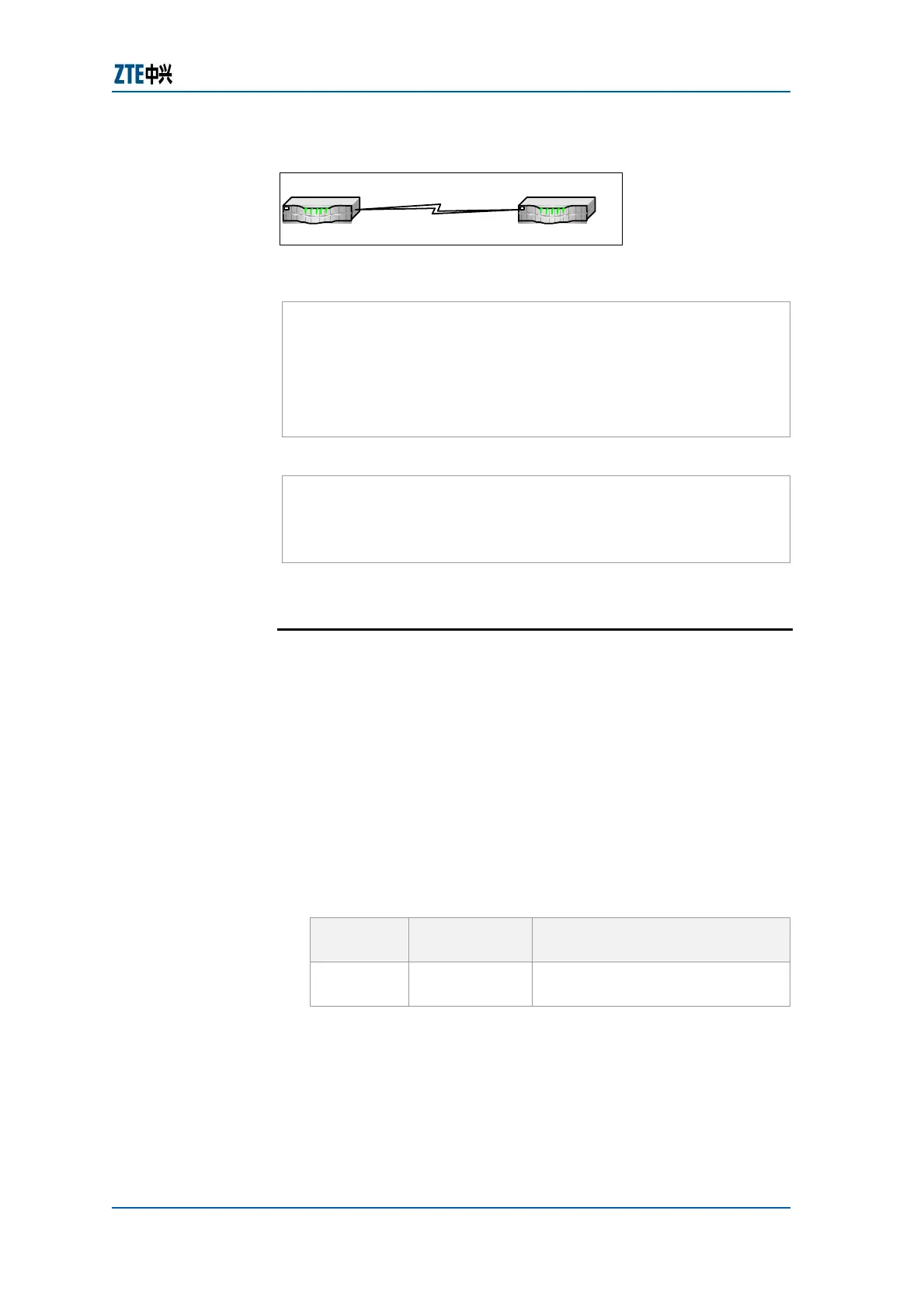

FIGURE 67 SMART-GROUP EXAMPLE
ZXR10 ZXR10 routing switch
smtgtp_8/1
st.1
192.168.1.1/30
192.168.1.2/30
Configuration of ZXR10 GER
ZXR10(config)#interface smartgroup1
ZXR10(config-if)#ip address 192.168.1.1 255.255.255.252
ZXR10(config)#interface fei_8/1
ZXR10(config-if)#smartgroup 1 mode on
ZXR10(config)#interface fei_8/2
ZXR10(config-if)#smartgroup 1 mode on
Configuration of ZXR10 routing switch:
T64C(config)#smarttrunk create st.1 protocol no-protocol
T64C(config)#smarttrunk add ports et.3.1-2 to st.1
T64C(config)#interface create ip to-zxr10 address-netmask
192.168.1.2/30 port st.1
Configuring Multilink
To increase bandwidth, multiple E1 physical links can be bound
into a logical link and logical interface generated in this way is
called multilink interface.
In ZXR10 GER, a multilink interface can be bound with a
maximum of sixteen E1 interfaces in same slot.
This procedure describes how to do multilink on ZTE ZXR10 GER.
Router Command Line Interface has been accessed.
1. To enter into configuration mode, use config terminal
command in privilged mode, as shown in
Table 118.
TABLE 118 CONFIG TERMINAL COMMAND
Command
Format
Command
Mode
Command Function
config
terminal
Exec Enters into global configuration
mode
Result: This enables to enter into global configuration mode.
2. To create multilink interface and to enter into it, use
interface <interface-number> command in global
configuration, as shown in
Table 119.
Background
Purpose
Prerequisite
Steps
