Chapter 6 Interface Configuration
Confidential and Proprietary Information of ZTE CORPORATION 117
ZXR10 configuration:
ZXR10(config)# controller cpos3_1/1
ZXR10(config-control)#clock source internal
ZXR10(config-control)# framing sdh
ZXR10(config-control)# aug mapping au-3
ZXR10(config-control)# au-3 1
ZXR10((config-ctrlr-au3)# tug-2 1 t1 1 fr fr
ZXR10((config-ctrlr-au3)# tug-2 1 t1 1 channel-
group 1 timeslots 1-24
ZXR10((config-ctrlr-au3)#exit
ZXR10(config-control)#exit
ZXR10(config-control)#exit
ZXR10(config-control)#exit
ZXR10(config)#interface cpos3_1/1.1/1/1:1
ZXR10(config-
i
f)#ip address 192.168.1.1
255.255.255.252
ZXR10(config-if)#crc 16
Example of Non-channelized CPOS Interface Configuration
As shown in
Figure 70, the CP3 of a ZXR10 GER router is
interconnected with that of a remote ZXR10 GER router. It
adopts non-channelized configuration, layer-2 WAN
encapsulation protocol PPP, crc16 frame format and internal
clock mode.

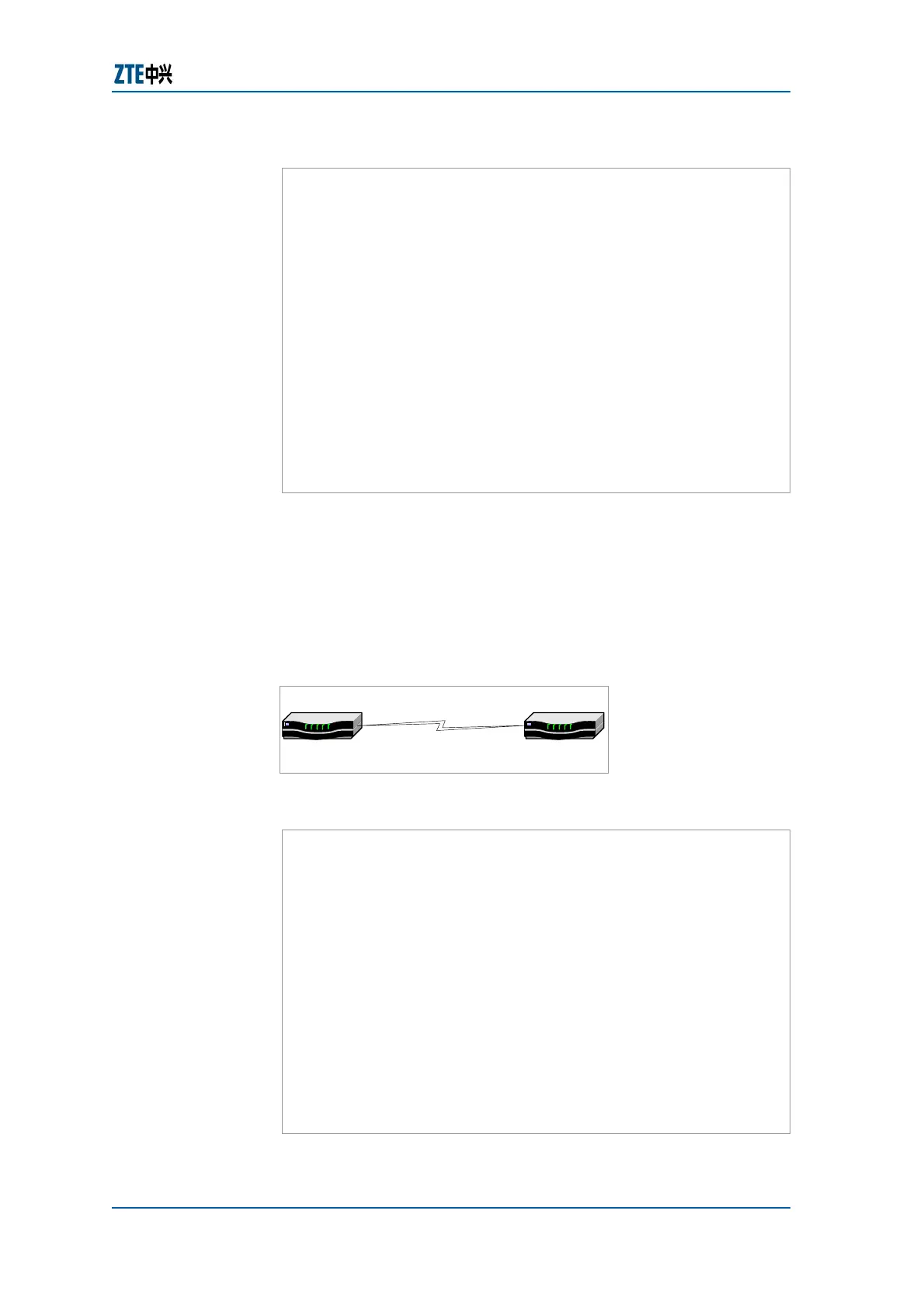

FIGURE 70 EXAMPLE OF NON-CHANNELIZED CPOS CONFIGURATION
ZXR10 ZXR10
cpos3_1/1.1/1/1:1
192.168.1.1/30
192.168.1.2/30
cpos3_1/1.1/1/1:1
ZXR10 configuration:
ZXR10(config)# controller cpos3_1/1
ZXR10(config-control)#clock source internal
ZXR10(config-control)# framing sdh
ZXR10(config-control)# aug mapping au-3
ZXR10(config-control)# au-3 1
ZXR10((config-ctrlr-au3)# tug-2 1
t
1 1 framing
unframe
ZXR10((config-ctrlr-au3)#exit
ZXR10(config-control)#exit
ZXR10(config-control)#exit
ZXR10(config-control)#exit
ZXR10(config)#interface cpos3_1/1.1/1/1:1
ZXR10(config-
i
f)#ip address 192.168.1.1
255.255.255.252
ZXR10(config-if)#crc 16
