Chapter 3 Structure and Principles
Confidential and Proprietary Information of ZTE CORPORATION 25
RE-01CP3-SFP
This is a one-port channelized POS3 interface card (SCP3), which
provides single-port channelized OC3 interfaces. The channel
granular is 2.048MHz.

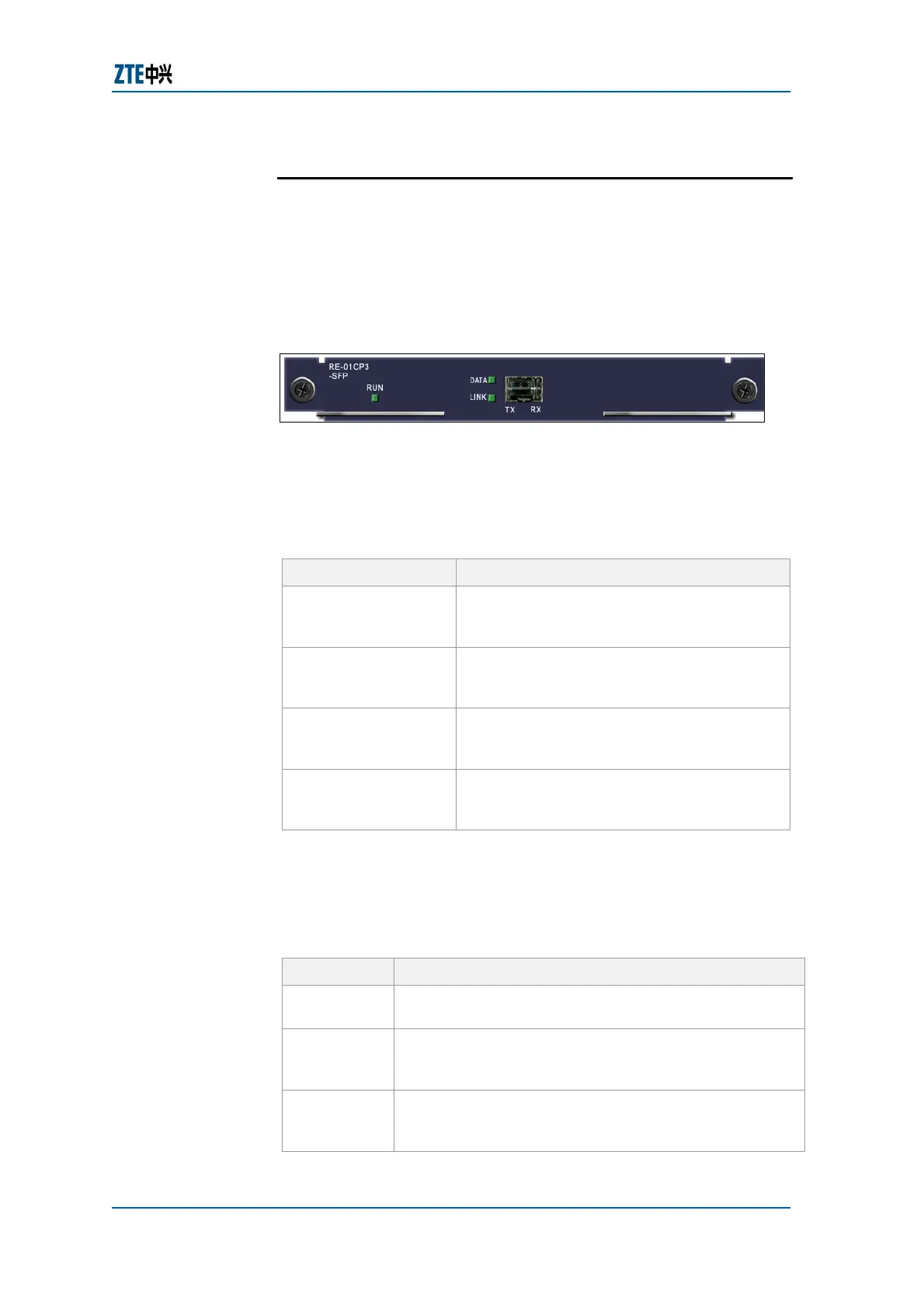

Figure 13 shows the RE-01CP3-SFP card.
FIGURE 13 RE-01CP3-SFP CARD
RE-01CP3-SFP card adopts the SFP optical module and the
supported port types are not identified on the panel.
Table 19
shows the relationship between the port types and features.
TABLE 19 RE-01CP3-SFP INTERFACE FEATURES
SFP Optical Module Feature
SFP-2KM
LC connector, multi-mode fiber.
Wavelength: 1310 nm. Max. transmission
distance: 2km
SFP-15KM
LC connector, single-mode fiber.
Wavelength: 1310 nm. Max. transmission
distance: 15km
SFP-40KM
LC connector, single-mode fiber.
Wavelength: 1310 nm. Max. transmission
distance: 40km
SFP-80KM
LC connector, single-mode fiber.
Wavelength: 1550 nm. Max. transmission
distance: 80 km
RE-01CP3-SFP card has three LED indicators.
Table 20 describes
their functions.
TABLE 20 RE-01CP3-SFP CARD INDICATORS
Indicators Function Description
RUN
This is constantly on if the interface card is working
normally and this goes off if the interface card fails.
DATA
This is constantly on in the case of data sending and
receiving and this is off in the case if data sending or
receiving fails.
LINK
This is constantly on in the case of successful PPP link
setup, and This is off in the case of PPP link setup
failure.
