ZXR10 GER (V2.6.03) General Excellent Router User Manual Volume-I
30 Confidential and Proprietary Information of ZTE CORPORATION
RE-02CE3-75
ZXR10 GER system has two port channelized E3 interface card
which can be inserted in any one of eight slots. This connects
with the SMP board through the backplane.

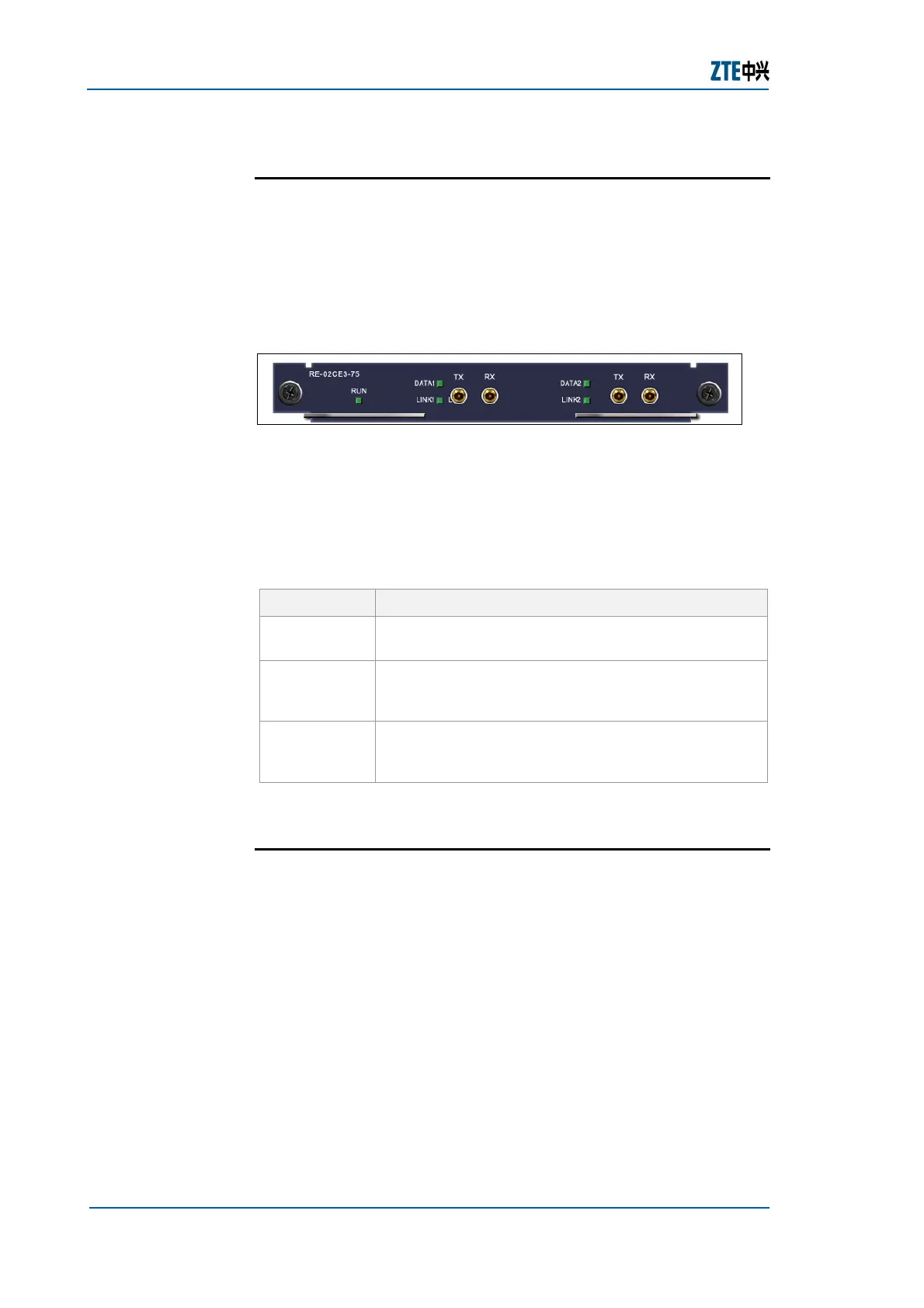

Figure 18 shows the RE-02CE3-75 card.
FIGURE 18 RE-02CE3-75 CARD
RE-02CE3-75 card provides two E3/T3 interfaces. This adopts
the CC-4 connectors and provides 75 ohm coaxial cable
interfaces for users.
There are three LED indicators.
Table 25 shows their functions.
TABLE 25 RE-02CE3-75 CARD INDICATORS
Indicators Function Description
RUN
This is constantly on if the interface card is working
normally, and this goes off if the interface card fails.
DATA per
port
This is constantly on in the case of data sending and
receiving and this is off in the case if data sending or
receiving fails.
LINK per port
This is constantly on in the case of successful PPP
link setup, and This is off in the case of PPP link
setup failure.
RE-02GE
This is a two-port GE electrical/ optical interface board, providing
two 10/100/1000BASE-T Ethernet electrical interfaces of RJ45 or
providing two 1000BASE-X Ethernet optical interfaces of SFP.
Maximum transmission of the optical interface is 120km; board
compliances with IEEE802.3. This board only supports two GE
Ethernet interfaces, so choose either of port (electrical or
optical).
Definition
Panel
Interfaces
Indicators
Definition
Specification
