ZXR10 GER (V2.6.03) General Excellent Router User Manual Volume-I
20 Confidential and Proprietary Information of ZTE CORPORATION
Network processor module consists of network processor, RD
memory and SRAM memory. Each network processor module
supports four interface cards and one MIPS buses interface to
connect with the Central processor module. With MIPS bus,
central processor module initializes the network processor
configuration, manages tables in the network processor memory
and sends/receives packets.
ZXR10 GER08 SMP Panel
SMP provides active/standby switching and 1+1 redundancy
configuration.
SMP panel identifies as RE-SMP.

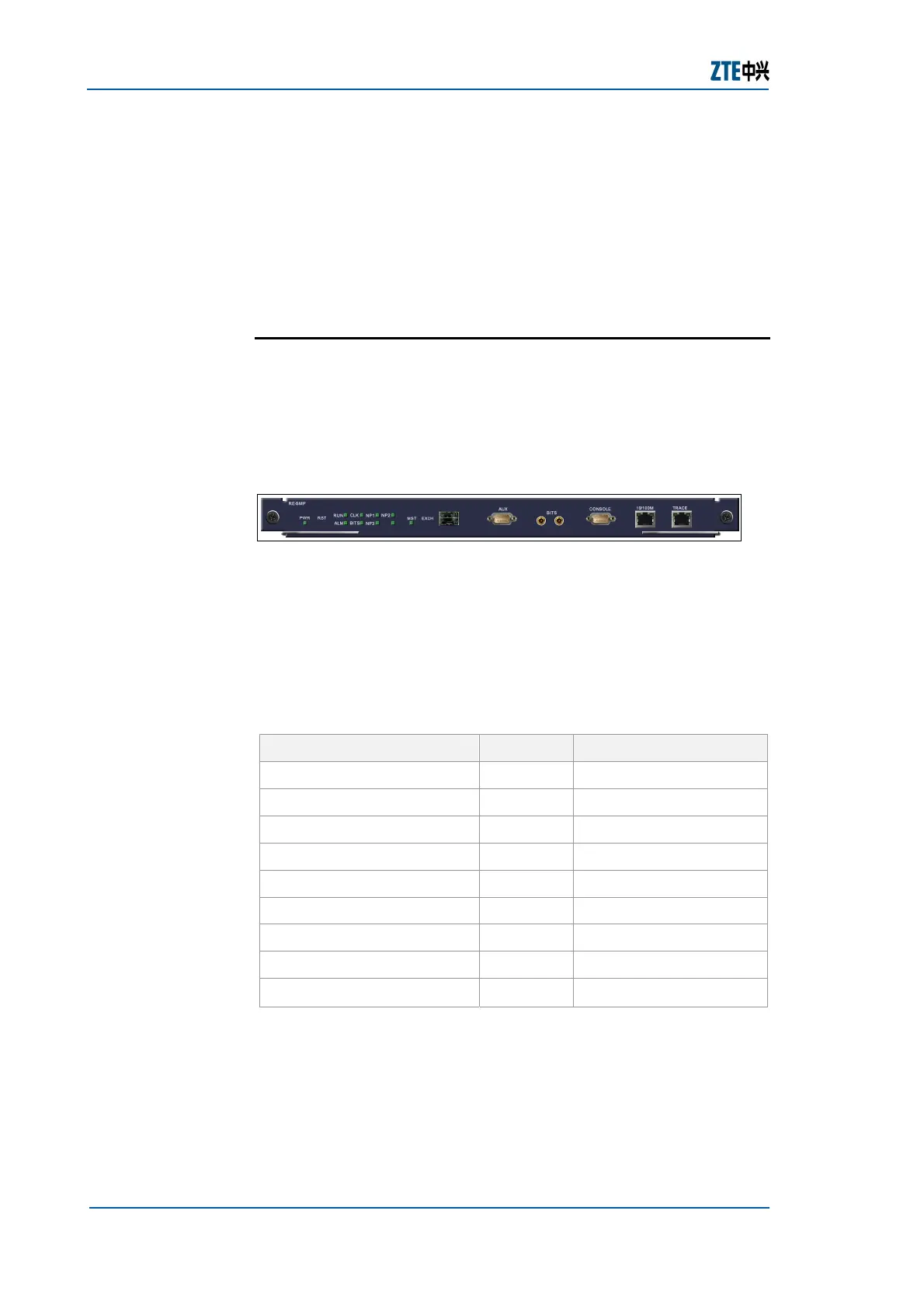

Figure 11 shows SMP panel.
FIGURE 11 ZXR10 GER SMP PANEL
ZXR10 GER02/04 manages through console part by using
terminal emulation software like HyperTerminal. CONSOLE port
is a RS-232 DB9 TO RJ45, which is connected with background
administration terminal through serial cable. Connection cable
contains two ends, one with DB-9 and another is RJ45. Cable
sequence is shown in
Table 11.
TABLE 11 CABLE SEQUENCE
RJ-45 End Signal DB9 End
1 7
2 6
3 TXD 2
4 GND 5
5 GND 5
6 RXD 3
7 4
8 8
1，9
Network
processor
module
Definition
Panel
Console Part
