Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
263

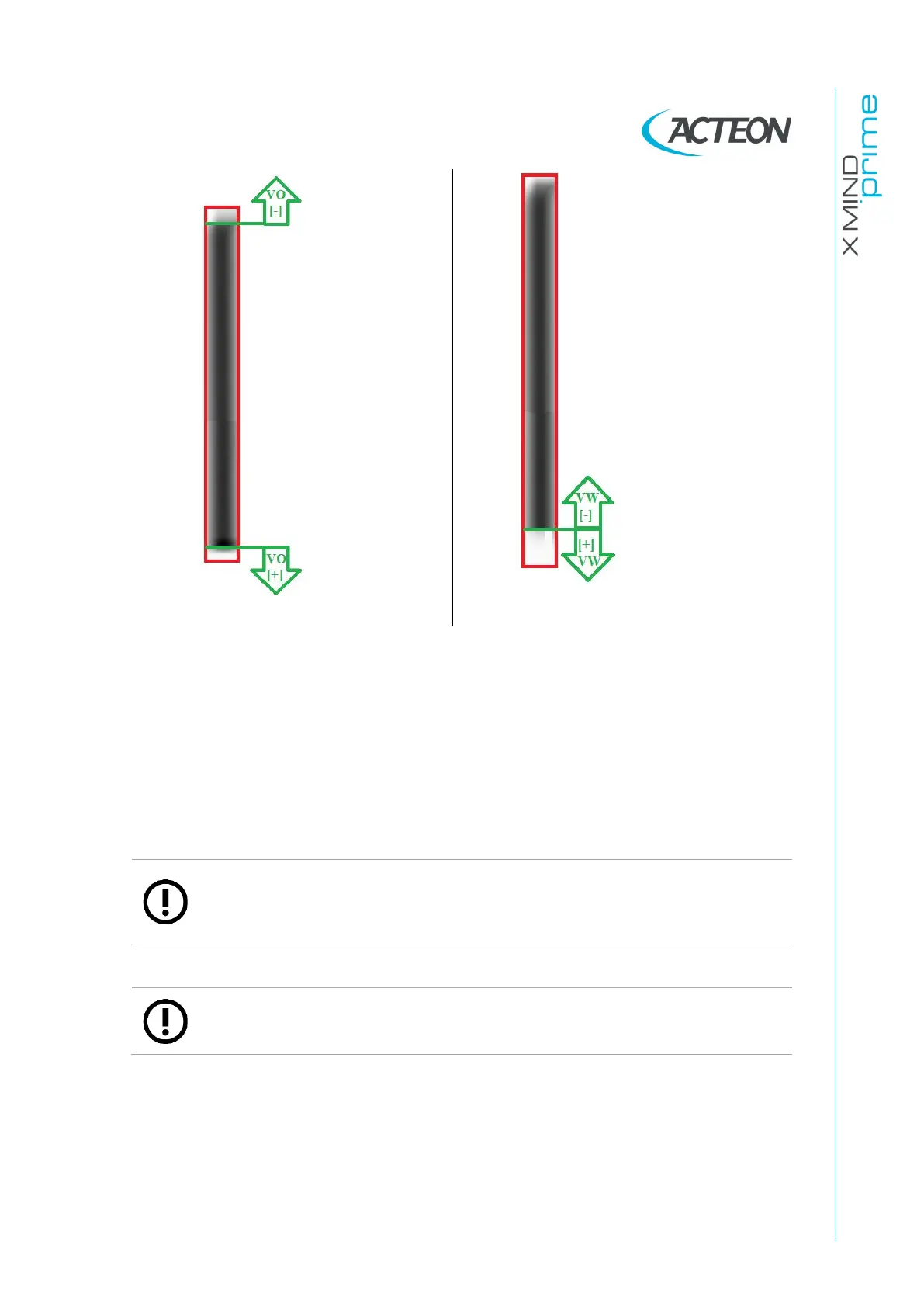

Vertical Offset (VO) convention
Vertical Width (VW) convention
6. Repeat the tests prescribed by paragraph 11.2.9.1 “Panoramic collimator
checks“
7. Once the panoramic collimator has been correctly adjusted, in the tab
“Collimator offsets” of the “Unit setting configuration” window assign to the
“W4 - 3D windows” the same HO, HW, VO and VW offsets values assigned to
the “W0 – Pan windows”
8. Repeat the tests prescribed by paragraph 11.2.9.1
Note
If the collimator has been replaced or adjusted the sensor calibration of
Pano and 3D area ( resolution 1x1 and 2x2 ) must to be performed (refer to
paragraph 10.2).
Note
Perform the following part of the paragraph only in case the “Ceph
collimator checks“ , prescribed by paragraph 11.2.9.1, failed .
9. In the tab “Collimator offsets” of the “Unit setting configuration” window
assign to the “W6 - Ceph windows” the same HO, HW, VO and VW offsets
values assigned to the “W0 – Pan windows”
