11.3.10 Tube head replacement
1. Switch OFF the unit.
2. Remove the tubehead external and internal cover.
3. Remove the Generator board metallic cover:

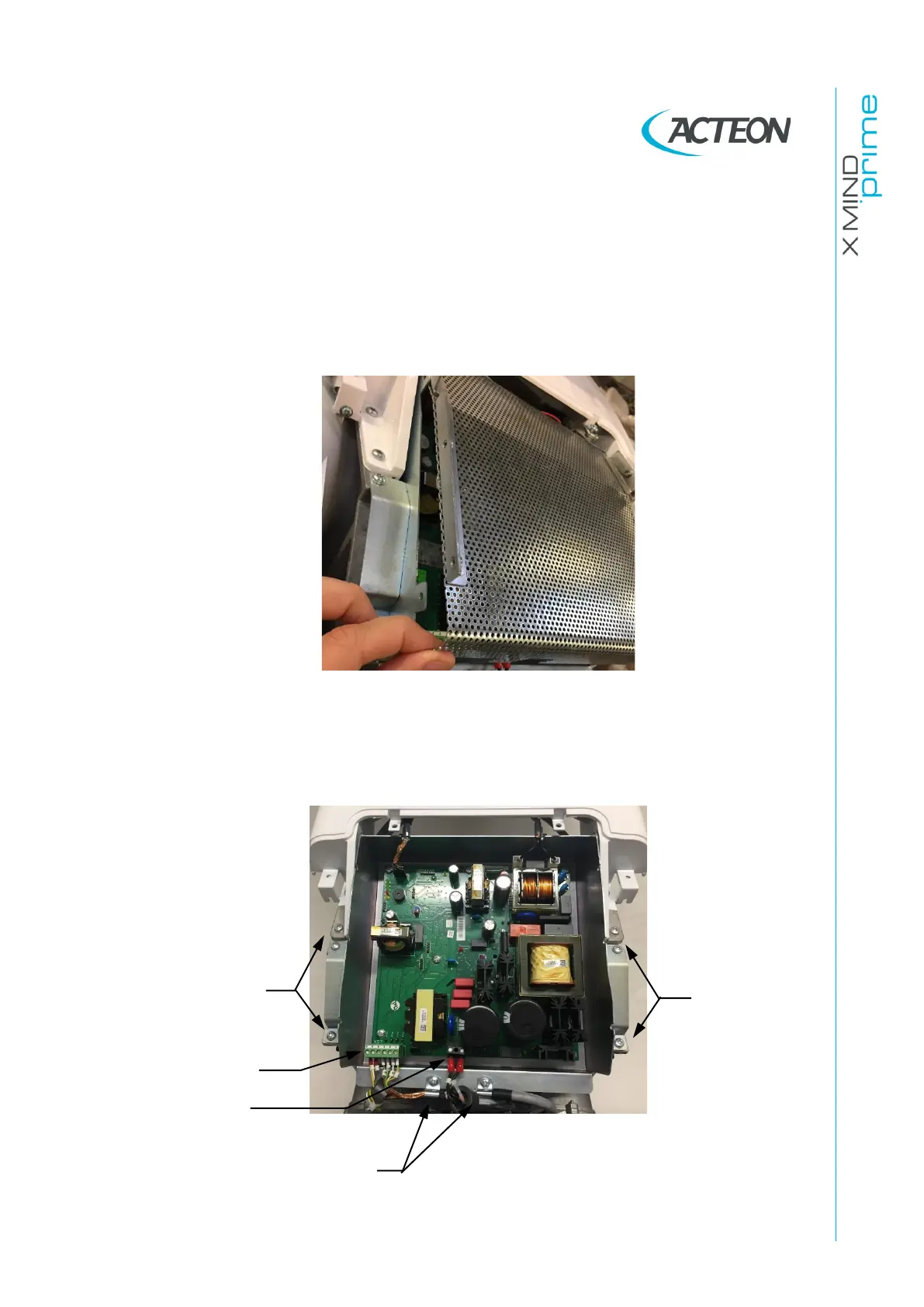

Figure 52
4. Unscrew the cables fixing clamps “A” and then disconnect X57 and X56
connectors from Generator board. Unscrew the 4 generator board support
screws “B”:
Figure 53
A
X57
X56
B
B
