7.2
Fuses installation
X-MIND prime 3D is delivered in an open range voltage configuration which makes
it compatible with both 115 Vac and 230 Vac mains electricity. In order to allow the
correct operation of the unit, it is necessary to install the right fuses according to
the mains electricity of the country of installation.
The system is delivered with 5 bags: 4 bags for fuses F1 and F2 (2 bags related to
installation in 110 – 200 Vac voltage range input and 2 bags for 200-240 Vac
environment) and 1 bag for fuse-holder caps.
The fuses holder is placed on top of X-MIND prime 3D as shown on Figure 34 (to
have access to this part, it is required to remove the top cover as described in the
parts 14 and 15 of the paragraph 7.1):

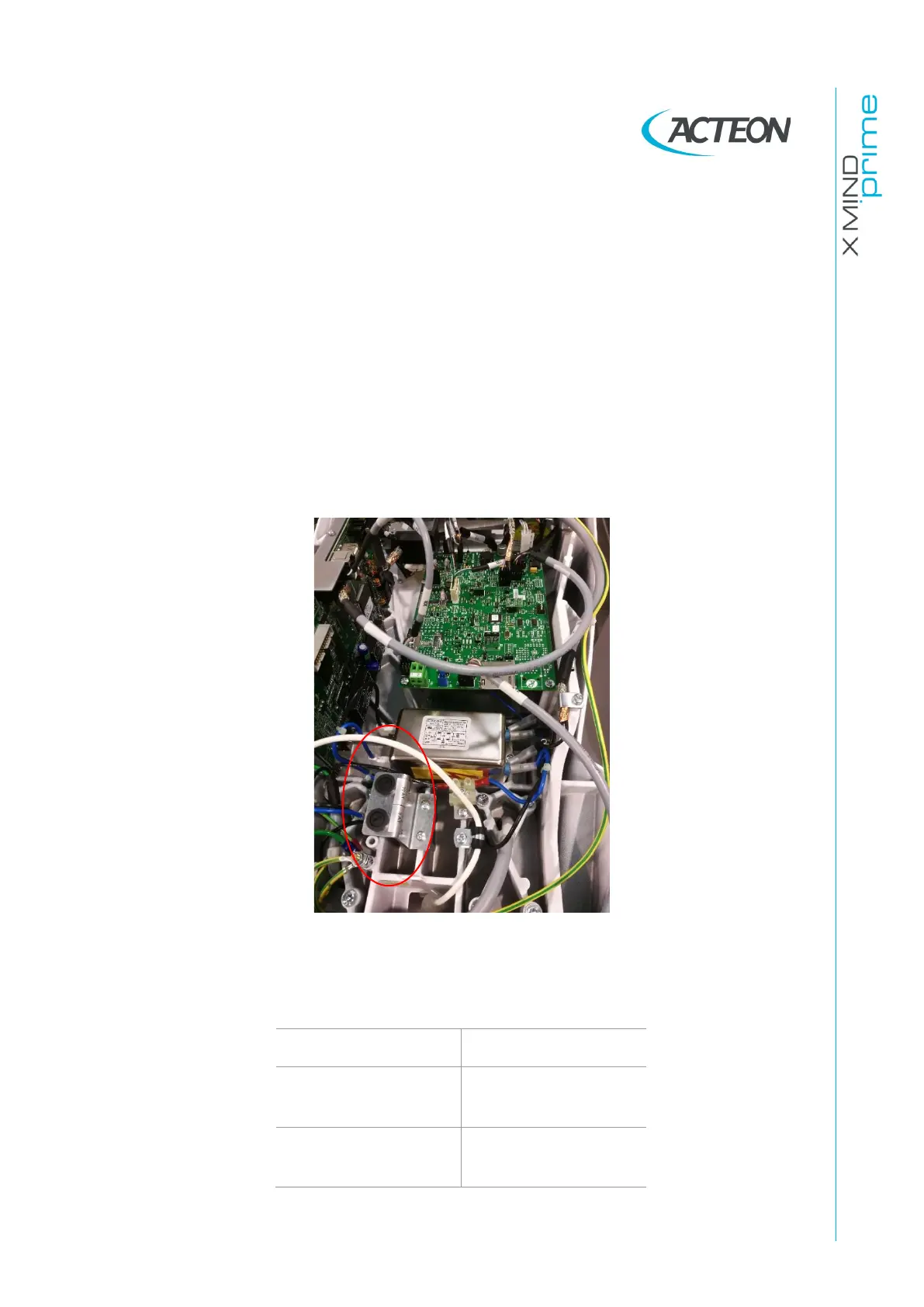

Figure 34
For X-MIND prime 3D unit, the technician shall take care to pick the right fuses
from the bags according to the following table:
