Acteon X-MIND prime 3D ceph - Verification of 3 D Function

Service Manual – Installation
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
116
7.11 Verification of 3D function
1. From the “ACQ” toolbar, select the GUI icon to open the virtual keyboard.
2. Insert the support plate on the chin rest, place the centering cylinder in the
middle of the plate.
Centering cylinder
(P/N 5207900900
Support plate
(P\N 6195170100)

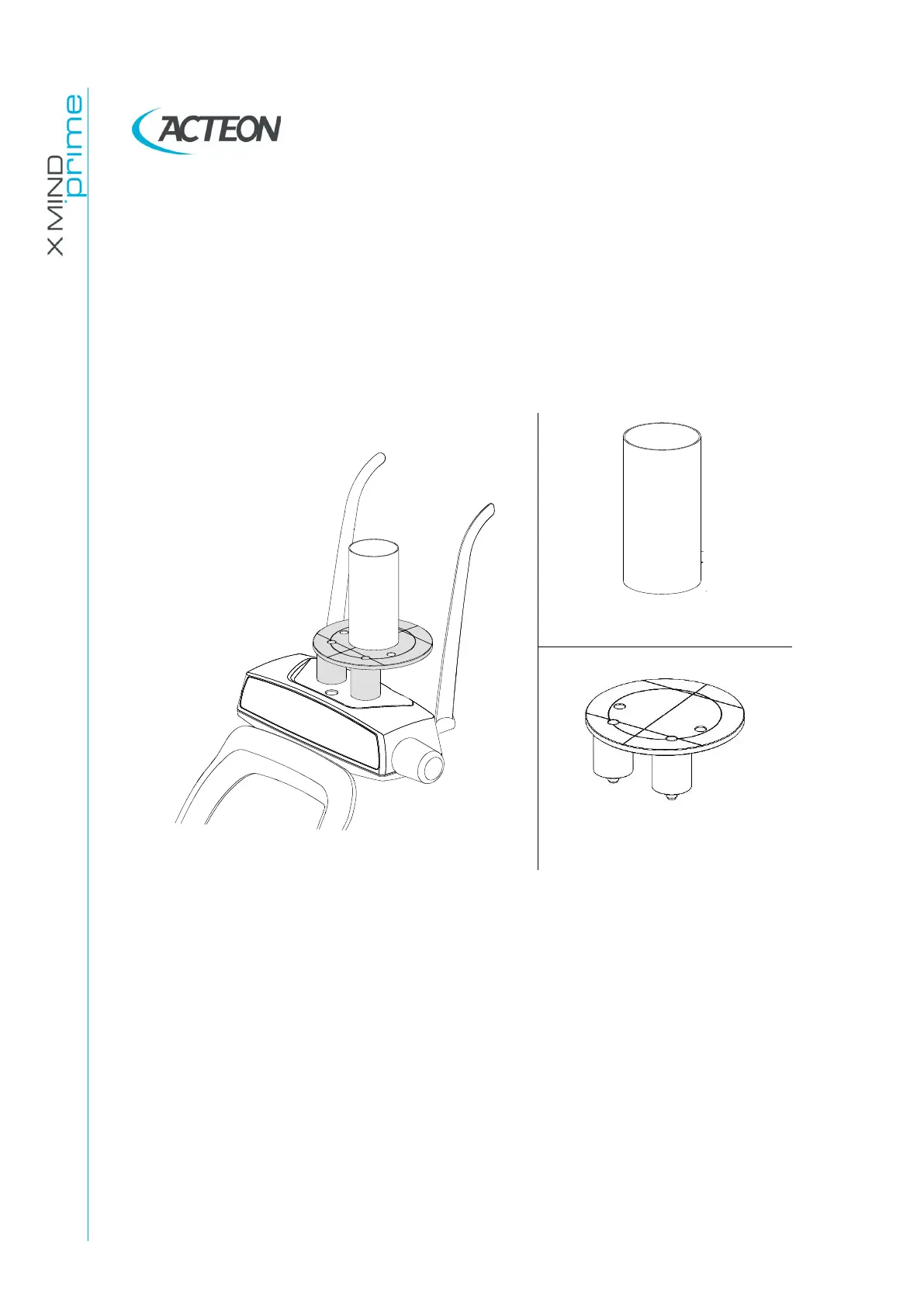

Figure 41: Support plate and centering cylinder positioning
