Acteon X-MIND prime 3D ceph - Rotating Arm

Service Manual – Spare parts
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
353

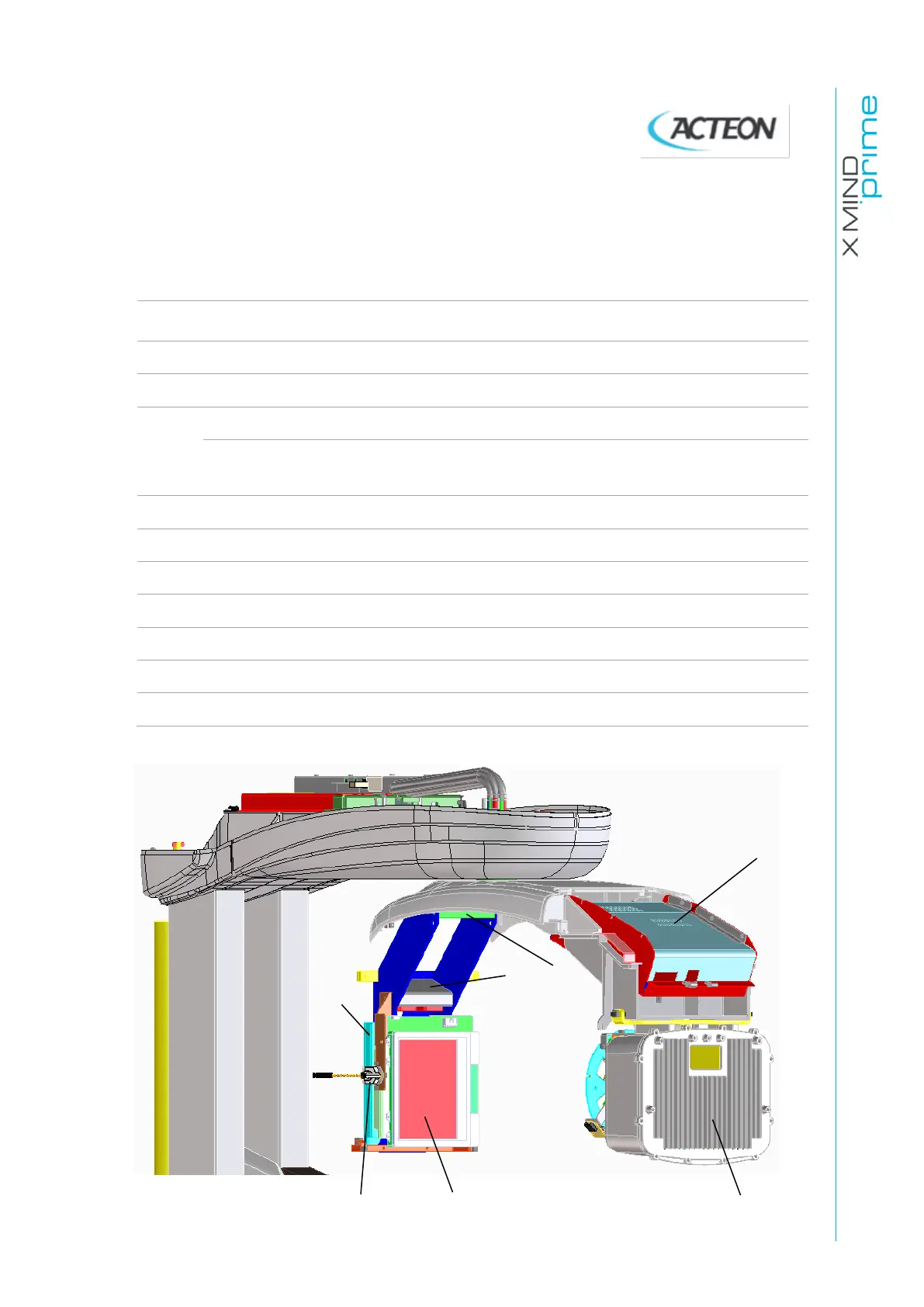

13.2 Rotating arm
Ref.
Order code
Description
Note
1
6604001500
Tubehead assy
2
5804020200
A2 - 3D HF generator and XCU board
3
6604070100
3D Digital sensor assy
including
6204070200 sensor signal cable
J15/X43
4
6604020000
Sagittal laser assy
5
6604070300
3D sensor fan assy
6
6204070100
3D sensor power cable J99 / X42
7
6604020400
Frankfurt laser assy
8
5804070200
A10 - 3D digital sensor power board
12
6204070900
Sensor brake assy
13
6204020300
Hall sensors with cable
5
2
1
3
7
6
4
