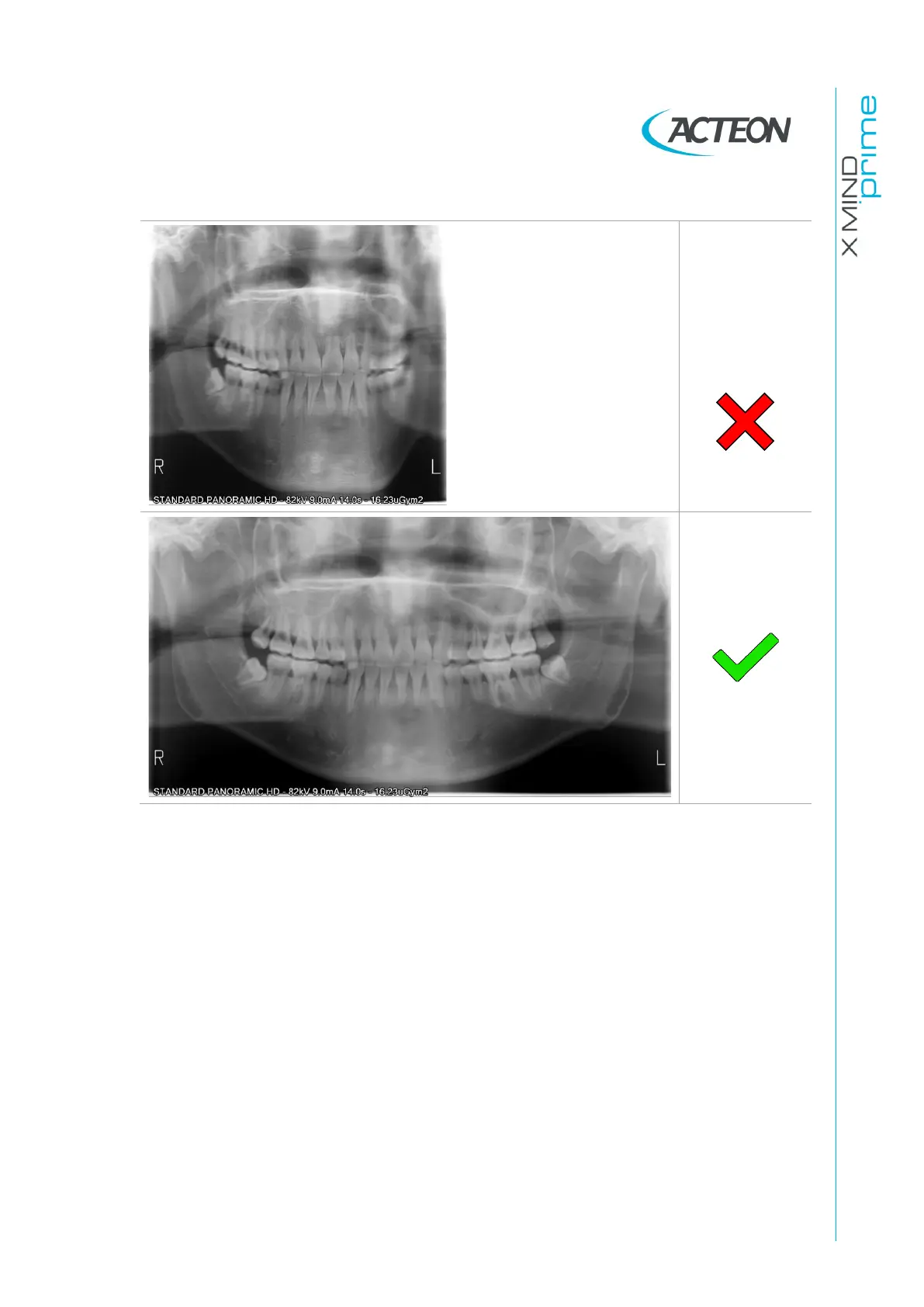

Figure 49
1.
The panoramic acquisition above (
X
) may be indicate an acquisition with less
frame than expected. In this case verify the 3D Sensor Ethernet connections
(cables, junctions, PC network board). Refer to Error E1401 point 1 (see
paragraph 9.2.10.1).
2.
If the error is still present, send the acquired RAW file (see paragraph 11.2.1.5)
to Technical Service.
9.4.4
Asymmetries on the panoramic images
1.
Check the orthogonality of the unit lasers (see User Manual – paragraph 7.3).
2.
Perform the verification of the panoramic function (see paragraph 7.10).
