Acteon X-MIND prime 3D ceph - Mobile Sensor

Service Manual – Spare parts
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
365

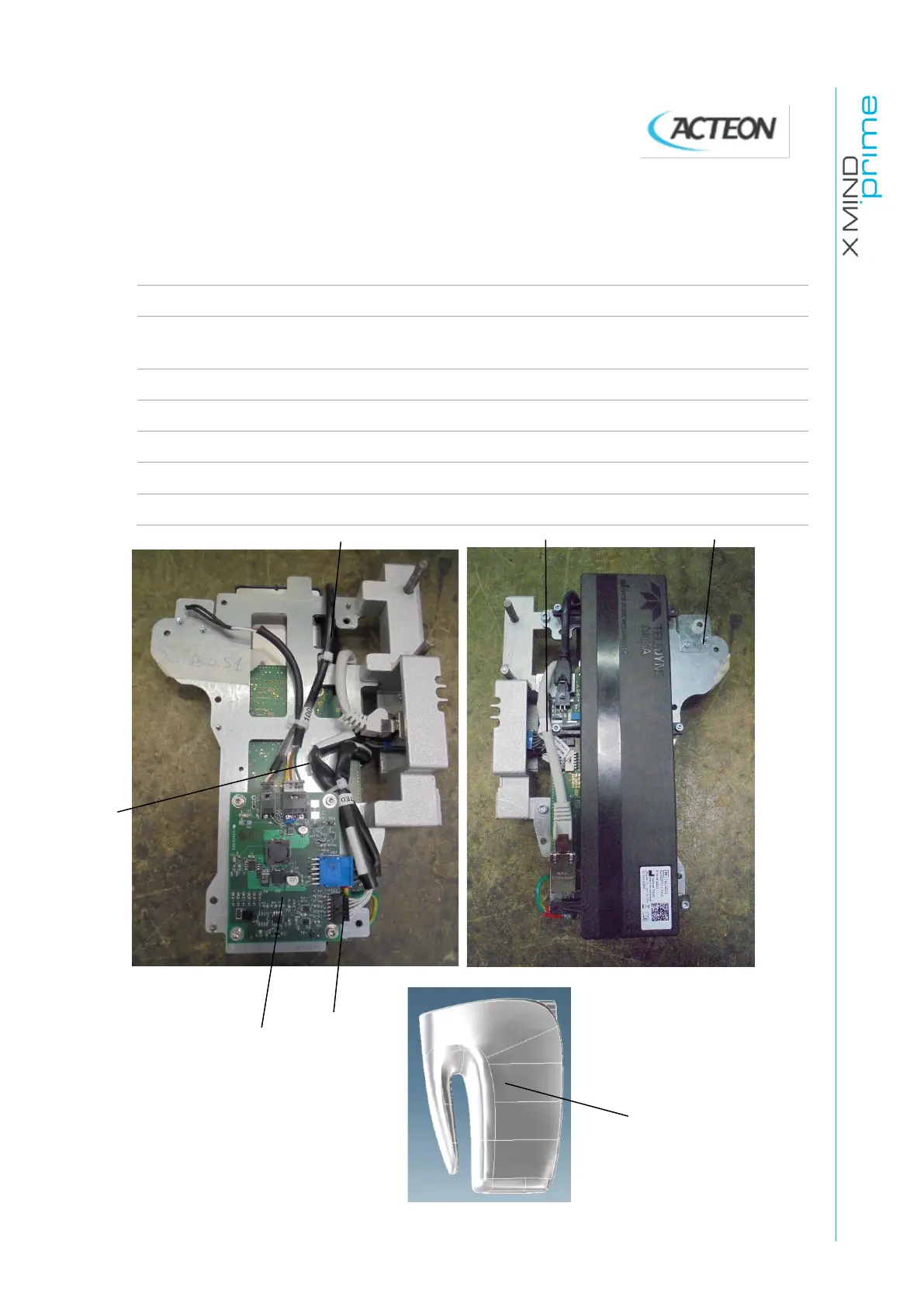

13.8.2 Mobile Sensor
1
5804070400
A14 Power sensor board
2
6204070400
Power & signal pogo pin-sensor
cable X103 / X97
3
6204070500
Signal sensor cable X102 / Sync
4
6204070600
Power sensor cable X100 / Pwr
5
5004070100
Ethernet cable CAT 6
6
6104070800
Sensor led assy
7
7104070600
2D Ceph Mobile sensor Assy
2
4
5
6
7
1
3
