Adjustments

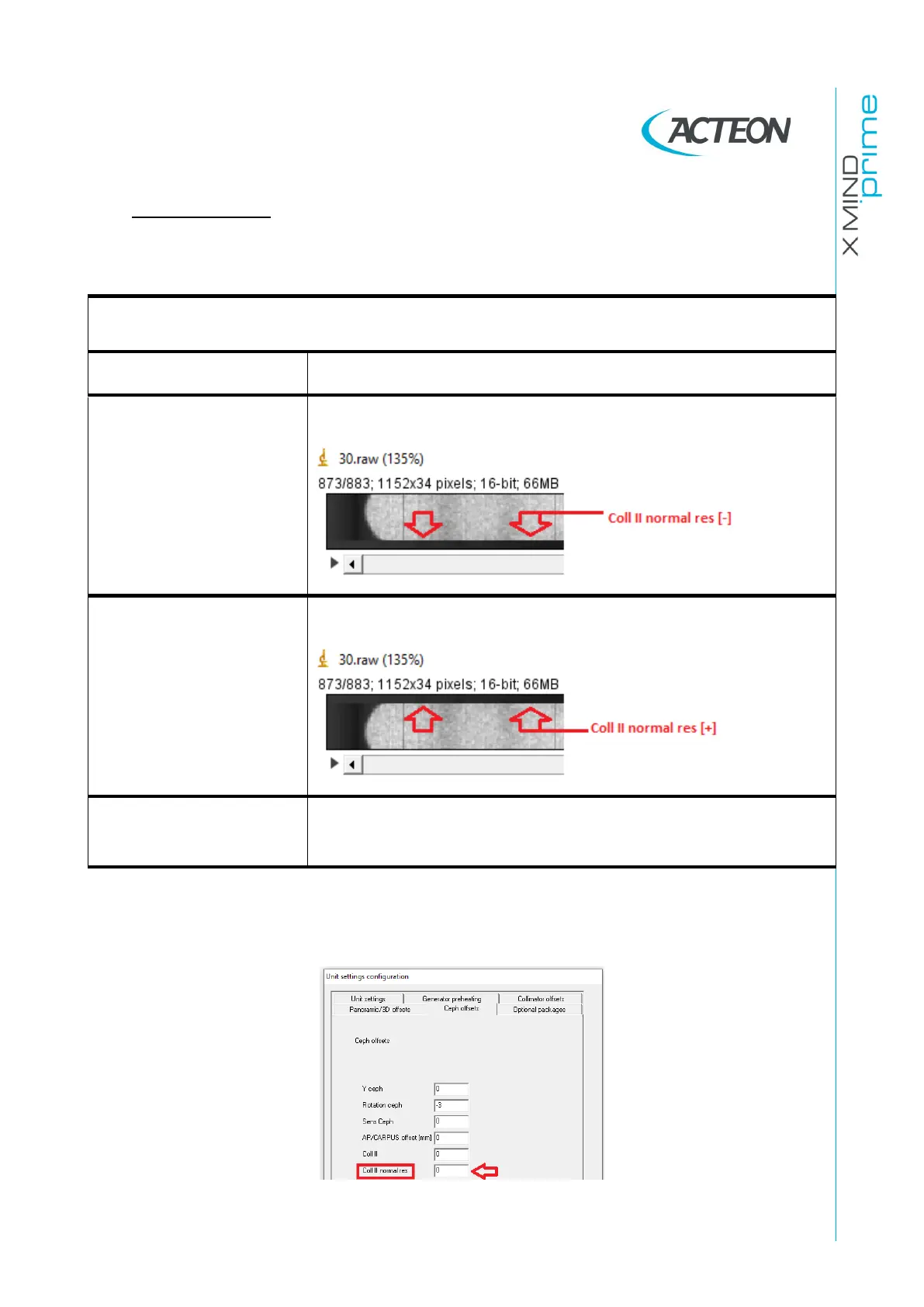

Minimize the secondary collimator shadow on the frame following the criteria reported in
the following table:
HS-Vertical Lines correction
OFFSET
EFFECT ON ACQUIRED FRAME
Coll II normal res [-]*
Reduce the secondary collimator shadow if it is located on BOTTOM
side of the frame
Coll II normal res [+]*
Reduce the secondary collimator shadow if it is located on TOP side of
the frame
Pixel Offset
Conversion
1 Offset Step = 1 pixel
*Note: The symbols [+] and [-] indicate respectively to increase and decrease the offset value
already stored in the Unit Setting configuration window:
