Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
321
4. Remove the upper cover of the unit and the MCU cover to access the
connectors

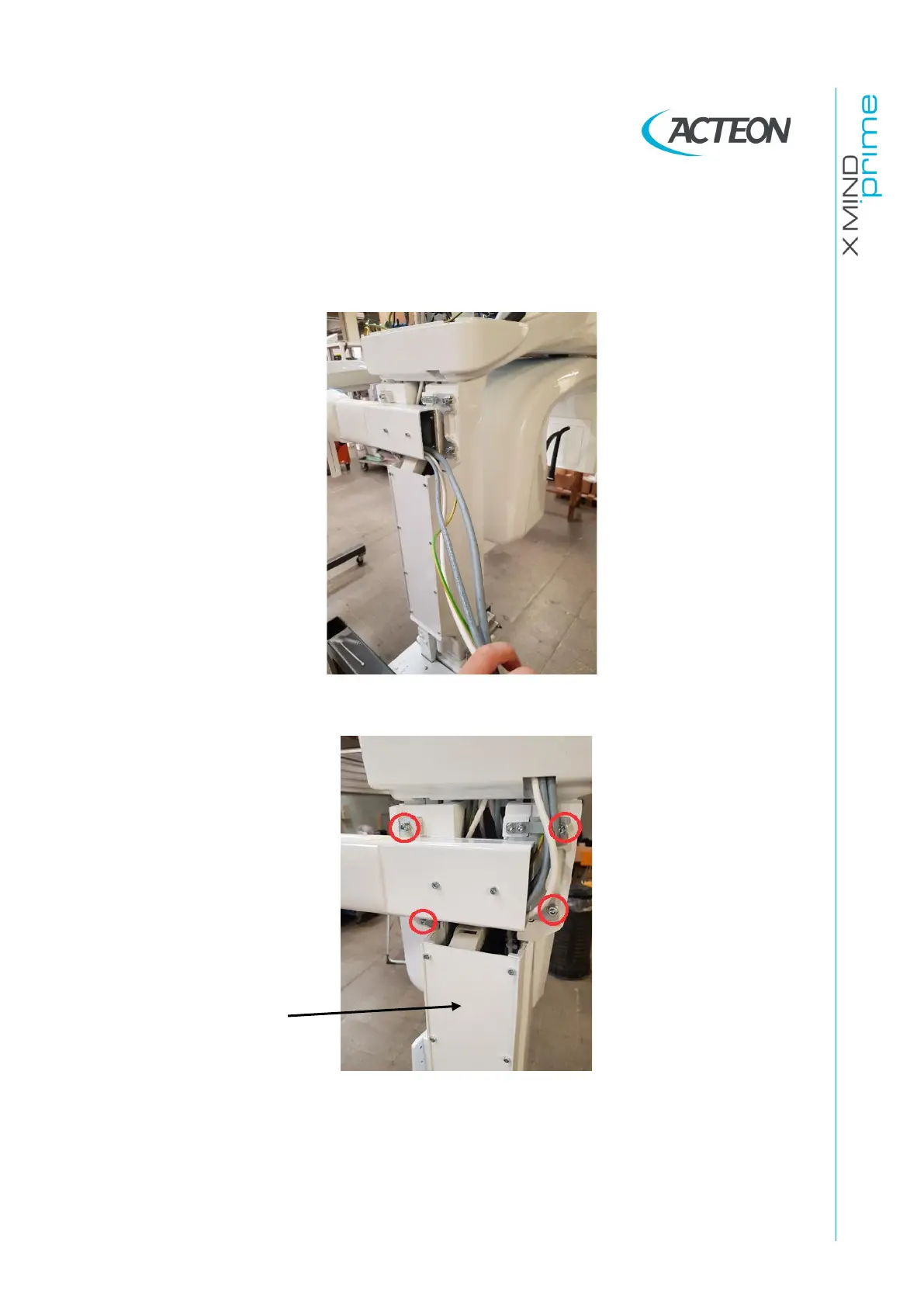

5. Disconnect cables coming from CEPH arm
6. Remove the screws of the following image and open the back cover
.
