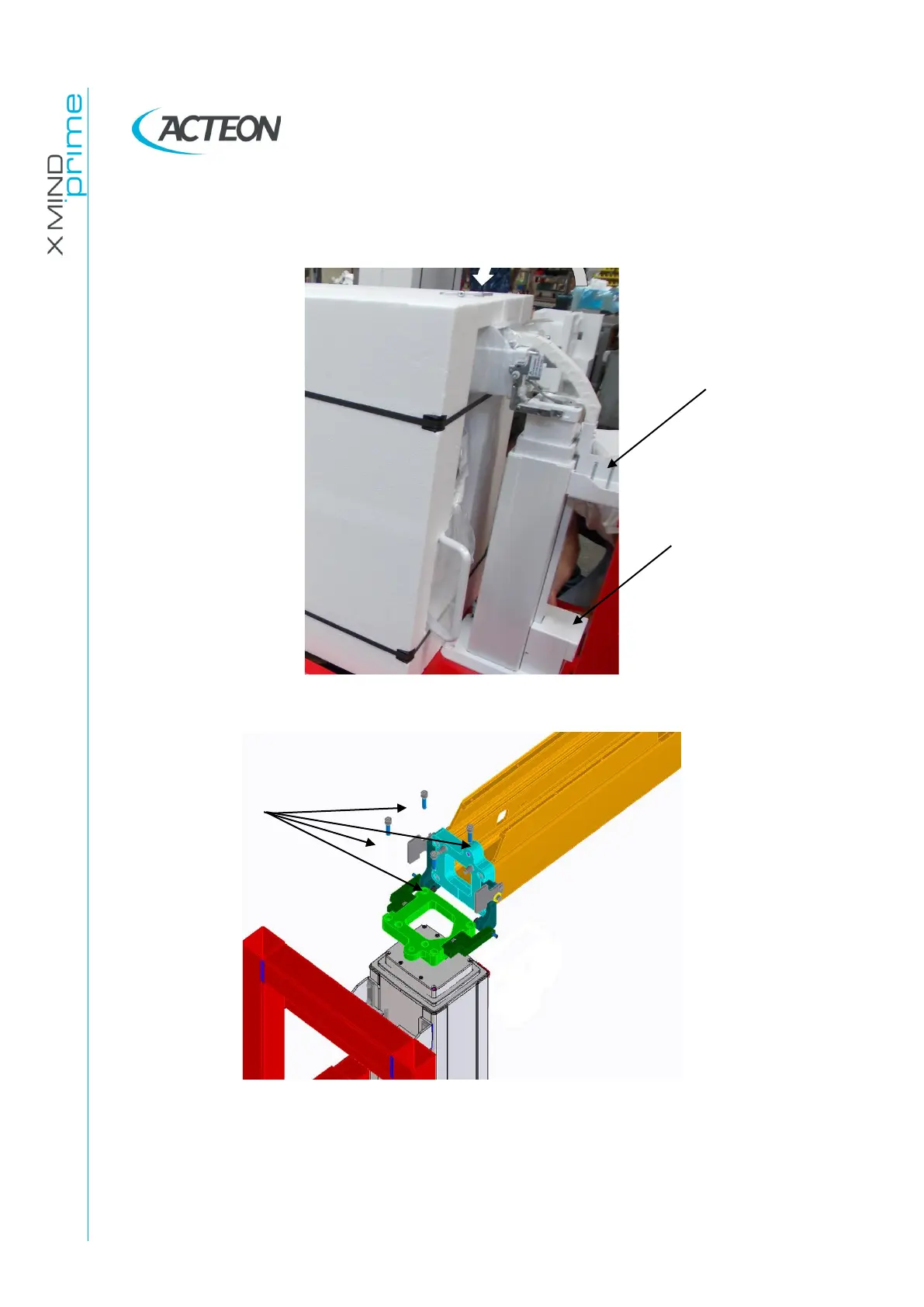

11. Tilt down the upper part of the unit. Disconnect cables and remove the back
plates from the column
12. Remove the top side screws and the cable channel
13. Replace the column and the T Motion control box (in the tilted part of the
column).
14. Once replaced, it is necessary to repeat the complete installation as for
paragraph 7.1.
