ADCMT 6240B User Manual

6240B DC Voltage Current Source/Monitor Operation Manual
4.2.6 MENU Key (Parameter Setting)
4-12
OP/STBY In:
Sets Standby when the signal level changes from LO to
HI. Sets Operate when the signal level changes from HI
to LO.

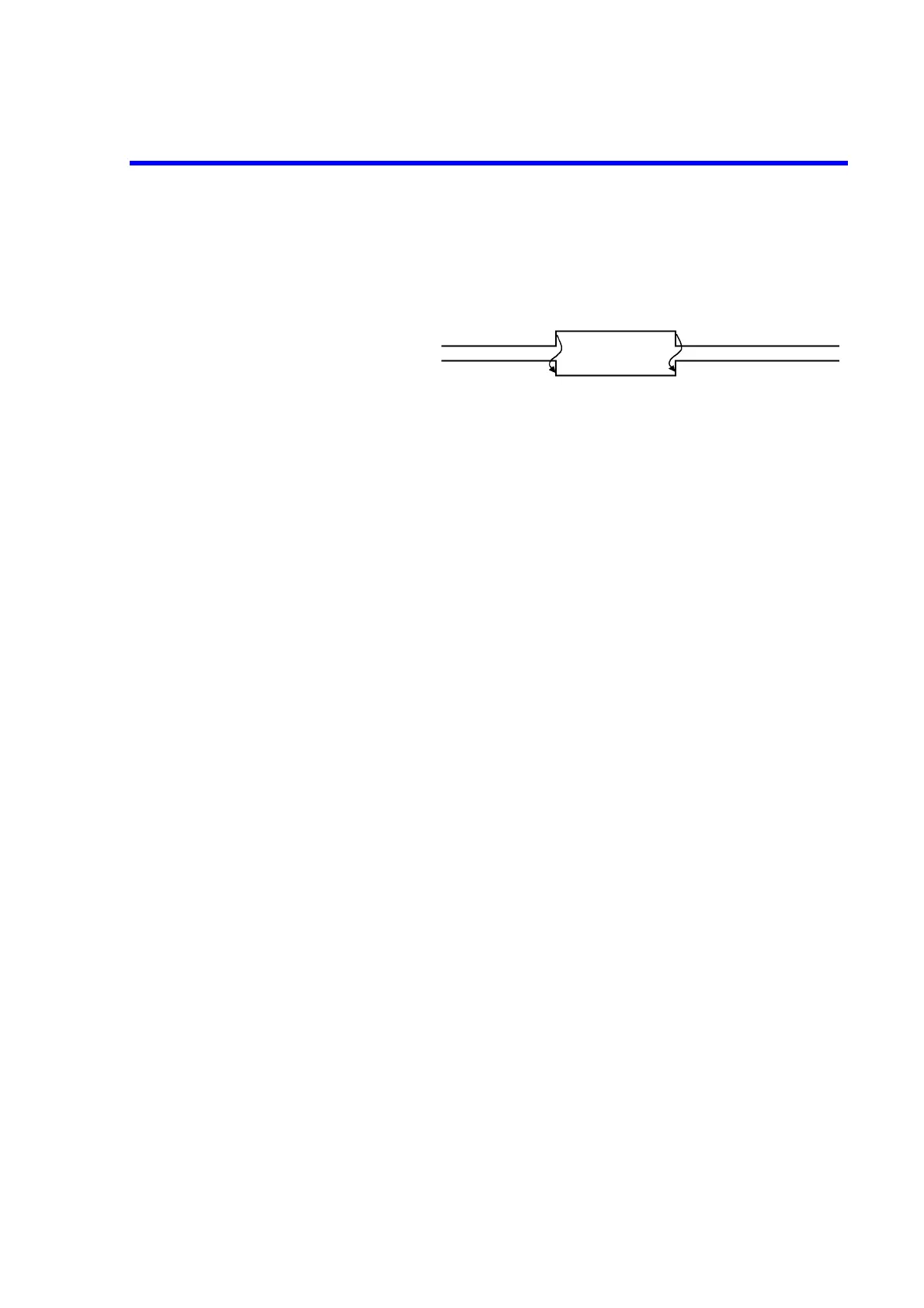

Figure 4-8 OPR/STBY In
Cmple/Sync Selects the output function of external control signals: COM-
PLETE OUT and SYNC OUT.
Meas Front:
Outputs a negative pulse when the measurement starts.
Meas End:
Outputs a negative pulse when the measurement is
completed and the period time ends.
Comp HI:
Outputs a negative pulse when the comparator
calculation result is HI.
Comp GO :
Outputs a negative pulse when the comparator
calculation result is GO.
Comp LO:
Outputs a negative pulse when the comparator
calculation result is LO.
Comp HIorLO:
Outputs a negative pulse when the comparator
calculation result is HI or LO.
Sync Out:
Outputs a negative pulse when the step starts in the
sweep source mode.
Sig Width Selects the output pulse width, 10 µs or 100 µs.
OPR/STBY In signal input
Operate status
Operate or
Suspend
Standby
Operate
