6240B DC Voltage Current Source/Monitor Operation Manual

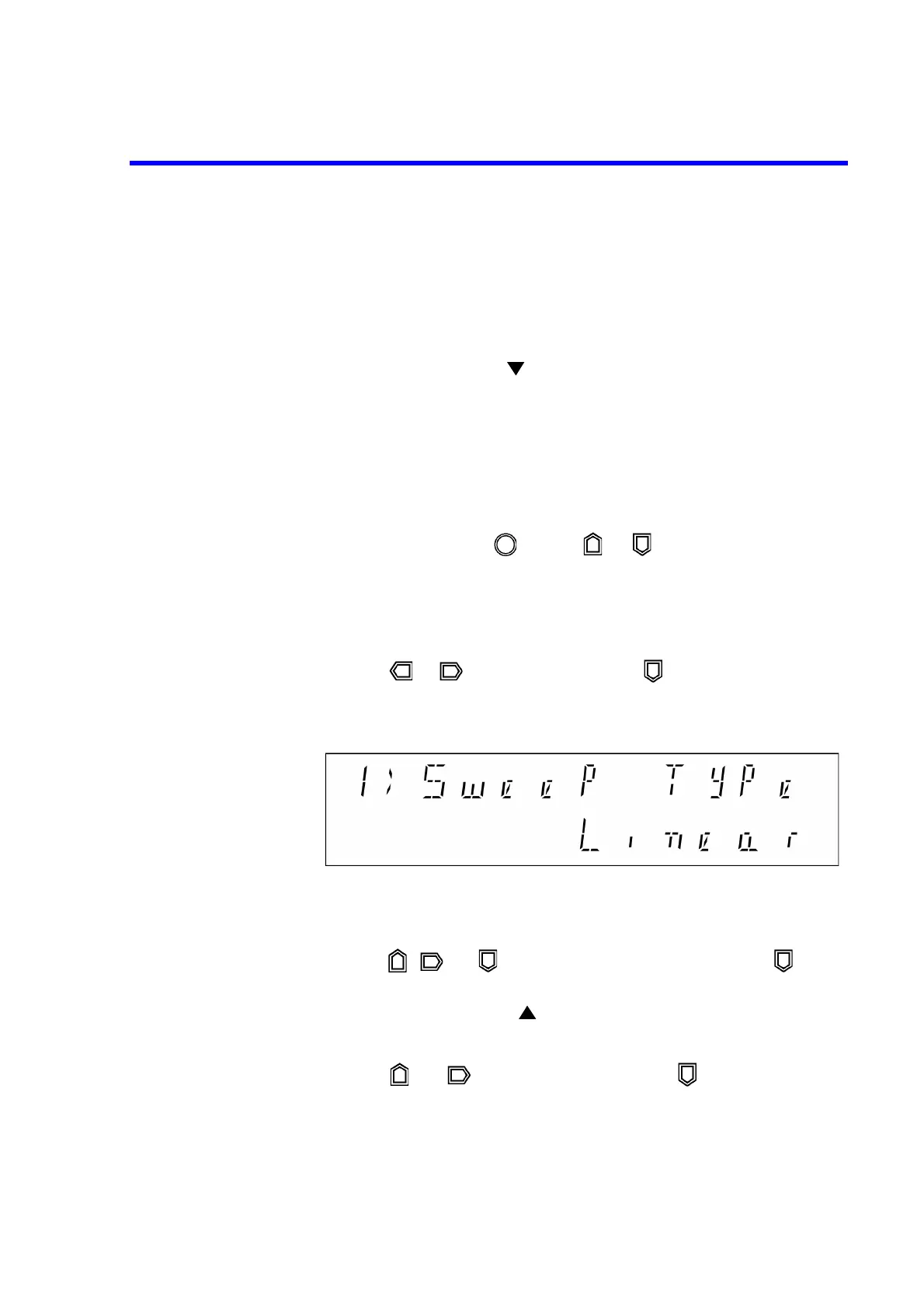

2.2.7 Sweep Measurement
2-43
Preparation
1. Follow the same procedure described in Section 2.2.5, "DC Measurement."
Setting the current limit value
2. Press 123…, 3, 0, UNIT and ENTER in order.
The current limit value is set to ±30 mA.
3. Press LIMIT.
The HOME screen is displayed.
Setting the sweep source mode
4. Press MODE. Rotate or press or to select DC-SWP, and press
ENTER.
The DC indicator and the SWP indicator go ON, showing the DC sweep has been
set.
5. Press MENU.
6. Press or to select B) SWEEP. Press to enter the Select level.
7. Verify that Linear is selected in 1) Sweep Type.
Setting the sweep source voltage
8. Press , and in this order to select 1) Start Value. Press to enter
the Input/Run level.
9. Press 123…, 0, ., 5, UNIT , and ENTER in order.
The star value is set to 0.5 V.
10. Press and to select 2) Stop Value. Press to enter the Input/Run
level.
