6240B DC Voltage Current Source/Monitor Operation Manual
2.2.9 Low-Resistance Measurement
2-54
12. Press and to select 4) Pls Width. Press to enter the Input/Run
level.
13. Press 123..., 2, 0 and ENTER in order.
The pulse width is set to 20 ms.
14. Press and to select 5) Period. Press to enter the Input/Run level.
15. Press 123..., 4, 0 and ENTER in order.
The period time is set to 40 ms.
Setting the integration time
16. Press , and to select E) MEASURE. Press to enter the Input/
Run level.
17. Press to select 2) Integ Time. Press to enter the Input/Run level.
18. Rotate to select 10 ms.
The integration time is set to 10 ms.
19. Press MENU.
The HOME screen is displayed.
Low-resistance measurement
20. Press OPR.
The Operate status is set.

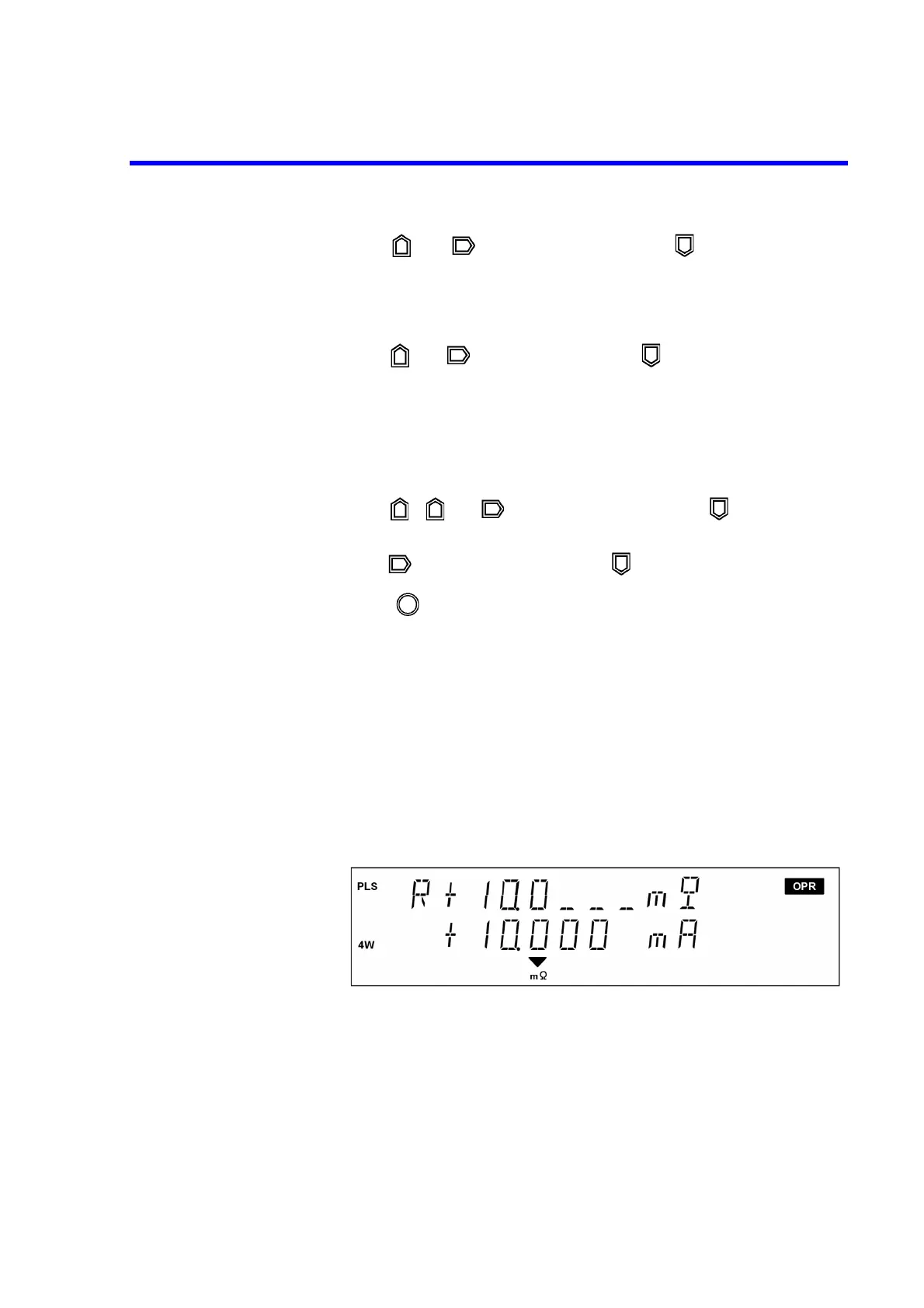

Pulse currents of 10 mA with different polarities are generated and the measured
resistance value is displayed.
